Assembly & Installation Instructions
A121
For Compass Chandelier 19-453000 & 19-453600
Page 2 of 3 _
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 19894 Rev A

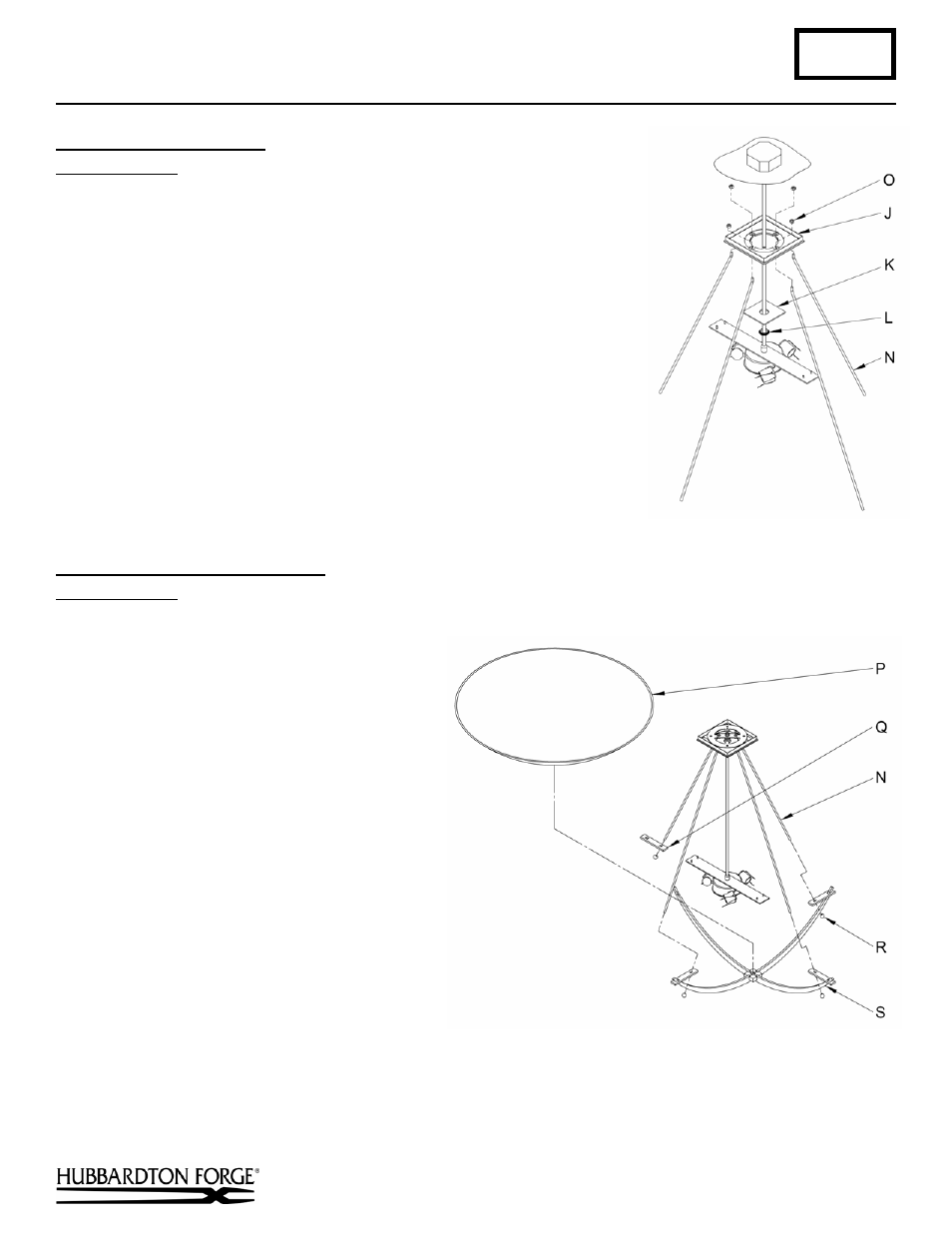

Install the Threaded Rods
(Figure 2)
Component Parts
J Canopy
K Cover
Plate
L Canopy Ring
N Threaded Rod (4)
O Hex Nut (4)
1. Slip bent end of threaded rod (N) through slots in canopy (J).
2. Thread hex nut (O) onto threaded rod (N) until snug against inside
of canopy (J).
3. Slide fixture canopy (J) and cover plate (K) against ceiling, and
secure with canopy ring (L). Be sure cover plate is aligned square
with canopy.
(Figure 3)
(Figure 2)
To Install Glass Frame and Glass (Figure 3)
Component Parts
N Threaded Rod (4)
P Glass
Q Tab
R Threaded Ball (4)
S Glass
Frame
1. Slip tabs on glass frame (S) onto three
threaded rods (N) and attach with threaded
ball (R).
2. Slip glass (P) into glass frame (S) so it rests
below the three tabs.
3. Slip tab (Q) onto last threaded rod (N) and
slide onto glass frame (S).
4. Thread threaded ball (R) onto threaded
rod (N).
5. Install light bulbs (not provided).
(continued)
