Assembly & Installation Instructions
A216
For Ellipse Large Five Light Pendant 13-7527 & 13-7527E Page 2 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 22885
To Install to Ceiling
(Figures 3 thru 6)
Component Parts
C Support Cable
G Canopy Assembly
H Fixture Assembly
I Ceiling Bracket
J Lag Screws (4)
K Cable Gripper (2)
L Safety Nut (2)
M Flat Head Screws
(2)
N Wireway Cover
O Barrel Knobs (2)
P Ground Screw
Q Cupped Washer
Caution: Be sure power is off at the main breaker box prior to
installation.

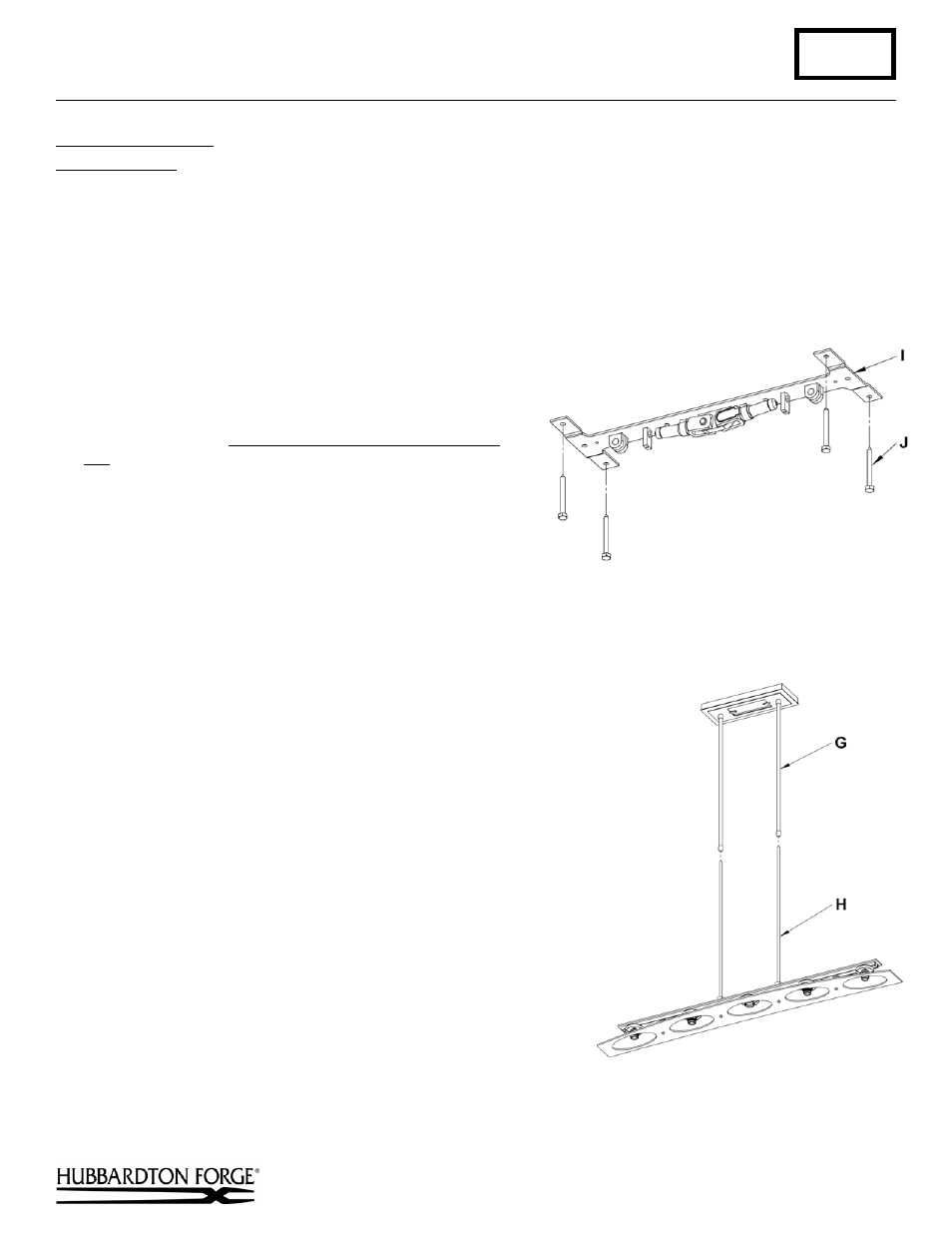

1. Using four lag screws (J) attach ceiling bracket (I) to a
structural member in the ceiling, centering the crossbar over
the outlet box. We've supplied lag screws with your fixture;
however, different materials and/or construction methods
may require different fasteners. If in doubt, contact a
qualified electrician. Do not attach crossbar directly to outlet
box (Figure 3).
2. Thread wires and support cable (C) from the fixture
assembly (H) through the canopy assembly (G) (Figure 4).
3. Loosen both safety nuts (L) on cable grippers (K). It is not
necessary to completely remove them (Figure 5).
4. Raise fixture and push support cables (C) into cable grippers
threading them through ceiling bracket (I) as shown in figure 5
until cables are tight and have no slack. Push cables through
grippers until desired fixture height is accomplished.
5. Raise canopy assembly (G) to ceiling making sure the fixture
pipes and canopy pipes over lap. Fasten to ceiling bracket (I) with
flat head screws (M).
6. Once support cable is at the correct height, excess cable behind
the gripper can be cut off.
7. Tighten safety nuts (L).
8. Using suitable wire connectors (not provided) connect fixture
wires to supply (white to white and black to black, and bare
copper to bare copper or green supply). Ground the ceiling
bracket (I) using the green ground screw (P) and cupped washer
(Q) to secure a pigtail lead to the bracket. Push wires back into
outlet box.
Caution: Make sure wire connectors are twisted on securely, and
no bare wire is exposed.
9. Install the wireway cover (N) and secure with barrel knobs (O)
(Figure 6).
10. Refer to instructions following to install glass.
(continued)
(Figure 4)
(Figure 3)
