Installation & Assembly Instructions
B121
Exos Wave Three-Light Wall Sconce 20-7873
Page 2 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 19912 Rev B
5. Carefully tuck all wires behind the fixture assembly and inside the wall mount bracket and place the fixture over
the bracket so that the screw in the top of the bracket go through the hole in the top of the fixture. Secure the
fixture by threading the remaining black #8 screw up through the hole in the bottom of the fixture and into the
mounting bracket.
6. Install light bulb (Figure 2, J). Be careful not to touch bulb with bare hands; oil from the hands will dramatically
reduce bulb life.
7. Thread bulb shield (Figure 2, K) onto Socket. Future bulb changes may be accomplished by snapping glass bulb
shield on and off rather than unthreading the holder
8. Restore electricity at main breaker.

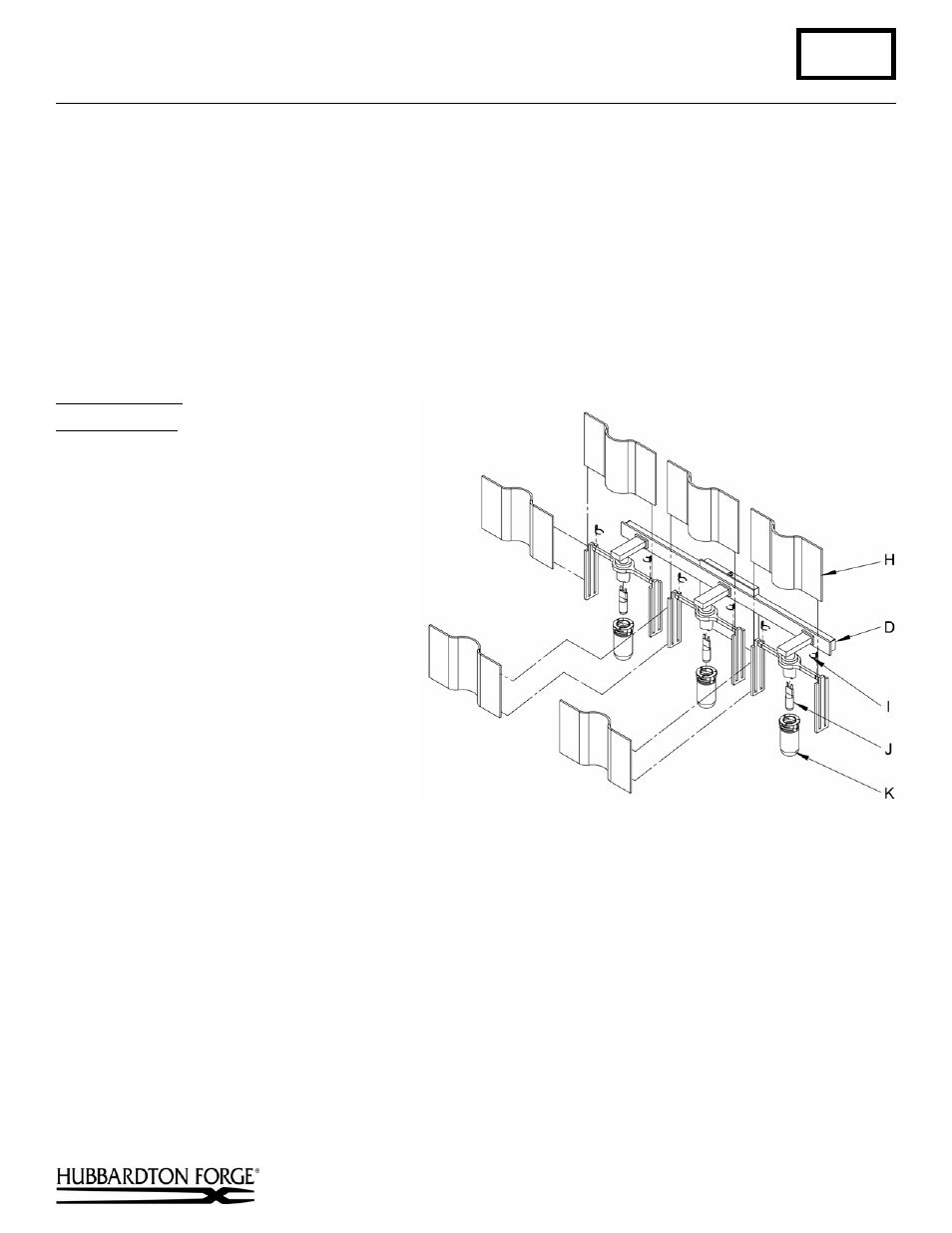

To Install Glass (Figure 2)
Component Parts
D Fixture
H Glass
(6)
I Metal Glass Clip (6)
J Bulb (3)
K Bulb Shield (3)
1. Mount metal glass clip (I) into notches on
fixture (D).
2. Slide glass (H) into back slots in fixture
from the side (start from left or right side
not the center).
3. Slide front glass (H) into fixture from the
top.
4. Align the glass until it protrudes equal
amounts on both sides of fixture.
(Figure 2)
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
