Assembly & Installation Instructions
B265
Ondrian Wall Sconce 20-7801 & 20-7805 Page 2 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 27214 B

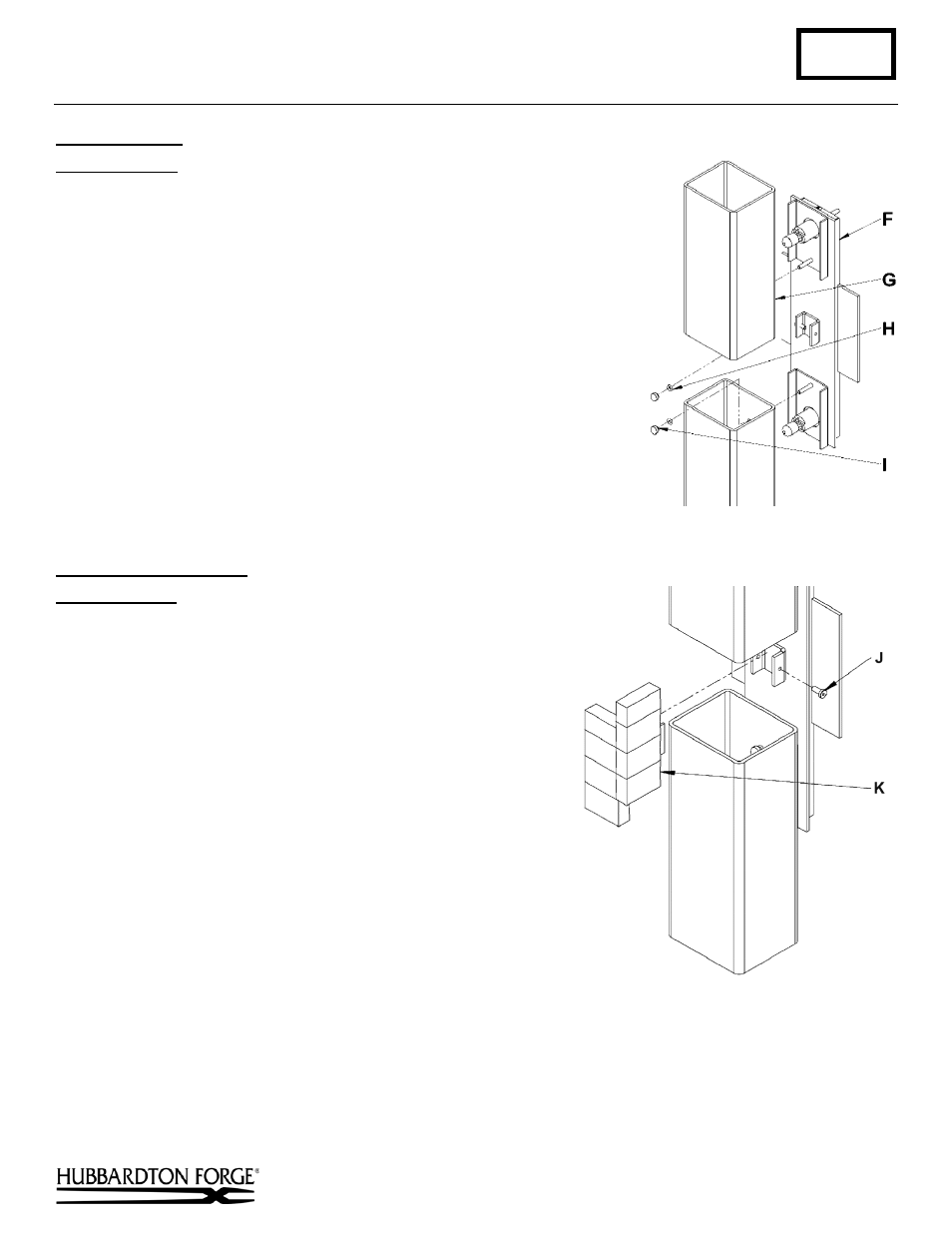

To Install Glass (Figure 2)
Component Parts
F Fixture
G Glass (2)
H Rubber O-Ring (2)
I
Knurled Ball (2)
1. Align glass (G) so that the bulb passes through the large hole and
threaded rod passes through smaller hole
2. Slide glass (G) over light bulbs until it come in contact with the
fixture (F).
3. Slide rubber o-ring over threaded rod until tight against glass
4. Hold the glass in place while threading the knurled ball (I) onto the
threaded rod until tight.
To Install Center Badge (Figure 3)
Component Parts
J #8 Black Hex Head Screw
K Center Badge Assembly
1. Remove screw (J) from glass mounting bracket. Save for later
use. Screw is shipped installed in bracket.
2. Slide center badge assembly (K) onto the mounting bracket until
it touches
Align small threaded hole in the mounting bracket with hole in
center badge assembly (K).
3. Attach center badge assembly (K) to mounting bracket with
screw (J). Tighten with provided Allen wrench.
Note: The center badge can be mounted as shown or in reverse.
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
Figure 3
Figure 2
