Installation Instructions
B160
For Three Light Sconce 20-6603 & 20-6603F Page 2 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 22270
(Figure 2)
(Figure 3)

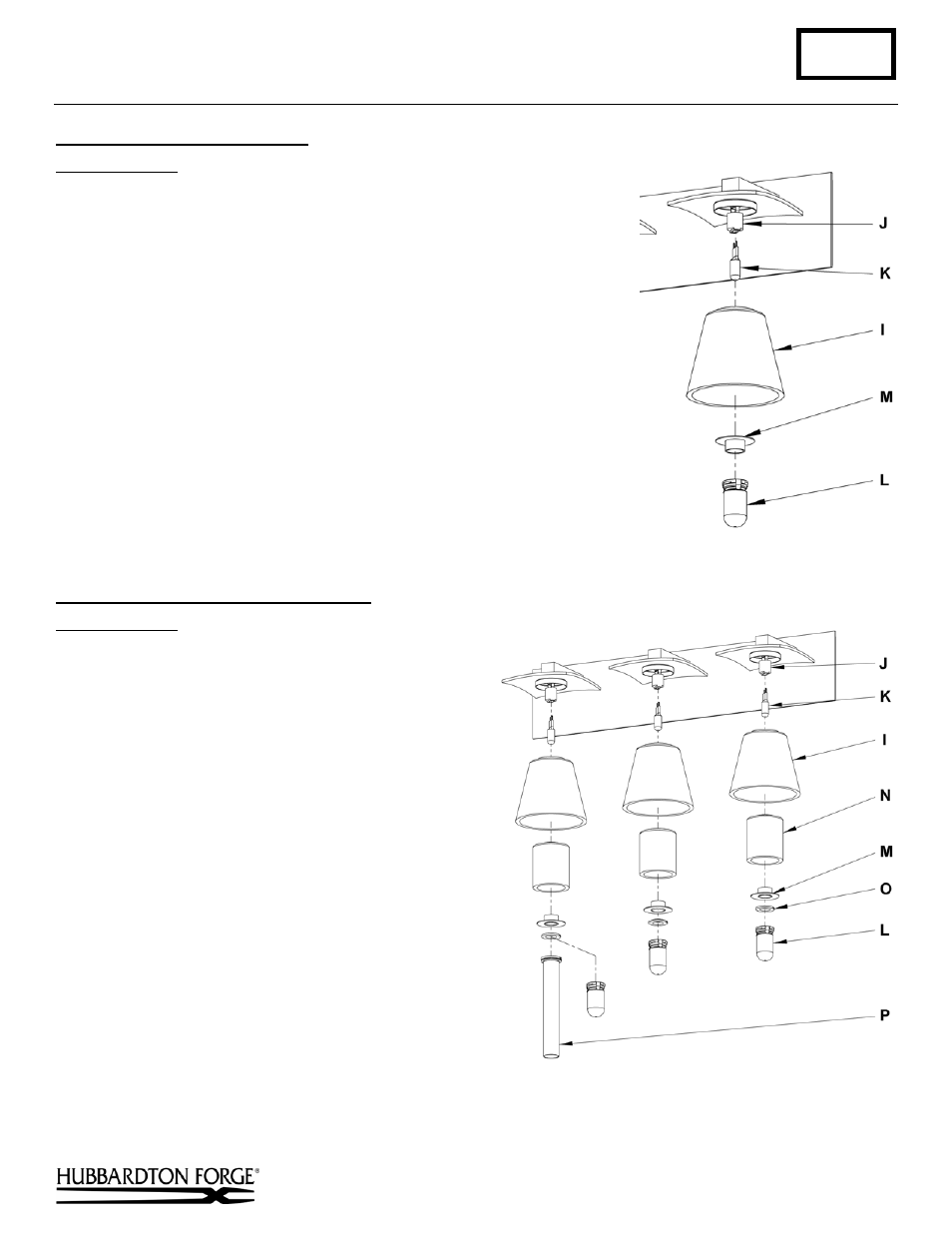

To Install Glass with G9 Option (Figure 2)
Component Parts
I Glass (3)
J Socket (3)
K Bulb (Included) (3)
L Bulb Shield (3)
M Spacer
1. Install light bulb (K). Be careful not to touch bulb with bare hands; oil
from the hands will dramatically reduce bulb life.
2. Slip glass (I) over socket (J).
3. Place spacer (M) on bulb shield (L) (note orientation of spacer).
4. Thread bulb shield (L) onto socket (J) (be careful not to over tighten).
Future bulb changes may be accomplished by snapping glass portion of
barrier on and off rather than unthreading the holder.
5. Restore electricity at main breaker.
To Install Double Glass with G9 Option (Figure 3)
Component Parts
I Glass (3)
J Socket (3)
K Bulb (Included) (3)
L Bulb Shield (3)
M Spacer
(3)
N Inner Glass (3)
O Retaining Ring (3)
P Retaining Ring Tool
1. Install light bulb (K). Be careful not to touch bulb
with bare hands; oil from the hands will
dramatically reduce bulb life.
2. Slip glass (I), inner glass (N) and spacer (M) (note
orientation of spacer) over socket (J).
3. Thread retaining ring (O) onto socket (J) using
provided retaining ring tool (P).
4. Thread bulb shield (L) onto socket (J) (be careful
not to over tighten). Future bulb changes may be
accomplished by snapping glass portion of barrier
on and off rather than unthreading the holder.
5. Restore electricity at main breaker.
(continued)
