Installation Instructions
B159
For Wall Sconce 20-6601 & 20-6601F Page 2 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 22269 Rev A

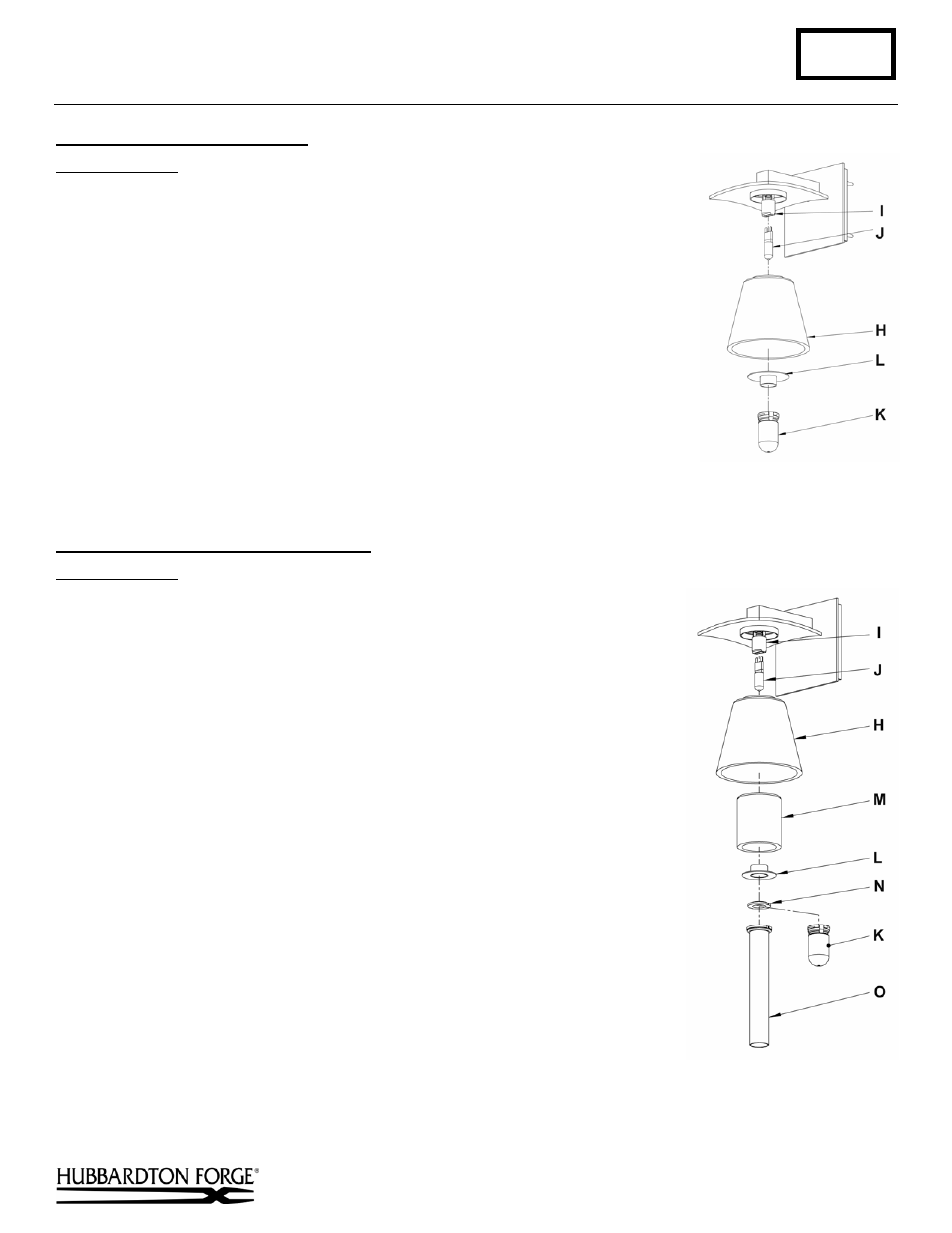

(Figure 2)
(Figure 3)
To Install Glass with G9 Option (Figure 2)
Component Parts
H Glass
I Socket
J Bulb
(Included)
K Bulb Shield
L Spacer
1. Install light bulb (J). Be careful not to touch bulb with bare hands; oil from the
hands will dramatically reduce bulb life.
2. Slip glass (H) over socket (I).
3. Slip spacer (L) over socket (I) so it rests on glass (H) (note orientation of spacer).
4. Thread bulb shield (K) onto socket (I) (be careful not to over tighten). Future bulb
changes may be accomplished by snapping glass portion of barrier on and off
rather than unthreading the holder.
5. Restore electricity at main breaker.
To Install Double Glass with G9 Option
(Figure 3)
Component Parts
H Glass
I Socket
J Bulb
(Included)
K Bulb Shield
L Spacer
M Inner Glass
N Retaining Ring
O Retaining Ring Tool
1. Install light bulb (O). Be careful not to touch bulb with bare hands; oil from
the hands will dramatically reduce bulb life.
2. Slip glass (H), inner glass (M) & spacer (L) (note orientation of spacer) over
socket (N).
3. Thread retaining ring (N) onto socket (I) using provided retaining ring
tool (O).
4. Thread bulb shield (K) onto socket (I) (be careful not to over tighten). Future
bulb changes may be accomplished by snapping glass portion of barrier on
and off rather than unthreading the holder.
5. Restore electricity at main breaker.
(continued)
