Installation Instructions
B205
For Axis Sconce 20-6401 & 20-6403 Page 2 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 24450
To Install Bulb and Front Panel (Figures 2 & 3)
Component Parts
D Fixture Assembly
H Socket
I Bulb
(Included)
J Bulb Shield
K Front Plate (12-6401 is glass, 12-6403 is a forged plate)
1. Install light bulbs (I). Be careful not to touch bulb with bare hands; oil from the hands will dramatically reduce
bulb life.
2. Thread bulb shield (J) onto socket (H) (bulb shield will only thread on 3 to 4 threads). Future bulb changes may be
accomplished by snapping glass portion of barrier on and off rather than unthreading the holder.
3. Slip plate or glass (K) into tabs of fixture assembly (D) aligned so equal amounts protrude on both sides.
To Install Optional Diffuser (Sold Separately) (Figure 4)
Component Parts
E #8 Black Screws
L Diffuser
M Hex Nut (2)
1. Install diffuser (L) onto screws (E) protruding through top of fixture. Note:
Due to the diffuser being aluminum and the amount of holes punched it
might have a slight arc. Mount it so the outer edges are curled down.
2. Install two hex nuts (M) on screws (E) and tighten until snug.
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.

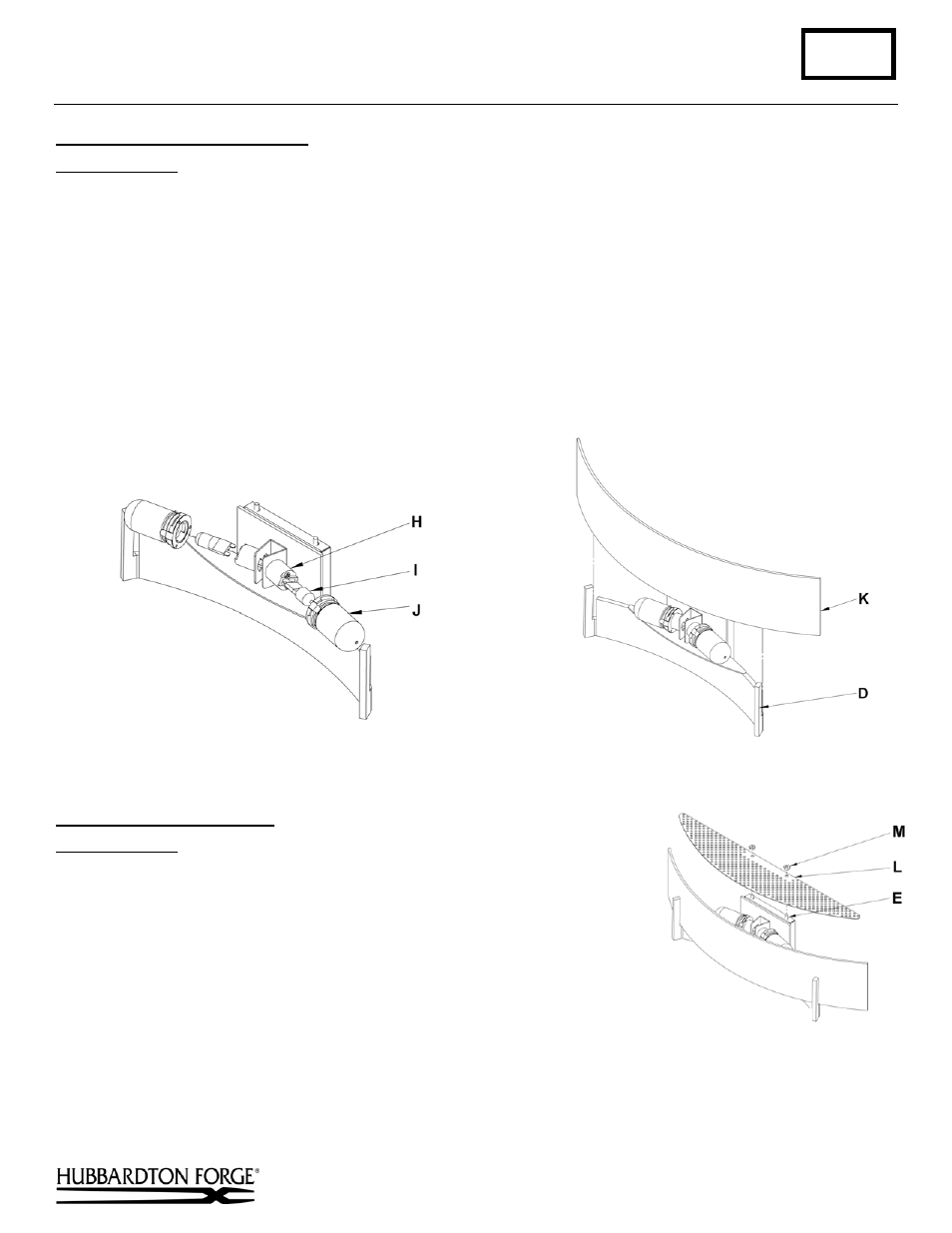

(Figure 3) (Figure 2)
