Hubbardton Forge 206301 - Manual (Page 2)

Installation Instructions
B161
For Sconces 20-6301L, 20-6301R, 20-6301EL & 20-6301ER Page 2 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 20883 Rev A
To Install Glass with G9 Option

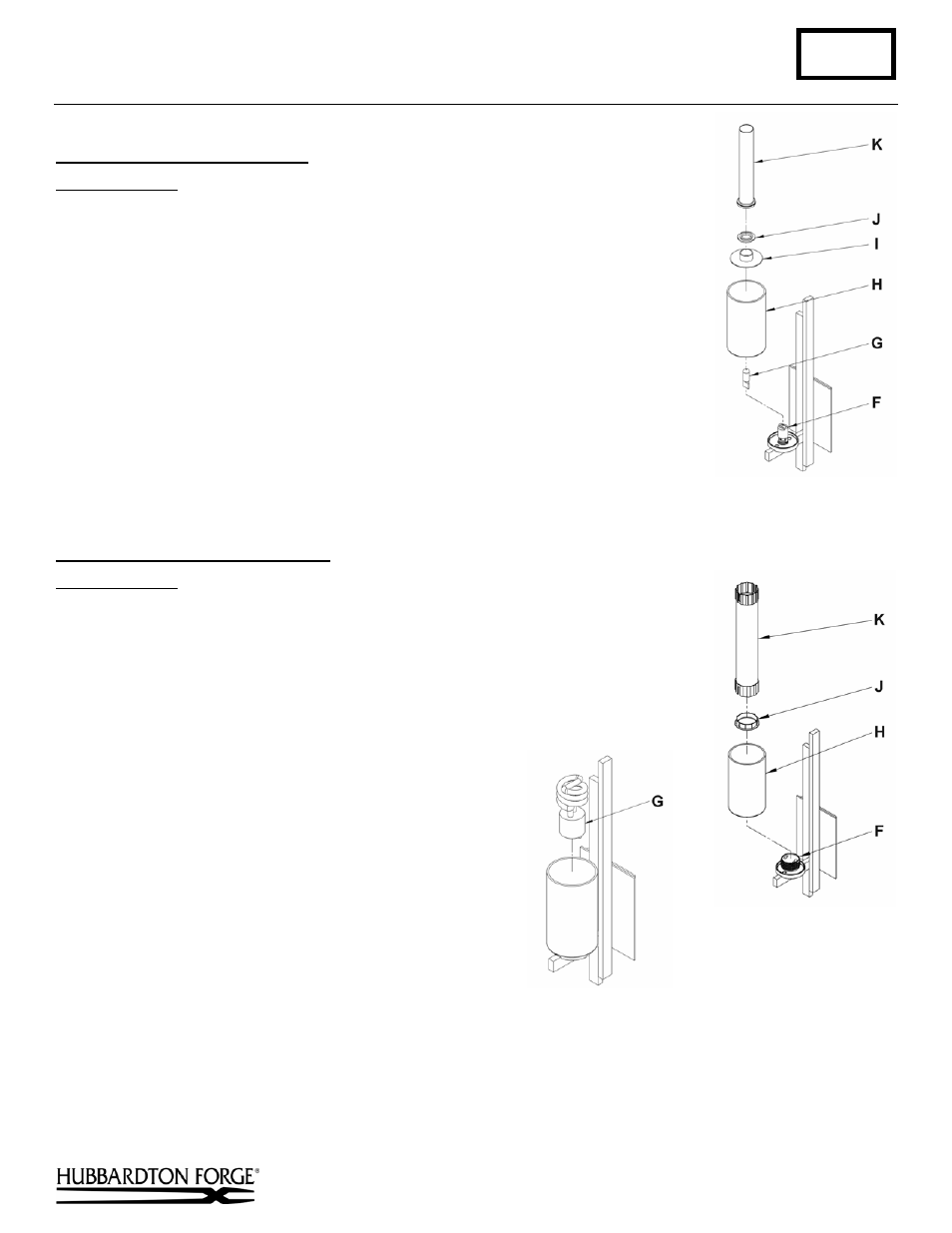

(Figure 2)
Component Parts
F Socket
G Bulb
(Included)
H Glass
I Washer
Assembly
J Retaining Ring
K Socket Tool
1. Install light bulb (G). Be careful not to touch bulb with bare hands; oil from the
hands will dramatically reduce bulb life.
2. Slip glass (H) over socket (F).
3. Slip washer assembly (I) over socket (F) so it rests on glass (H).
4. Thread retaining ring (J) onto socket (F) using provided socket tool (K). (be
careful not to over tighten).
5. Restore electricity at main breaker.
To Install Glass with GU24 Option
(Figures 3 & 4)
Component Parts
F Socket
G Bulb
(Included)
H Glass
J Retaining
Ring
K Socket Tool
1. Remove retaining ring (J) from socket (F). Retaining Rings are shipped
installed.
2. Slip glass (H) over socket (F).
3. Thread retaining ring (J) onto socket (F) using
provided socket tool (K) provided until it rests on
inside of glass (H). Do not over tighten.
4. Install light bulb (G).
5. Restore electricity at main breaker.
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
(Figure 2)
