Glass Installation Instructions
B42
Page 2 of 2
Please refer to frame assembly instructions on the opposite side of this sheet prior to mounting frame.

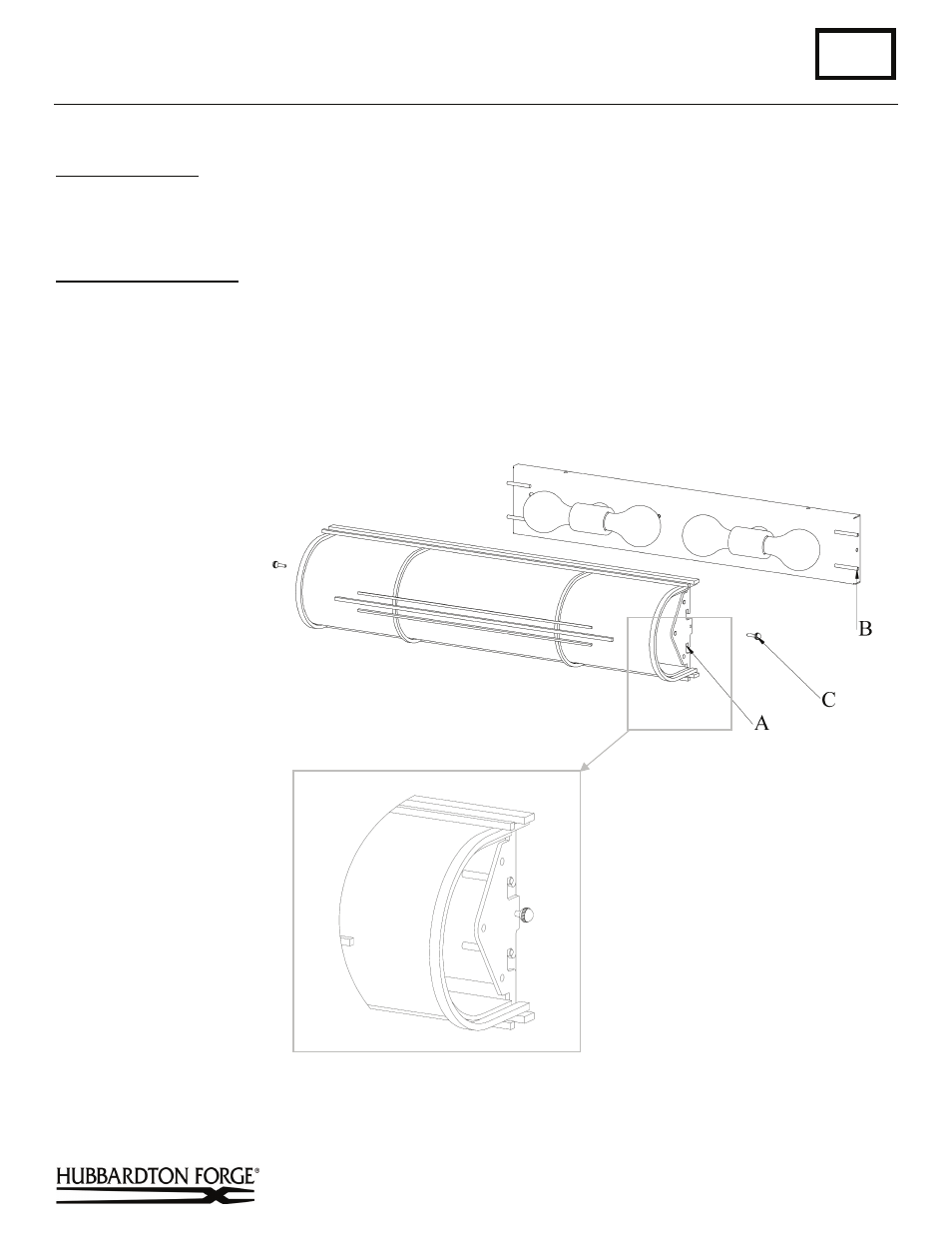

Component Parts
A Frame
B Pin
C Ball Screw
To Install Frame/Glass
1. Attach frame assembly to fixture by positioning the frame over the light bulbs so that the pins (B) on the fixture
slide into the L shaped notches in the frame. For horizontal installation, the L shaped notches should be pointing
upward. For vertical installations, the L shaped notches may be pointing either left or right.
2. Secure the frame to the fixture by threading the ball screws (C) through the frame and into the fixture body. This
locks the frame in place. To change the light bulbs, simply back the ball screws out enough to remove the frame
from the fixture- it is not necessary to remove them completely.
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
