Installation Instructions
B260
For Extended Bars Sconce 20-5912F Page 1 of 1
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 27009
Please Note: This fixture is designed to be mounted on a standard wall surface and may not be suitable for all applications. If
installing in a non-wood frame application, we recommend consulting a qualified builder or electrician.
To Mount Fixture to Wall and Install Glass (Figure 1)
Component Parts
A Thumb Screw E Ground Screw
B Forged Bars F Crossbar
C Mounting Rod (2) G Threaded Stud (2)
D Glass H Knurled Ball (2)
Caution: Be sure power is off at the main breaker box prior to
installation.
1. Carefully unpack the fixture from the carton.
2. Using two machine screws (not provided), fasten the crossbar (G)
to the electric box making sure that fixture mounting holes are
level.
Note: A new electric box comes with screws. When replacing a
fixture, retain the existing screws for use with the new fixture.
3. Thread studs (H) into the appropriate holes in the crossbar (G).
Adjust the studs to proper length to ensure the fixture will fit
snugly to the wall.
4. Hold the fixture assembly close to the wall and using suitable wire
connectors, not provided, connect fixture wires to supply (white to
white or ribbed and black to black or smooth). Run a pigtail lead
from crossbar ground screw (F) to the junction box and connect all
ground wires (bare copper or green to bare copper or green).
Caution: Make sure wire connectors are twisted on securely, and
no bare wire is exposed.
5. Slide fixture assembly over threaded studs (H) and push firmly to
wall, making sure that no wires are pinched between fixture back
and wall. Fasten with knurled balls (I). Be sure threaded studs (H)
are fully seated in the knurled balls (I).
6. Install light bulb (included)
7. Align holes in left side of glass (D) with the left side of mounting rod (C)
and flex glass slightly to snap glass over the right side of mounting rods (C)
8. Install decorative cage (B) over glass (E) and secure by inserting thumb screw (A) through hole in top of
decorative cage and into threaded hole in top bracket of fixture (C).
9. Restore electricity at main breaker
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL INJURY OR
DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the construction
and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.

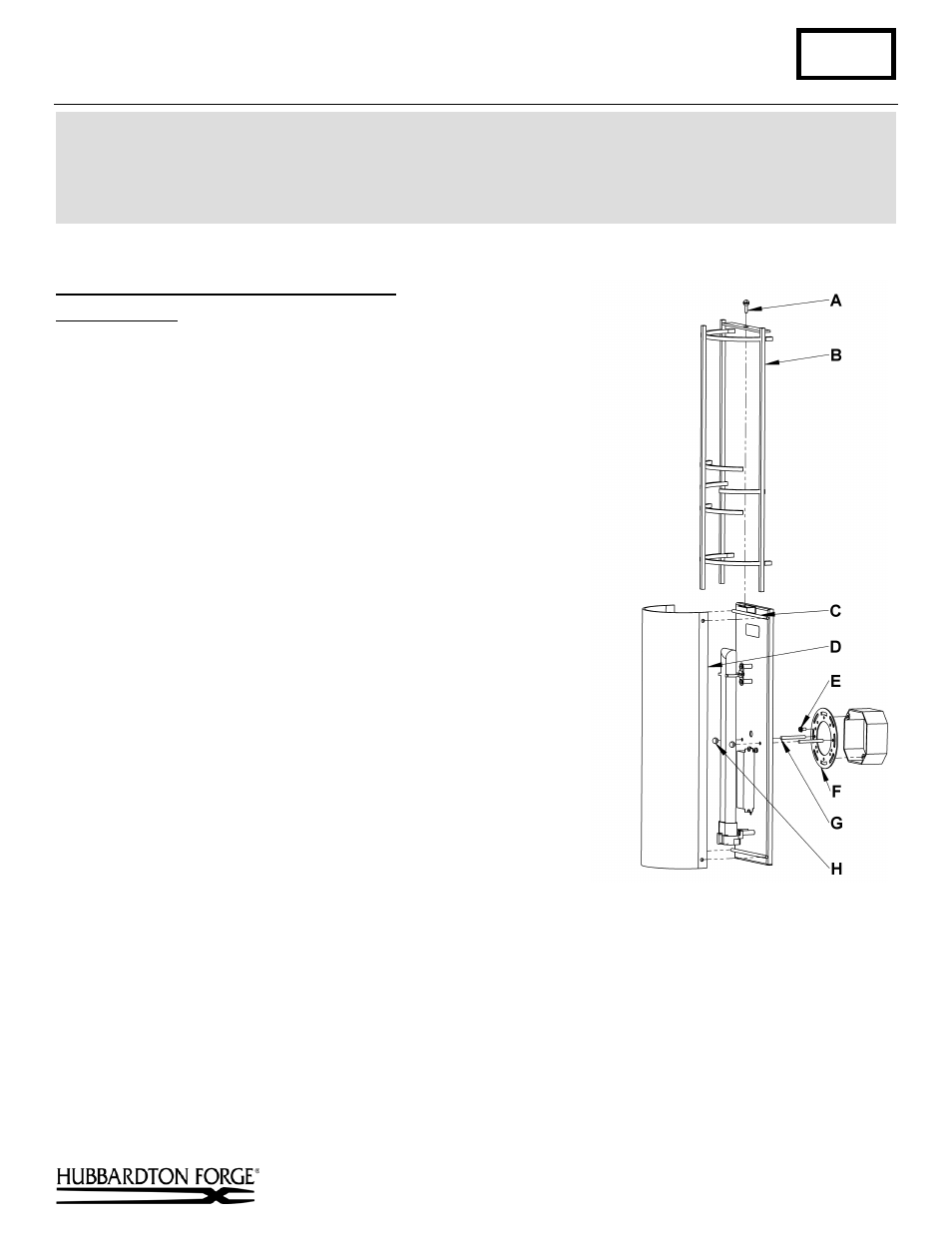

(Figure 1)
