Hubbardton Forge 204790 - Manual

Installation Instructions
B198
For Sconce 20-4790 Page 1 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 23985
Please Note: This fixture is designed to be mounted on a standard wall surface and may not be suitable for all
applications. If installing in a non-wood frame application, we recommend consulting a qualified builder or electrician.

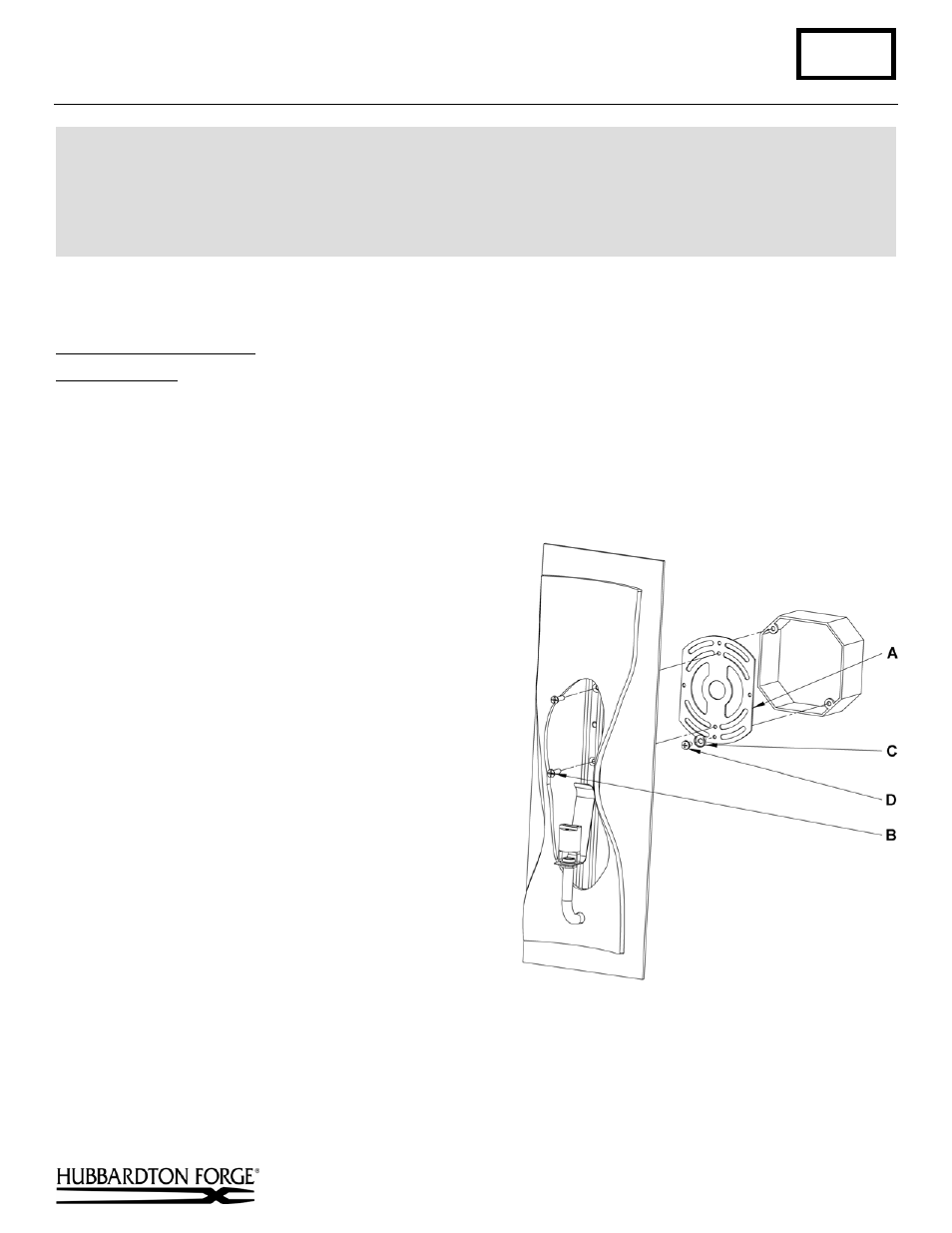

To Mount Fixture to Wall (Figure 1)
Component Parts
A Crossbar
B 8-32 Screws (2)
C Cupped
Washer
D Ground Screw
Caution: Be sure power is off at the main breaker box prior to installation.
1. Carefully unpack the fixture from the carton.
2. Using two machine screws (not provided),
fasten the crossbar (A) to the electric box
making sure that fixture mounting holes are
level.
Note: A new electric box comes with screws.
When replacing a fixture, retain the existing
screws for use with the new fixture.
3. Hold the fixture close to the wall and using
suitable wire connectors, not provided, connect
fixture wires to supply (white to white or ribbed
and black to black or smooth). Ground using the
green ground screw (D) and cupped washer (C)
to secure a pigtail lead to the crossbar (A).
Caution: Make sure wire connectors are
twisted on securely, and no bare wire is
exposed.
4. Carefully tuck all wires behind the fixture, place
fixture firmly against the wall and fasten with
two 8-32 screws (B).
5. See instructions following to install bulb and
glass.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 1)
