Installation Instructions
B140
For New Town Sconces 20-4250, 20-4260 & 20-4260F Page 1 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 21191
For fixtures requiring assembly, please refer to assembly instructions before installation.
Please Note: This fixture is designed to be mounted on a standard wall surface and may not be suitable for all
applications. If installing in a non-wood frame application, we recommend consulting a qualified builder or electrician.

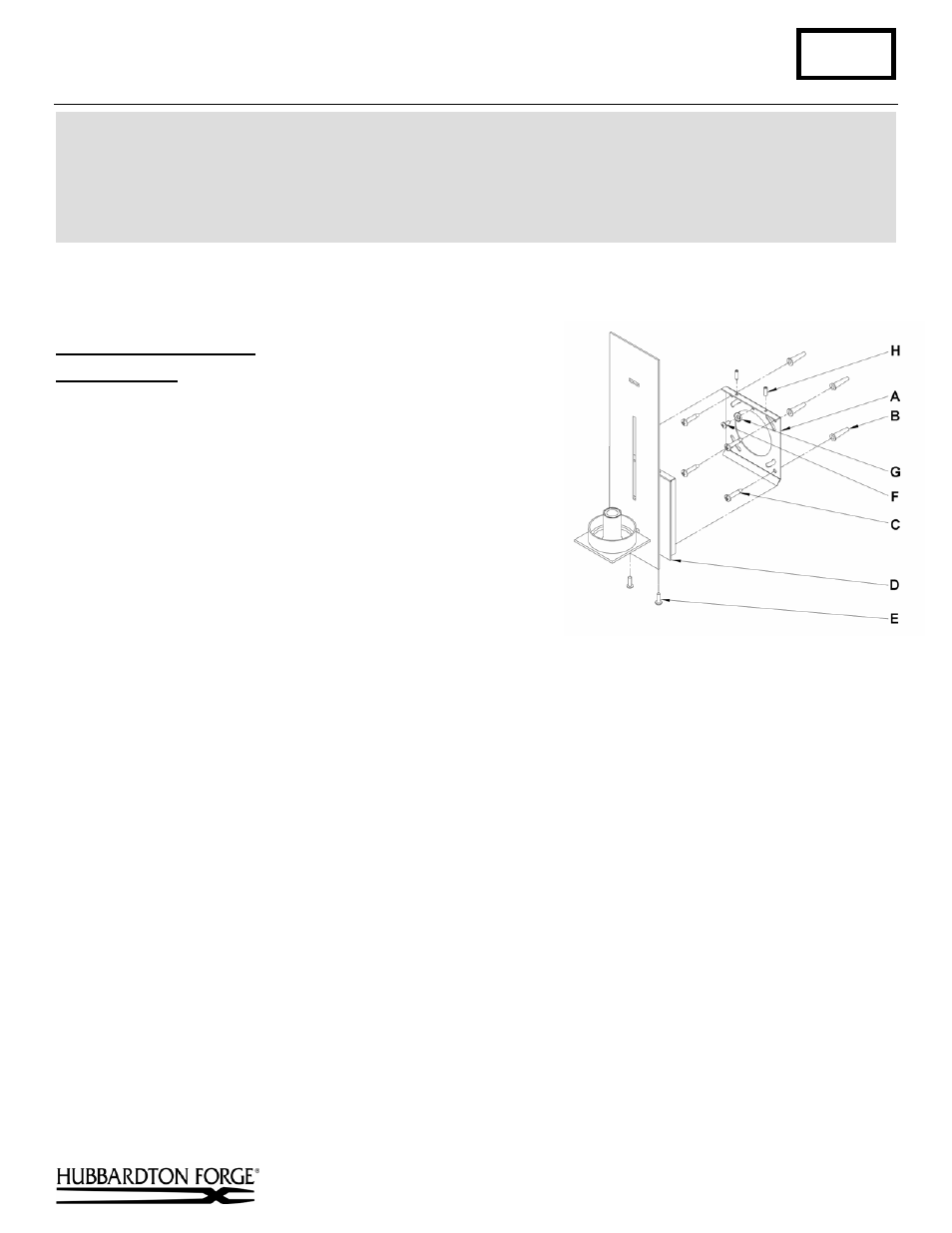

To Mount Fixture to Wall (Figure 1)
Component Parts
A Wall Mount Bracket
B Anchors
(4)
C #10 Screws (4)
D Fixture
Assembly
E #8 Black Screws (2)
F Green Ground Screw
G Cupped
Washer
H Set Screw (2)
Caution: Be sure power is off at the main breaker box prior to
installation.
1. Carefully unpack the fixture from the carton.
2. Center the wall mount bracket (A) over the electrical box being sure to
hold it plum and level. Bent end of bracket should face down. With a
pencil, mark the location of all mounting holes in the wall mount bracket on the wall behind.
IMPORTANT: Wall mount bracket must be secured to a solidly mounted electrical box and/or a framing member
in at least two locations. Do not depend on drywall anchors alone to support this fixture. If in doubt, contact a
qualified electrician.
Put the wall mount bracket down and drill 1/4" holes in the locations marked on the wall. For holes using anchors,
place the tapered end of the anchors (B) into the holes and gently tap them flush to the wall using a light weight
hammer.
3. Thread the wires in the electrical box through the center hole in the wall mount bracket while moving the bracket
into position. Using the 1" #10 screws (C), screw the bracket securely to the wall. Be careful not to over-tighten or
strip the anchors.
4. Thread the set screws (H) through the holes in the top of the wall mount bracket (A) so they protrude
approximately 1/4". Leave the bottom screws out for now.
5. Hold the fixture assembly (D) close to the wall mount bracket and using suitable wire connectors (not provided),
connect fixture wires to supply wires (white to white or ribbed and black to black or smooth, and bare copper or
green to bare copper or green). Ground the mounting bracket using the green ground screw (F) and cupped washer
(G) to secure a pigtail lead to the bracket.
6. Carefully tuck all wires behind the fixture assembly and inside the wall mount bracket and place the fixture over
the bracket so that the screws in the top of the wall bracket go through the holes in the top of the fixture. Secure
the fixture by threading the black #8 screws (E) up through the holes in the bottom of the fixture and into the
mounting bracket (A).
Caution: Make sure wire connectors are twisted on securely, and no bare wires are exposed.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 1)
