If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!

* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.

H U B B A R D T O N F O R G E . C O M

hand-forged, vermont-made lighting and accessories

154 RT. 30 SOUTH

•

CASTLETON, VERMONT 05735

30438

Assembly & Installation Instructions

5. is oriented toward the clutch when assembled and securely

tighten set screw (Figure 2).

6. Thread studs (F) through appropriate holes in crossbar (D) to

match holes in canopy (C).

7. Using two machine screws (not provided), fasten the cross

bar (D) to the electric box.

Note: A new electric box comes with screws. When replacing a

fixture, retain the existing screws for use with the new fixture.

8. Using suitable wire connectors (not provided) connect

fixture wires to supply (white to white and black to black).

Run a pigrail lead from crossbar ground screw (E) to the

junction box and connect all ground wires (bare copper or

green to bare copper or green). Caution: Make sure

wire connectors are twisted on securely, and no bare wire is

exposed.

9. Slide canopy (C) over threaded studs (F) and push firmly to

ceiling, making sure that no wires are pinched between

fixture canopy and ceiling. Fasten with knurled balls (G).

Be sure studs are fully seated in the knurled balls.

10. Once the fixture is fastened to the ceiling, tighten the set

screw (K) in clutch (J) firmly with hex wrench provided. Only

after the set screw (K) is tight should you install the glass.

11. Refer instructions following to install glass.

To Install Glass

(Figures 3 & 4)

Component Parts

L Glass

M Round Block

N #8 Screw

O Rubber Washer

P Metal Washer

Q Thumb Screw

R Socket

1. Remove round block (M) from fixture (A) by loosening thumb
screw (P). Remove #8 Screw (N) and washers (O&P) from
block (M). Round block and hardware are shipped assem-
bled.

A357

Pluto Pendant 18870

Page 2 of 3

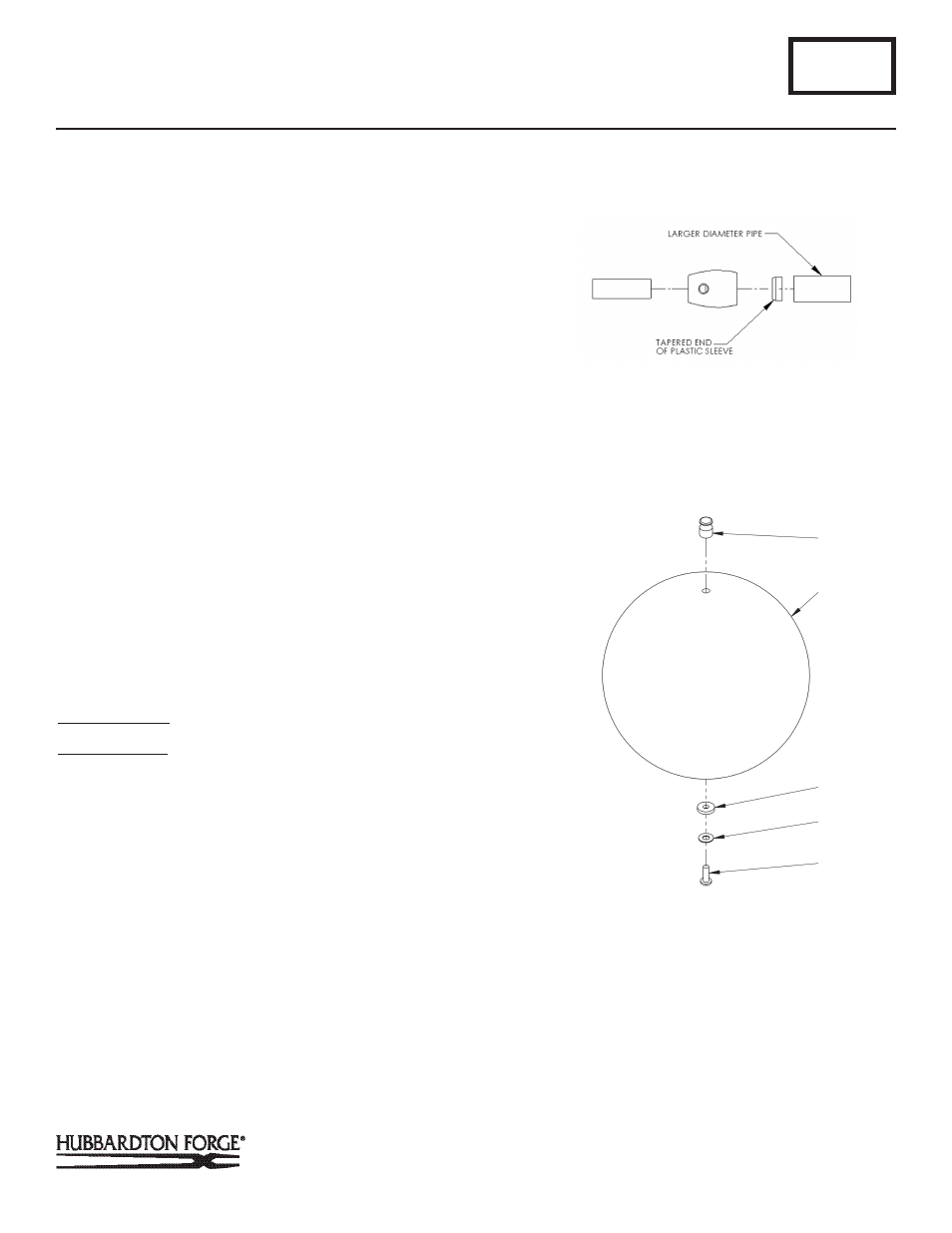

(Figure 2)

(Continued)

(Figure 3)
