Hubbardton Forge 18860 - Manual (Page 3)

Assembly & Installation Instructions
A201
For Adjustable Pendant 18-860 Page 3 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 22657
Install Glass
(Figure 5)
Component Parts
L Socket
N Bulb
(included)
O Retaining Ring (2)
P Inner
Glass
Q Outer Glass
R Spacer
S Socket
Tool
1. Remove two retaining rings (O) and spacer (R) from socket (L). Items
are shipped installed on socket.
2. Install light bulb (N). Be careful not to touch bulb with bare hands; oil
from the hands will dramatically reduce bulb life.
3. Slip outer glass (Q), spacer (R) over socket (L) and thread one of the
retaining rings onto the socket (L) using provided socket tool. Note:
Flat side of retaining ring should oriented as shown.
4. Slip inner glass (P) over socket (L).
5. Thread retaining ring (O) onto socket (L) using provided socket tool
(S) until snug against inner glass (P). Be careful not to over tighten.
Note: Flat side of retaining ring should be oriented as shown.
6. Restore electricity at the main breaker.
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.

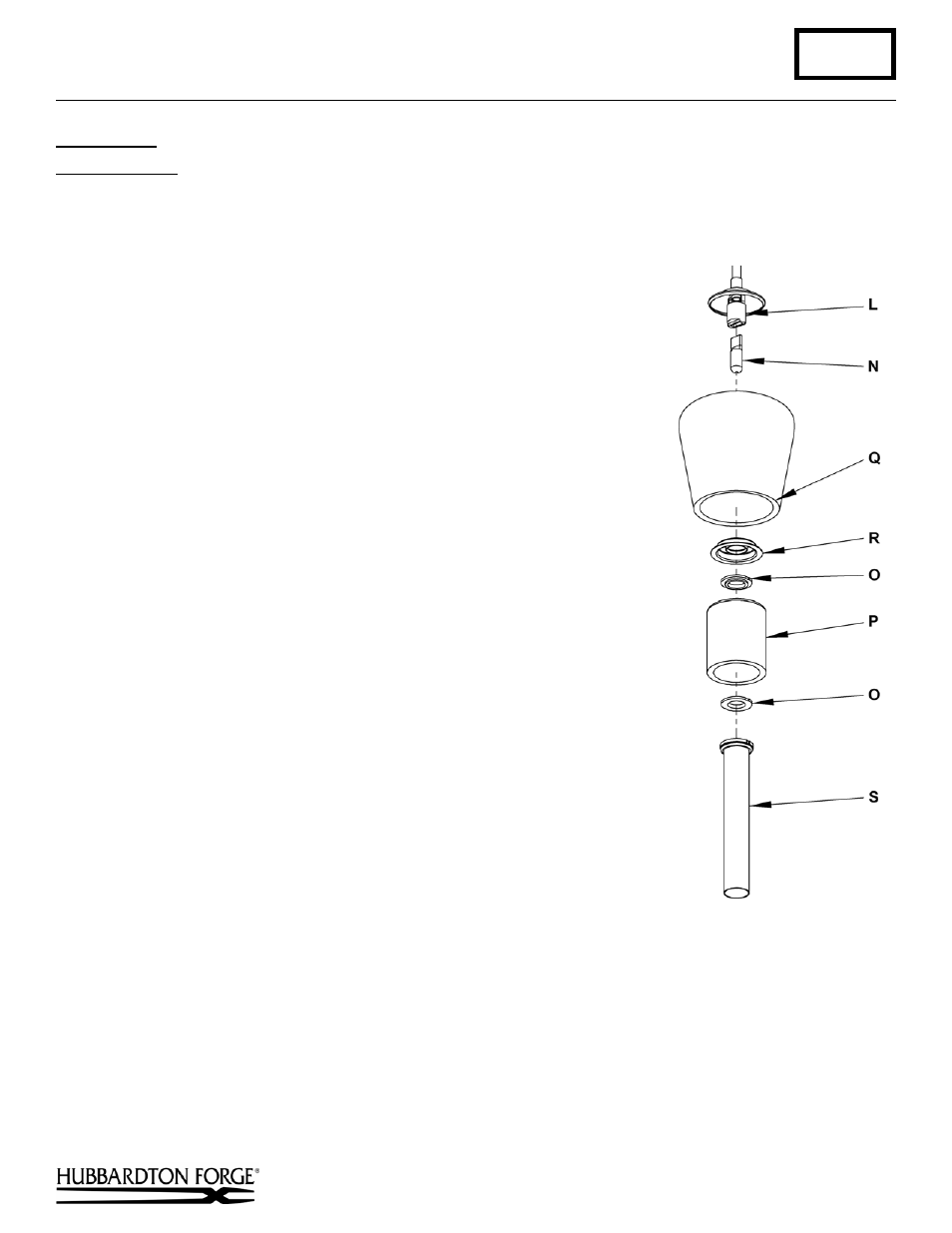

(Figure 5)
