Hubbardton Forge 18264 - Manual (Page 2)

Assembly & Installation Instructions
A291
For Trumpet Pendant 18-263, 18-264 Page 2 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 26922

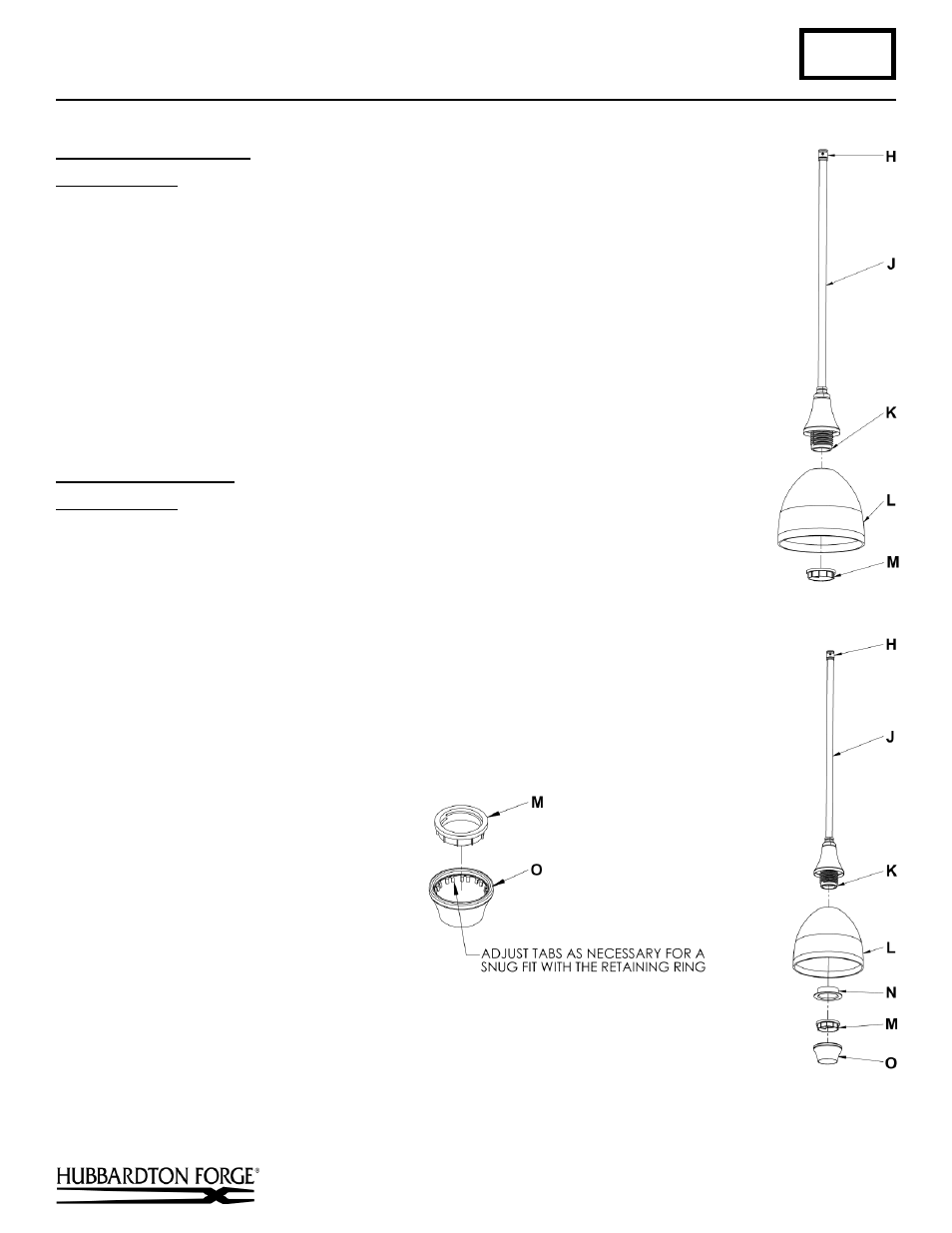

To Install Opaque Glass (Figure 2)
Component Parts
K Socket
L Glass
M Retaining Ring
1. Remove retaining ring (M) from socket (K). Retaining Ring is shipped installed.
2. Place glass (L) over socket (K).
3. Replace retaining ring (K) and tighten until snug against glass (L). Do not over-tighten.
4. Install light bulb. Not included
5. Restore electricity at the main breaker.
To Install Water Glass (Figures 3 & 4)
Component Parts
K Socket
L
Glass
N Socket Cover
M Retaining Ring
O Decorative Ring Cover
1. Remove retaining ring (M) from socket (K). Retaining Ring is shipped installed.
2. Install retaining ring (M) into decorative ring cover (O). If retaining ring (M) fits to loose
bend a few inside tabs of the decorative ring cover (O) (Figure 3).
3. Place glass (L) over socket (K).
4. Install socket cover (N) replace retaining ring (M) and tighten until snug against glass (L).
Do not over-tighten.
5. Install light bulb. Not included
6. Restore electricity at the main breaker.
If you need further assistance, or find that you are missing any parts, please contact the dealer
from which you purchased this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
(Figure 4)
(Figure 2)
(Figure 3)
(Figure 3)
