Assembly & Installation Instructions
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
To Assemble Fixture

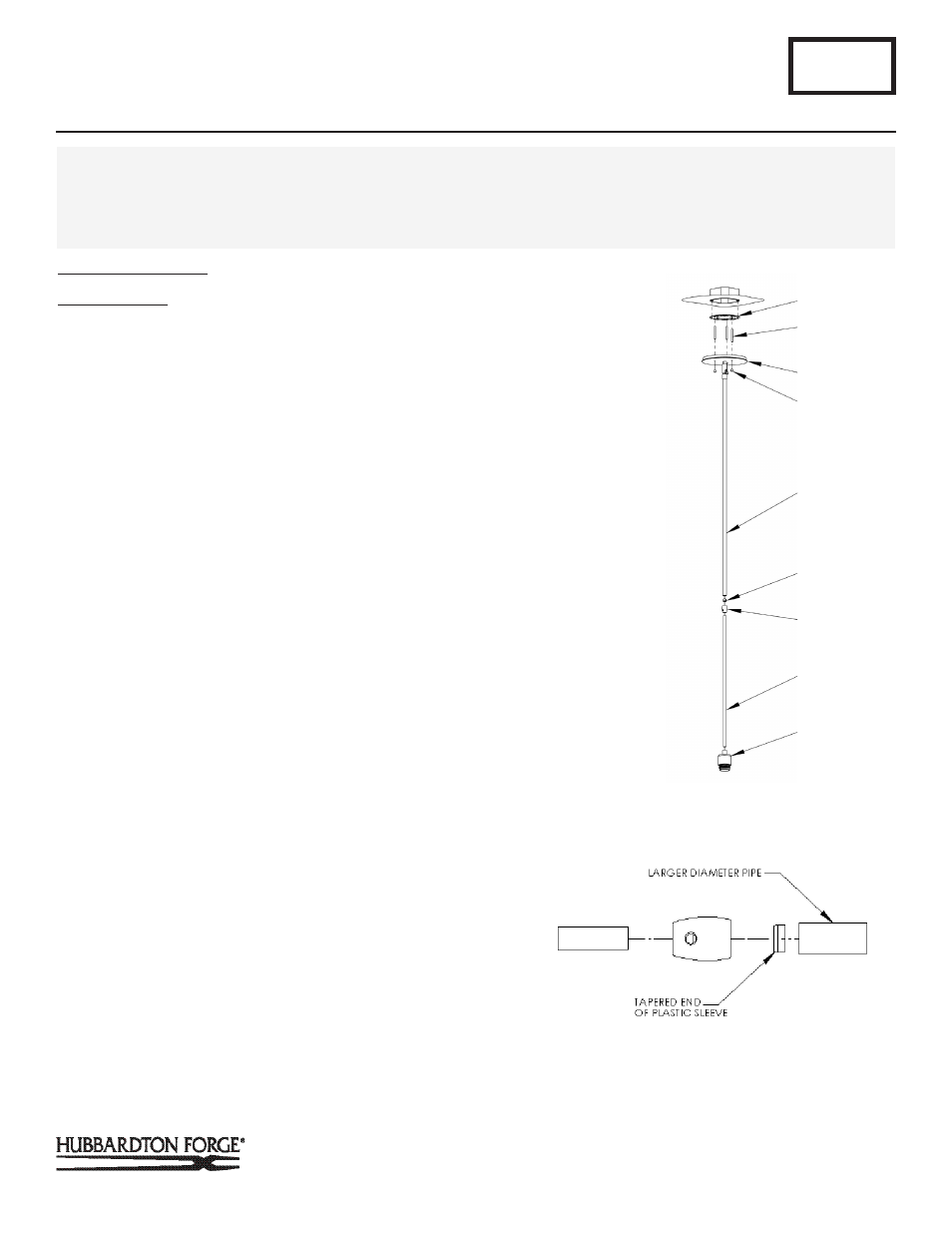

(Figures 1 & 2)
Component Parts
A Crossbar
B Threaded Stud (3)
C Canopy
D Barrel Knobs (3)
E Canopy Pipe
1. Carefully unpack the fixture from the carton.
2. Slide Fixture Pipe (H) over wires, threaded end first. Apply a
drop of supplied thread locking compound to threads and
screw Fixture Pipe into threaded part of Socket Assembly (I).
3. Thread the wires from the fixture pipe (H) into and
through the canopy pipe (E) and up through the canopy (C).
4. Unscrew the clutch (G) from the canopy pipe (E); slide it
across the wires and onto the smaller diameter fixture pipe.
Follow this with the clutch sleeve (F), so that the clutch
sleeve nests in the clutch (G).
Important: To ensure full connection strength, be sure the
tapered end of the plastic clutch sleeve is oriented
toward the clutch when assembled and securely tighten set
screw (Figure 2).
5. Slide the smaller pipe as far as necessary to give you the
total length of the fixture which you desire. Be careful not to
scratch the pipe surfaces and to pull excess wire up through
the canopy. There must be a minimum 1-1/2" of inner pipe
inside the outer pipe. Screw clutch onto canopy pipe and
hand-tighten the clutch to temporarily hold this adjustment.
At this point the adjustment is not securely fastened; do not
depend on it to permanently hold the fixture.
A105
For Adjustable Pendant 139590
Page 1 of 3
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH AND
PROPERTY DAMAGE. We recommend installation by a licensed electrician. This product must be installed in accordance with
applicable installation code(s), by a person familiar with the construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
B
C
A
D
E
(Figure 1)
(Continued)
F Clutch Sleeve
G Clutch
H Fixture Pipe
I Socket Assembly
(Figure 2)
G
H
I
F
