Assembly & Installation Instructions

If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!

* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.

Note: A new electric box comes with screws. When replacing a

fixture, retain the existing screws for use with the new fixture.

8. Using suitable wire connectors (not provided) connect fixture

wires to supply wires (white to white supply and black to

black supply). Run a pigtail lead from crossbar (B)

green ground screw to the junction box and connect all

ground wires (bare copper or green to bare copper

or green). Push wires back into outlet box. Caution: Make

sure wire connectors are twisted on securely, and no

bare wire is exposed.

9. Slide fixture canopy (F) against ceiling, and secure with

canopy ring (G).

10. Once the fixture is fastened to the ceiling, tighten the set

screw on the clutch (J) firmly with hex wrench

provided. Only after the set screw is tight should you install

the metal shade and glass.

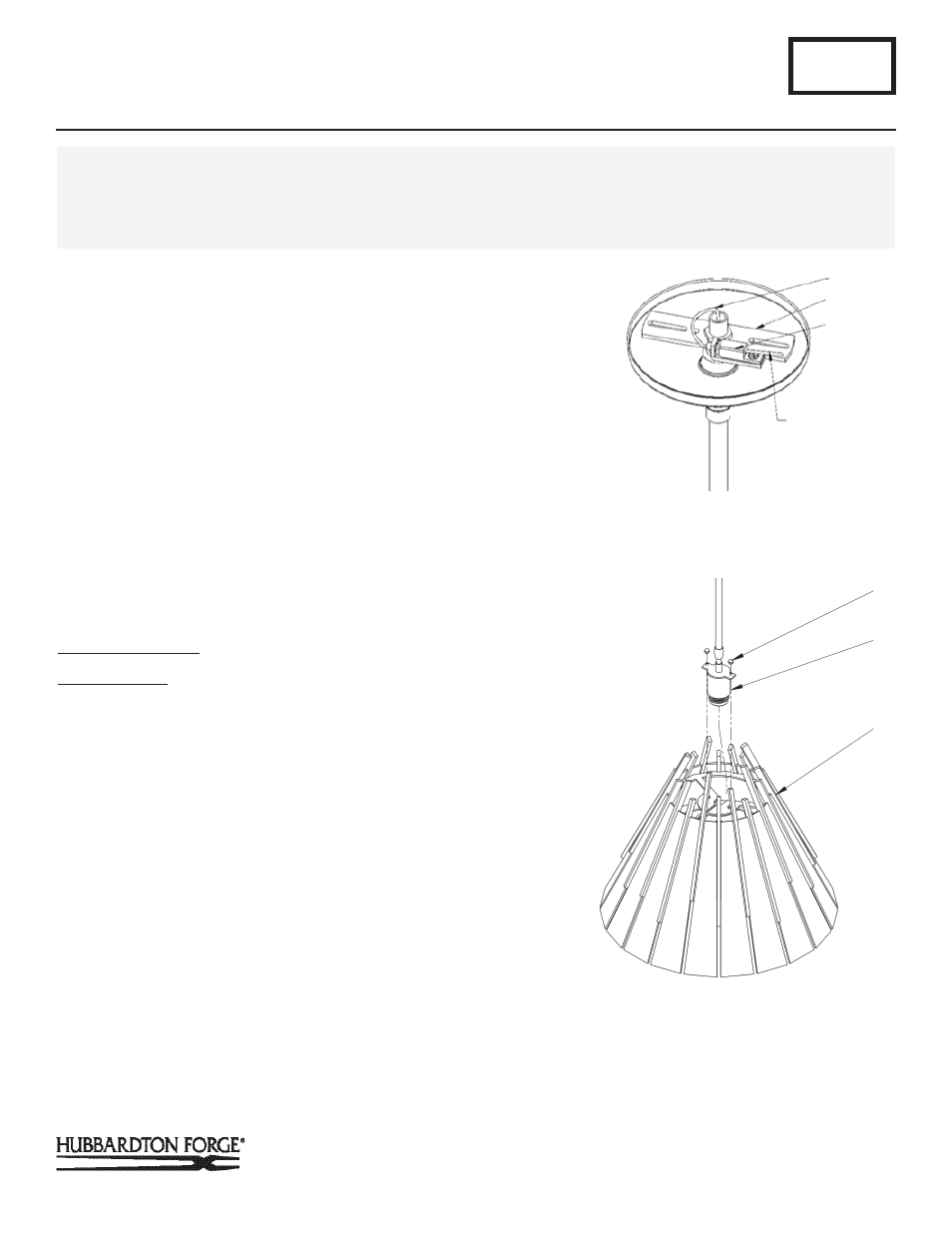

Install Metal Shade

(Figure 5)

Component Parts

M Knurled Balls (2)

N Socket

O Metal Shade

1. Remove Knurled balls (M) from Socket (N).

2. Lift metal shade (O) and slip shade over the socket. Position

holes in shade center plate over studs on socket plate.

3. Lower metal shade onto the studs

4. Install knurled balls (M)

A367

Finn Adjustable Pendant 138901

Page 3 of 4

CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH AND
PROPERTY DAMAGE. We recommend installation by a licensed electrician. This product must be installed in accordance with
applicable installation code(s), by a person familiar with the construction and operation of the product and the hazards involved.*

Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.

(Continued)

(Figure 2)

(Figure 3)

(Figure 4)

(Figure 5)

A
B
C

CUT OFF EXCESS
CABLE
