Assembly & Installation Instructions
A326
Moreau Shade Pendant 13-7655 Page 4 of 4
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 28104

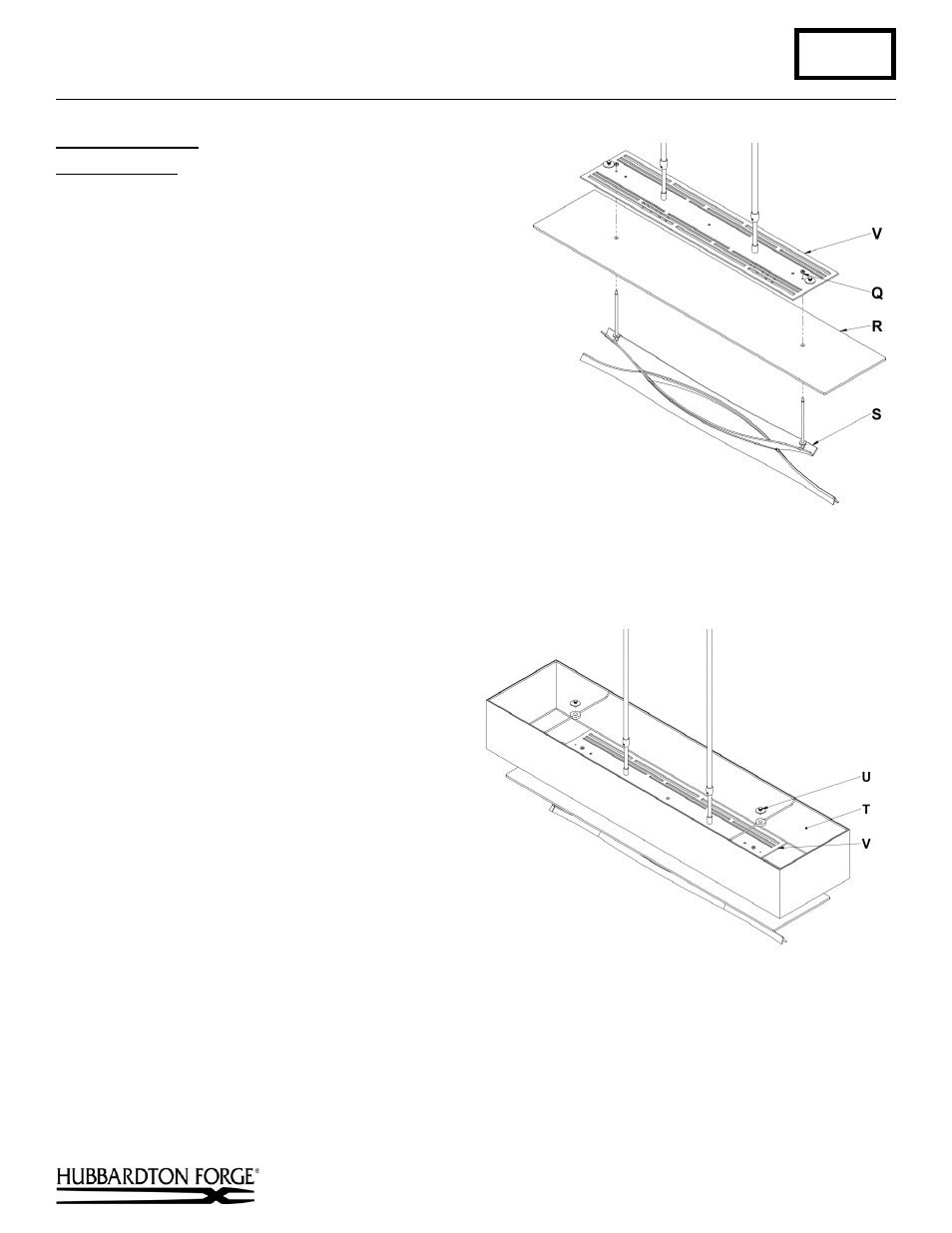

Fixture Assembly (Figures 6 & 7)
Component Parts
Q Hex Nut (2)
R Diffuser
S Lower Assembly
T Shade
U Thumb Screw with Washer and Hex Nut (2)
V Fixture
1. Slip diffuser (R) onto lower assembly (S).
2. Raise lower assembly (S) and diffuser (R) so the
threaded studs pass through the top of the fixture (V).
3. Install two hex nuts (Q) onto the threaded studs and
tighten.
4. Install bulbs (not included).
See Figure 7 for remaining steps.
5. Remove thumb screw assembly (U) from top of fixture
(V). Save for later use. Thumb screws are shipped
installed.
6. Install shade (T) from the bottom and tilt so it will pass fixture (V). It will be necessary to raise one side of the
shade completely past the diffuser and over towards the canopy pipes as far as it will go to allow the other side of
the shade to pass the diffuser. Lower the shade (T) so it rests on top of the fixture (V).
7. Secure the shade (T) with the thumb screws (U).
8. Restore electricity at main breaker.
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
(Figure 6)
(Figure 7)
