Assembly & Installation Instructions
A146
Lyra Pendant 13-7470, 13-7470F, 137475 & 137475F Page 2 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 21178 Rev C

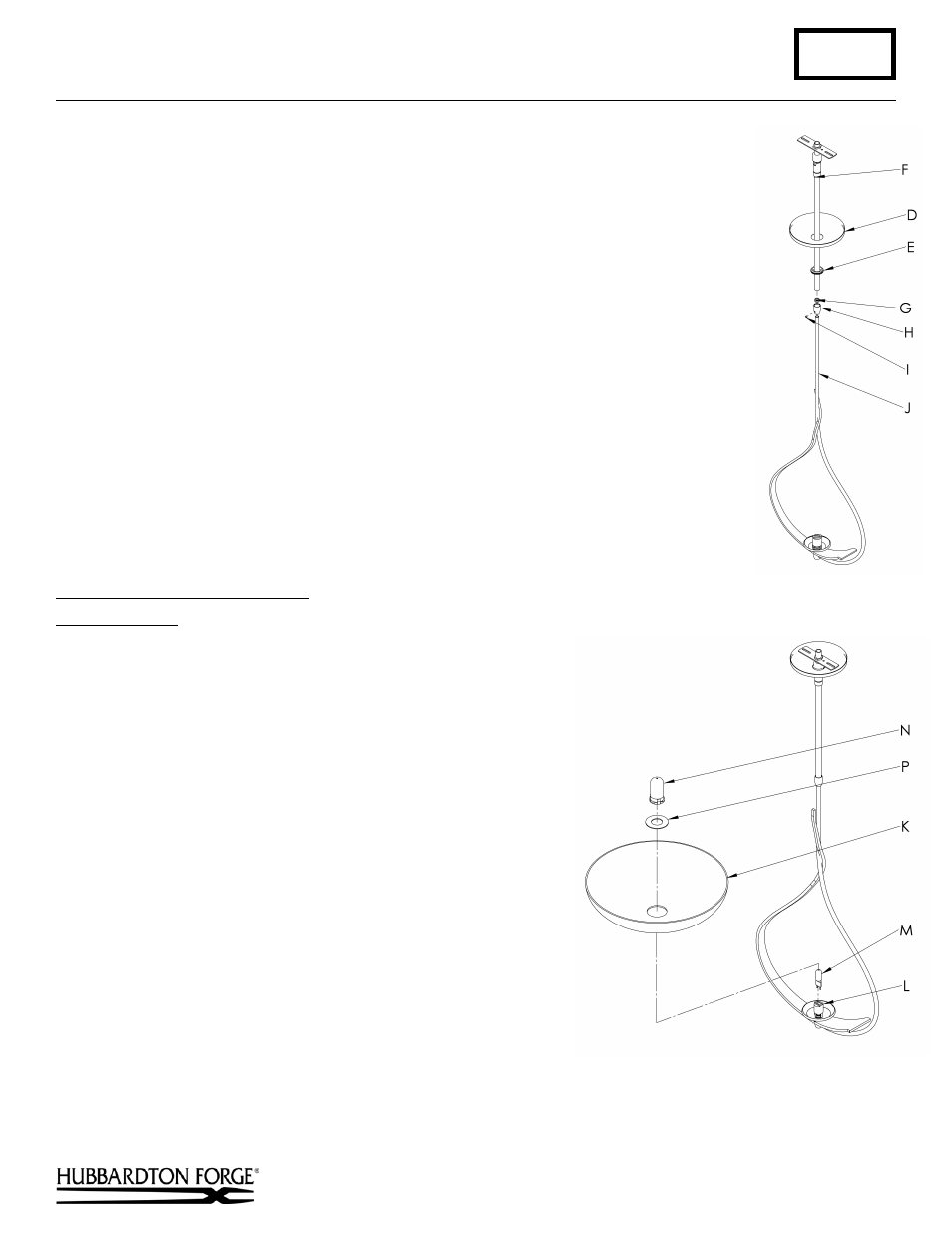

4. Slide the canopy pipe (F) as far as necessary to give you the total length of the fixture
which you desire. Be careful not to scratch the pipe surfaces and to pull excess wire up
through the canopy pipe (F). There must be a minimum 1-1/2" of inner pipe inside the outer
pipe. Hand-tighten the clutch to temporarily hold this adjustment. The clutch is not securely
fastened at this point; do not depend on it to hold the fixture.
Important: To ensure full connection strength, be sure the tapered end of the plastic clutch
sleeve is oriented toward the clutch when assembled and securely tighten set screw
(Figure 2).
5. Carefully slide canopy ring (E) and canopy (D) down over fixture pipe (J) until they rest on
the fixture.
6. Using two machine screws (not provided), fasten the crossbar to the electric box.
Note: A new electric box comes with screws. When replacing a fixture, retain the existing
screws for use with the new fixture.
7. Using suitable wire connectors (not provided), connect fixture wires to supply wires (white
to white supply, black to black supply). Run a pigtail lead from crossbar ground screw to
the junction box and connect all ground wires (bare copper or green to bare copper or
green). Push wires back into outlet box.
Caution: Make sure wire connectors are twisted on securely, and no bare wire is exposed.
8. Slide fixture canopy (D) against ceiling, and secure with canopy ring (E).
9. Refer to instructions below to install glass & light bulb option purchased.
To Install Glass with G9 Option (Figure 4)
Component Parts
K Glass
L
Socket
M Bulb (Included)
N Bulb Shield
P Washer (Only used on product 137475)
1. Slip glass (K) over socket (L).
2. Slip washer (P) over socket so it rests on glass (K). For product
137475 only.
3. Install light bulb (M). Be careful not to touch bulb with bare
hands; oil from the hands will dramatically reduce bulb life.
4. Thread bulb shield (N) onto socket (L) (be careful not to over
tighten). Future bulb changes may be accomplished by snapping
glass portion of barrier on and off rather than unthreading the
holder.
5. Restore electricity at main breaker.
(continued)
(Figure 3)
(Figure 4)
