Assembly & Installation Instructions
A229
For Ondrian Adjustable Pendant 13-6310 Page 2 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 24157

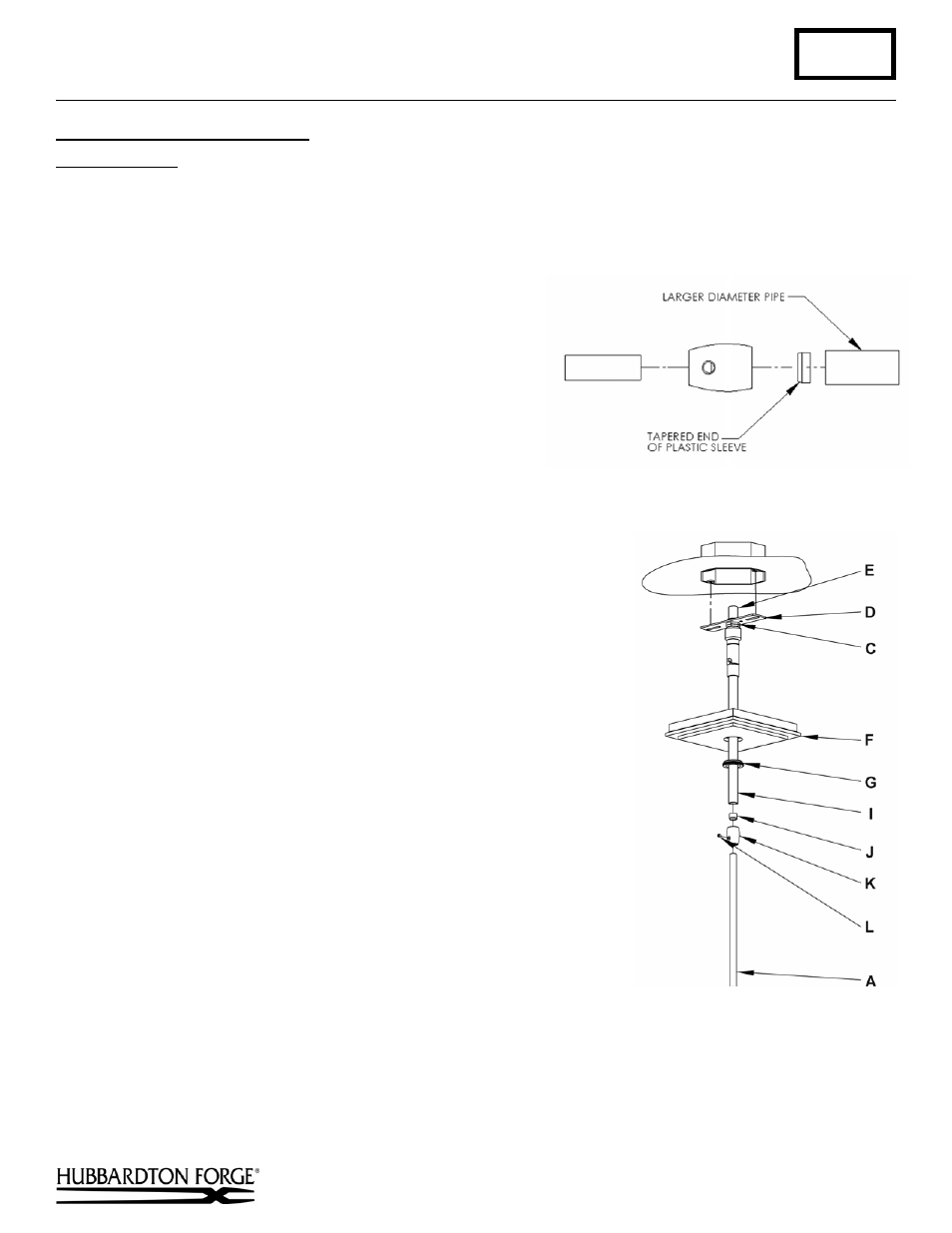

Complete Assembly and Install (Figures 3 & 4)
Component Parts
A Fixture Pipe
C Jam Nut
D Crossbar
E Threaded
Nipple
F Canopy
G Canopy Ring
I Canopy Pipe
J Plastic Clutch Sleeve
K Clutch
L Set
Screw
Caution: Be sure power is off at the main breaker box prior
to installation.
1. Thread crossbar (D) onto threaded nipple (E) until tight
against jam nut (C).
2. Unscrew the clutch (K) from the canopy pipe (I); slide it
across the wires and onto the fixture pipe (A). Follow this
with the plastic clutch sleeve (J), oriented so the tapered
end of the clutch sleeve nests in the clutch (Figure 3).
3. Thread wires from the fixture pipe (A) through the canopy
pipe (I).
4. Slide the canopy pipe (I) as far as necessary to give you the total length
of the fixture which you desire. Be careful not to scratch the pipe
surfaces and to pull excess wire up through the canopy pipe (I). There
must be a minimum 1-1/2" of inner pipe inside the outer pipe. Screw
clutch (K) onto canopy pipe and hand-tighten the clutch to temporarily
hold this adjustment. The clutch is not securely fastened at this point;
do not depend on it to hold the fixture.
Important: To ensure full connection strength, be sure the tapered end
of the plastic clutch sleeve is oriented toward the clutch when
assembled and securely tighten set screw (Figure 4).
5. Using two machine screws (not provided), fasten the crossbar to the
electric box.
Note: A new electric box comes with screws. When replacing a fixture,
retain the existing screws for use with the new fixture.
6. Using suitable wire connectors (not provided), connect fixture wires to
supply wires (white to white or ribbed side of the fixture cord, black to
black or smooth side, and bare copper to bare copper or green supply).
Push wires back into outlet box.
Caution: Make sure wire connectors are twisted on securely, and no
bare wire is exposed.
7. Slide fixture canopy (F) against ceiling, and secure with canopy
ring (G).
8. Refer instructions below and install glass.
(continued)
(Figure 3)
(Figure 4)
