Assembly & installation instructions

Assembly & Installation Instructions
A87
For Oval Mackintosh Pendant 13-4325 & 13-4328
Page 1 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735
19399 Rev A

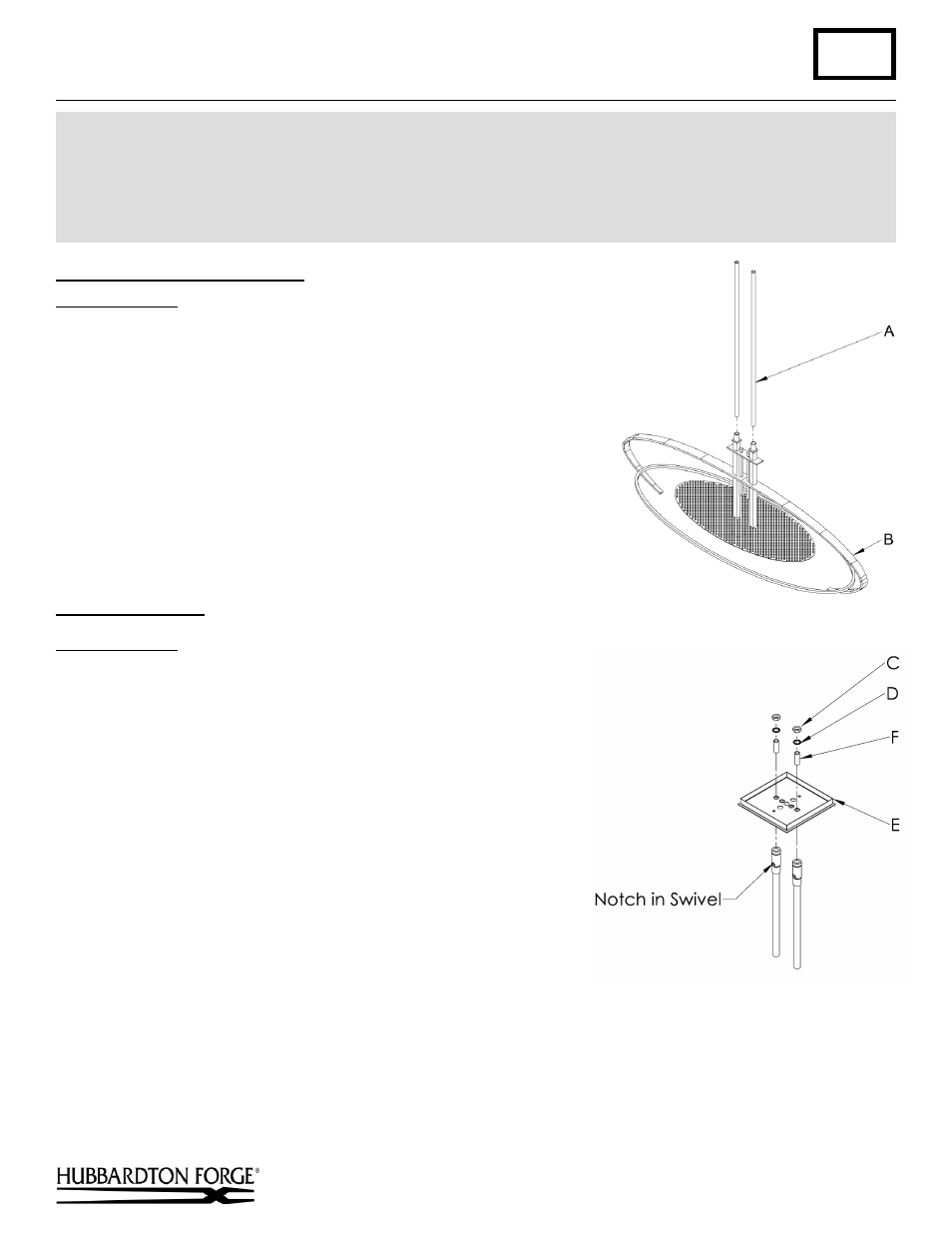

Attach Fixture Pipes to Fixture
Component Parts
A
Fixture Pipe (2)
B
Fixture
1. Carefully unpack the fixture from the carton.
2. Carefully slide fixture pipe (A) over fixture wires.
3. Apply a drop of the supplied thread locking compound to the internal
threads at the top of the fixture (B) and screw fixture pipe into fixture,
being careful not to twist the wires.
Note: Application of the thread locking compound is necessary to
prevent the stem from loosening during regular maintenance and
cleaning. Be certain to apply the compound.
4. Refer to canopy attachment and installation instructions to complete the
installation.
Assemble Canopy
Component Parts
C
Hex Nut (2)
D
Lock Washer (2)
E
Canopy
F
Nipple (2)
1. Insert nipple (F) in swivel up through holes in canopy (E).
2. Place lock washer (D) and nut (C) onto the nipple (F) in swivel and
tighten securely.
Note: If installing on a sloped ceiling, make certain that the notch in
the swivel portion of the stem is oriented toward the lower side of the
slope.
Please refer to the canopy installation instructions to complete the
installation
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution:
Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 2)
(Figure 1)
