Assembly & Installation Instructions
A247
Kirigami Three Light Pendant 13-3303 Page 3 of 4
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 24617 Rev A
To Assemble Bottom
(Figures 4, 5 & 6)
Component Parts
L Hex Nut
M Diffuser Top Plate
N Nipple
O Bottom
Assembly
P Shade
Q Threaded Knob (3)
R Threaded Stud (3)
S Diffuser
T Alignment
Pin
U Spring
V Flat Head Screw (3)
1. Remove hex nut (L) (Figure 4). Save for later use.
2. Slip diffuser top plate (M) with flat head screws (V) installed
off bottom assembly (O) (Figure 4). Save for later use.
3. Install shade (P) into bottom assembly by slipping the holes
in the shade over the threaded studs (R) (Figure 5).
Note: Be careful when installing shades not to allow
the shade to come in contact with the three threaded
studs. Contact with the studs will damage the shade
and cause visible scratches.
4. Install knobs (Q) to keep shade (P) in place (Figure 5).
See Figure 6 (next page) for the remaining steps unless
another figure is referenced.
5. Slip diffuser (S) onto nipple (N) aligning the
alignment hole in the diffuser with the alignment pin
(T).
Note: if the other three holes in the diffuser don’t
hit the triangle on the bottom assembly remove the
diffuser and flip over (Figure 7).
6. Thread the three flat head screws (V) installed in the
diffuser plate (M) so they protrude slightly out the
bottom of the plate.
7. Align the diffuser top plate (M) so the three flat head
screws (V) align with the three holes in the diffuser (S)
and slip onto the nipple (N) until it rests on top of the
diffuser.
8. Thread hex nut (L) onto nipple (N) until it sits on top
of the diffuser top plate (M). Tighten the hex nut being
careful not to over tighten.
9. Thread the three flat head screws (V) until they are snug.
10. Slip the spring (U) onto the nipple.
11. Refer to instructions following to complete installation.
(continued)

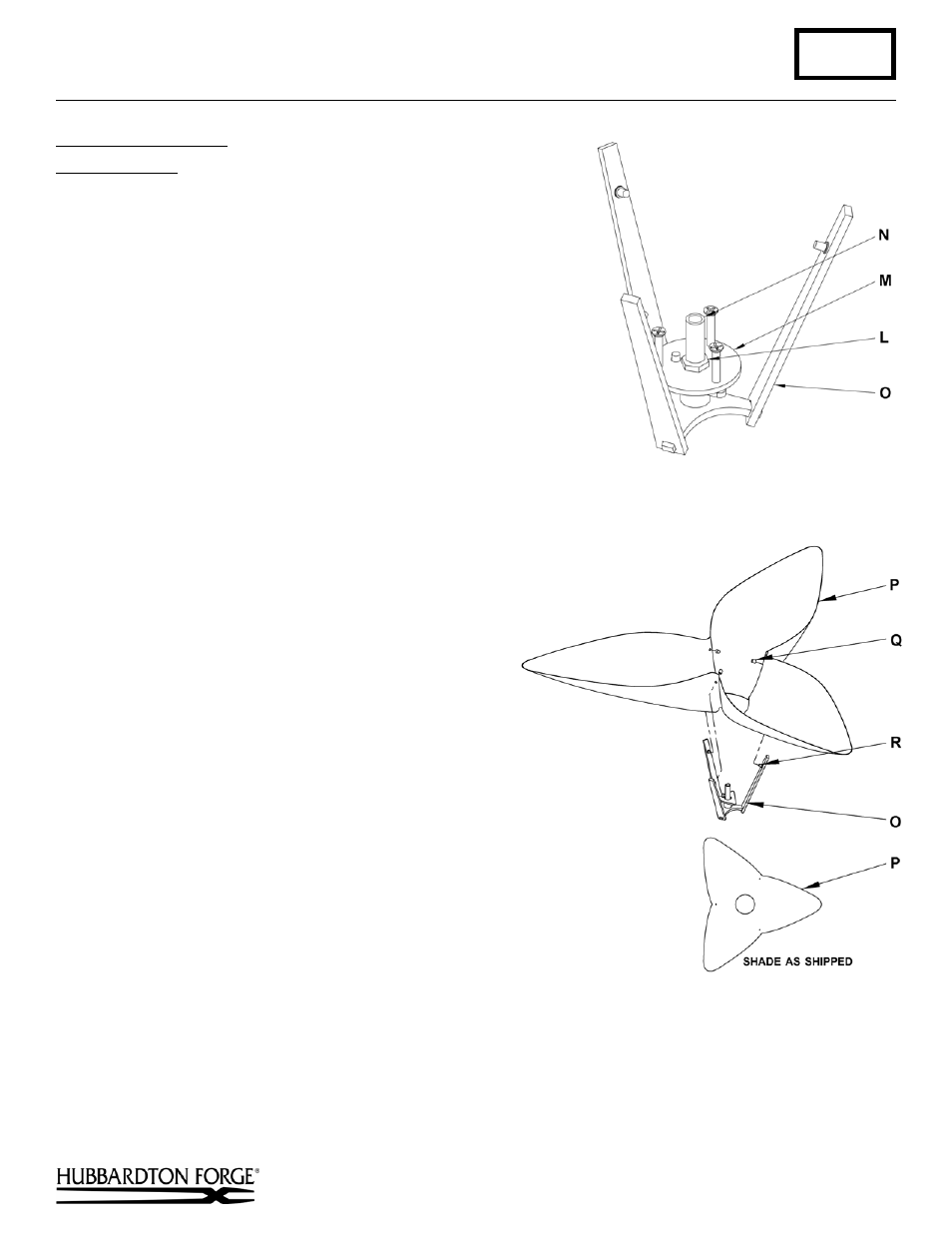

(Figure 4)
