Assembly Instructions
A8
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 14012 Rev C
For Adjustable Fixtures Page 2 of 2
For fixtures requiring assembly, please refer to assembly instructions before installation.
Component Parts
A Canopy
B Electric box machine screws (not provided)
C Black wires
D Ground wires
E White wires
F Universal Round Cross Bar
G 8-32 Threaded studs
H 8-32 Knurled balls or 8-32 Threaded Knobs
(Depending on fixture purchased)
I Wire Nuts or Connections (not provided)
J Ground screw
To Install
Caution: Be sure power is off at the main breaker box prior to installation
1. Thread studs (G) through appropriate holes in the crossbar (F) to match
hole centers on canopy (A). Move ground screw (J) to another
available threaded hole if necessary.
2. Using two machine screws (B, not provided), fasten the crossbar (F) to
the electric box using outer oval slots to orient fixture to desired
hanging position.
Note: A new electric box comes with screws. When replacing a
fixture, retain the existing screws for use with the new fixture.
3. Using suitable wire connectors (I) (not provided) connect fixture wires
to supply wires (white to white and black to black or white to ribbed
side of the fixture s cord, and black to the smooth side). Run a pigtail
lead from crossbar ground screw (A) to the junction box and connect
all ground wires (bare copper or green to bare copper or green).
Caution: Make sure wire connectors are twisted on securely, and no
bare wire is exposed.
4. Slide fixture canopy (A) with fixture attached, over threaded studs (G)
and push firmly to ceiling making sure that no wires are pinched
between fixture canopy and ceiling. Fasten with the knurled balls (H).
Be sure studs (G) are fully seated in the knurled balls (H).
5. Check fixture for height and level (see assembly instructions).
6. Install light bulb(s) (not included).
7. Install Glass
8. Restore electricity at main breaker box.
If you need further assistance, or find that you are missing any parts, please
contact the dealer from which you purchased this product. We hope you enjoy
your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.

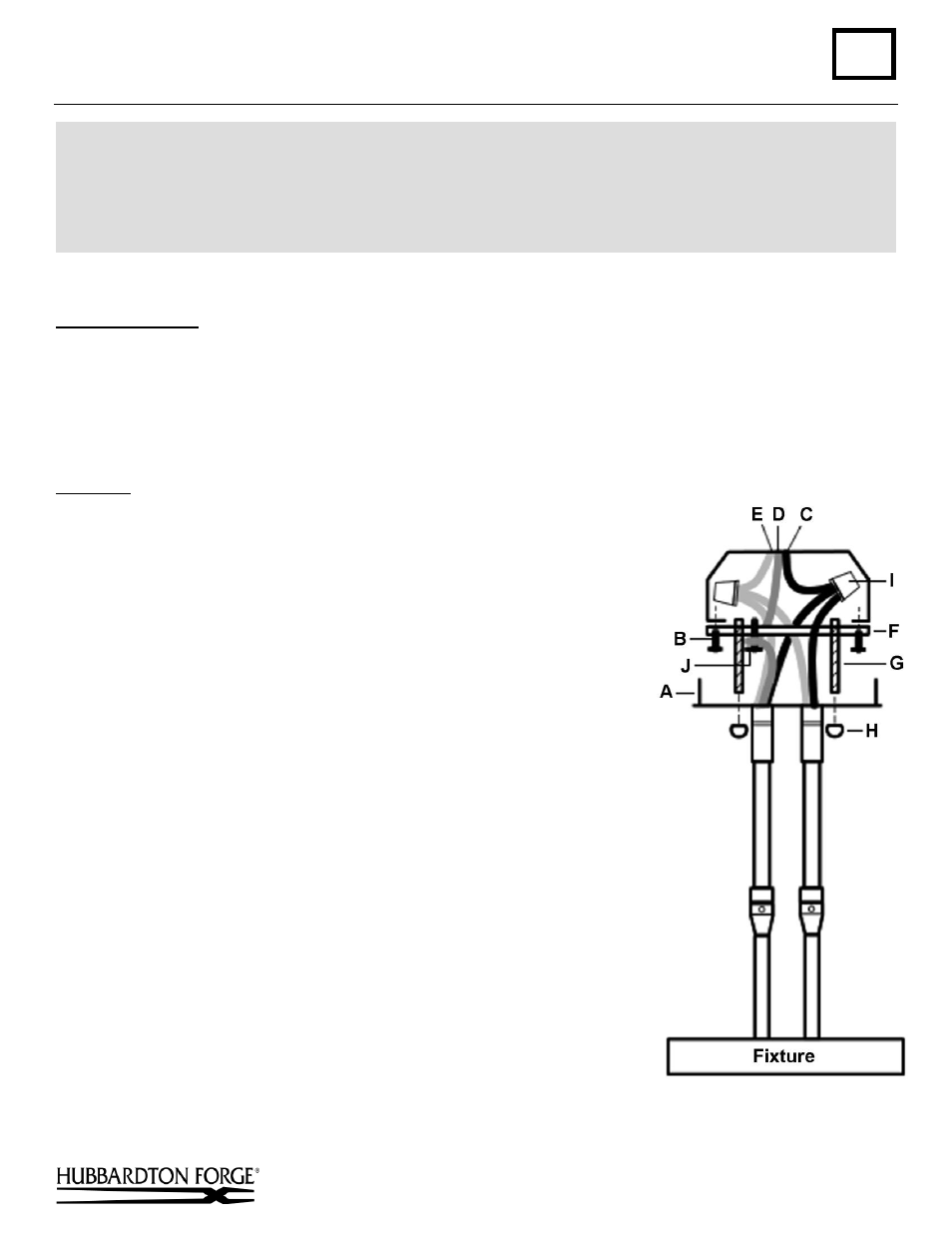

(Figure 3)
