Hubbardton Forge 103305 - Manual

Installation Instructions
A305
Mobius Chandelier 10-3305 Page 1 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 27184
To Install the Canopy (Figure 1)
Component Parts
A Ground Screw
B Crossbar
C Lock Nut
D Nipple
E Canopy
F Canopy Loop
G Loop Collar
H Fixture Loop
I Chain
Caution: Be sure power is off at the main breaker box prior to
installation
1. Carefully unpack the fixture from the carton.
2. Using two machine screws (not provided), fasten the
crossbar (B) to the electric box (see illustration).
Note: A new electric box comes with screws. When
replacing a fixture, retain the existing screws for use with
the new fixture.
3. Thread the nipple (D) into the crossbar (B) and secure with
lock nut (C); slide canopy (E) over nipple (D), and attach
the canopy loop (G) to the nipple (D). Adjust the nipple to
proper length to ensure a snug canopy fit before proceeding.
4. Attach one end of the chain (I) to the fixture loop (H). Lace
the wire through every other link of the chain (I) to the end.
Slip wires and chain (I) through the collars and canopy (G,
F & E). Fasten the chain (I) to the canopy loop (G), and
then slip wires through the loop and nipple, into the electric
box. Make sure to provide enough slack in the wire to
ensure weight of fixture is supported by the chain (I).
5. Using suitable wire connectors (not provided) connect
fixture wires to supply wires (white to ribbed side of the
fixture cord, black to smooth side). Run a pigtail lead from
crossbar ground screw (A) to the junction box and connect
all ground wires (bare copper or green to bare copper or
green).
Caution: Make sure wire connectors are twisted on
securely, and no bare wire is exposed.
6. Raise canopy (E) to the ceiling and secure loop collar (F) to
canopy loop (G).
7. Follow instructions on next page to install bulbs.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.

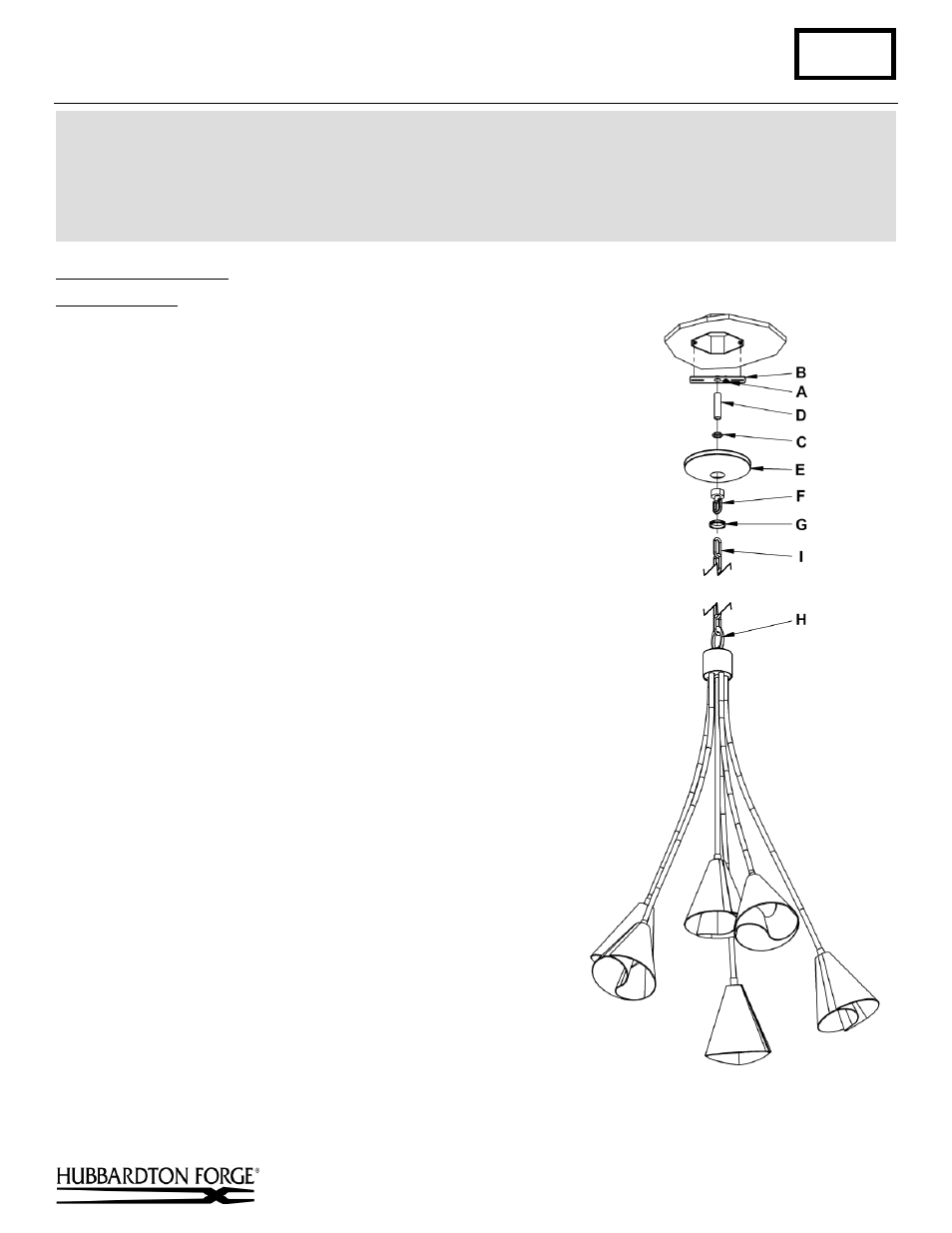

(Figure 1)
