Assembly & Installation Instructions

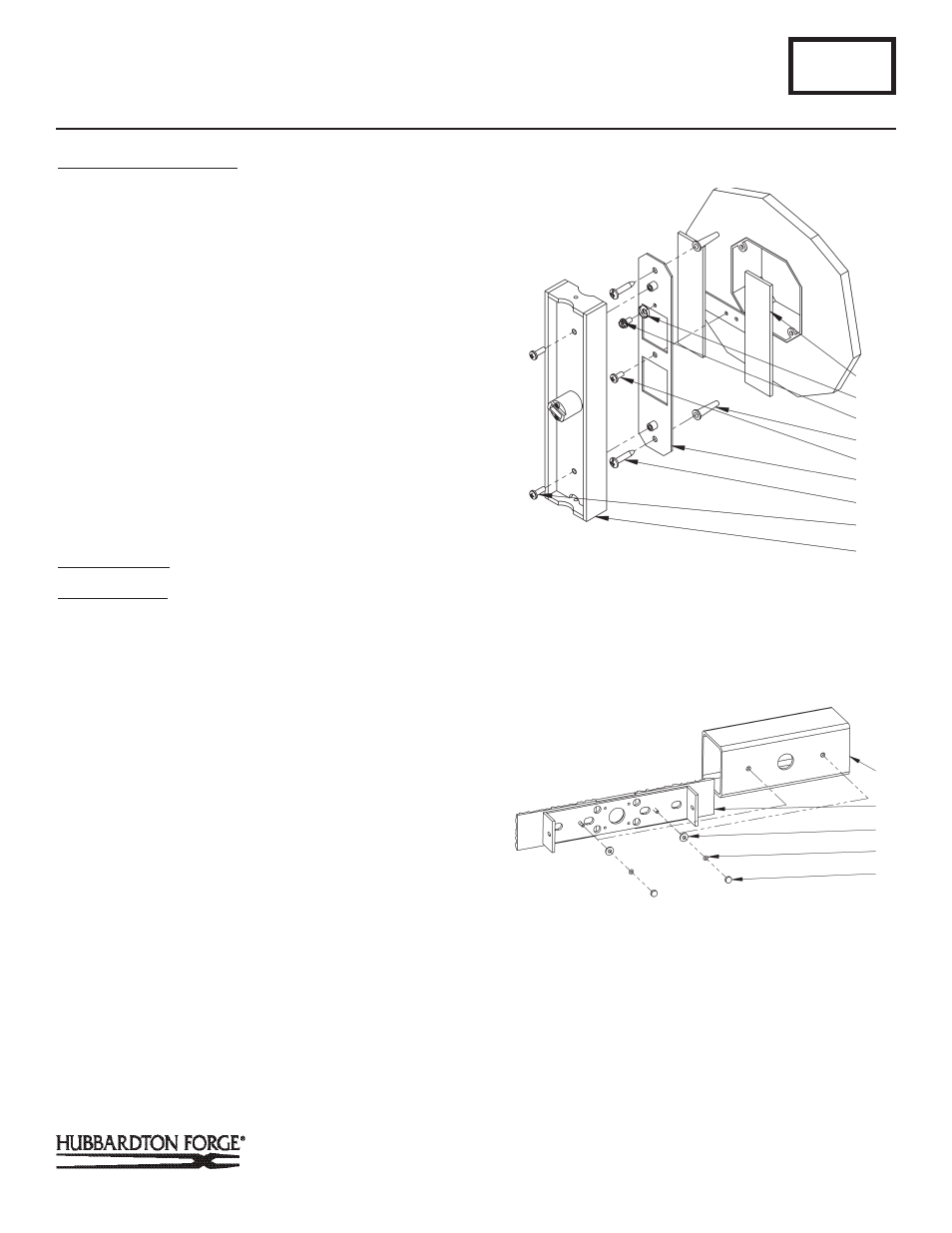

To Mount Fixture to Wall (Figures 2 & 3)
(Continued)
6. Hold the fixture back (B) close to the wall mounting bracket
(D) and using suitable wire connectors (not provided)
connect fixture wires to supply wires (white to white and
black to black). Run a pigtail lead from the ground screw
(I) and cupped washer (H) to the electrical box and connect
all ground wires (bare copper or green to bare copper or
green).
CAUTION: MAKE SURE WIRE CONNECTORS ARE TWISTED ON
SECURELY, AND NO BARE WIRES ARE EXPOSED.
7. Carefully tuck all wires behind the fixture back (B) and place
over the bracket (D) so the holes in fixture back (B)
match the threaded standoffs protruding from the
wall mounting bracket (D). Secure by threading the (4) #8
black screws (J) through the holes in the fixture back (B) and
into the standoffs on the wall mounting bracket (D).
To Install Glass (Figure 3)
Component Parts
A Fixture Front
K Glass (1)
L Rubber O-Ring (2)
M Knurled Ball (2)
Q Washer (2)
1. Knurled balls (M), rubber o-rings (L), and washers (Q) ship
installed. Remove from threaded studs on fixture front (A).
Save for later use.
2. Slide glass (K) over end of fixture front (A). Align holes in
glass with threaded studs on fixture front (A).
3. Slip glass (K) over threaded studs followed by washers (Q),
rubber o-rings (L) and knurled balls (M). Tighten knurled
balls (M) to secure glass. Be sure not to over tighten.
B310
Oceanus Sconce Single 207693 Page 2 of 3
(Figure 2)
(Figure 3)
(Continued)
K
A
Q
L
G
H
I
E
J
D
F
P
B
M
