Installation Instructions

To Mount Fixture to Wall

(Figure 1)

(Continued)

CAUTION: MAKE SURE WIRE CONNECTORS ARE TWISTED ON
SECURELY, AND NO BARE WIRES ARE EXPOSED.

6. Carefully tuck all wires behind the fixture assembly and

inside the wall mount bracket and place the fixture firmly

onto bracket (B) and fasten with #8 black screws (E) on top.

7. Install two remaining black screws (E) in bottom of fixture

attaching to wall mounting bracket (B).

To Install Glass

(Figures 2-4)

Component Parts

A Fixture Assembly

H Round Block

I Glass

J Rubber Washer

K #8 Screw

L Thumb Screw

M Socket

N Metal washer

1. Remove round block (H) from fixture assembly (A) by re-

moving thumb screw (L). Remove #8 screw (K) and rubber

& metal washers (J & N). Round block and hardware are

shipped installed (Figure 2).

2. Attach glass (I) to round block (H) using #8 screw (K), rubber

washer (J) and steel washer (N) (Figure 3).

Note: Be sure not to over tighten the screw.

3. Thread bulb (not included), into socket (M).

4. Tilt glass (I) over bulb and fasten round block (H) to fixture

assembly (A) using the thumb screw (L) (Figure 4).

5. Restore electricity at main breaker.

B295

Pluto Sconce Small Vintage Platinum: 207450

Page 2 of 2

CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH AND
PROPERTY DAMAGE. We recommend installation by a licensed electrician. This product must be installed in accordance with
applicable installation code(s), by a person familiar with the construction and operation of the product and the hazards involved.*

Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.

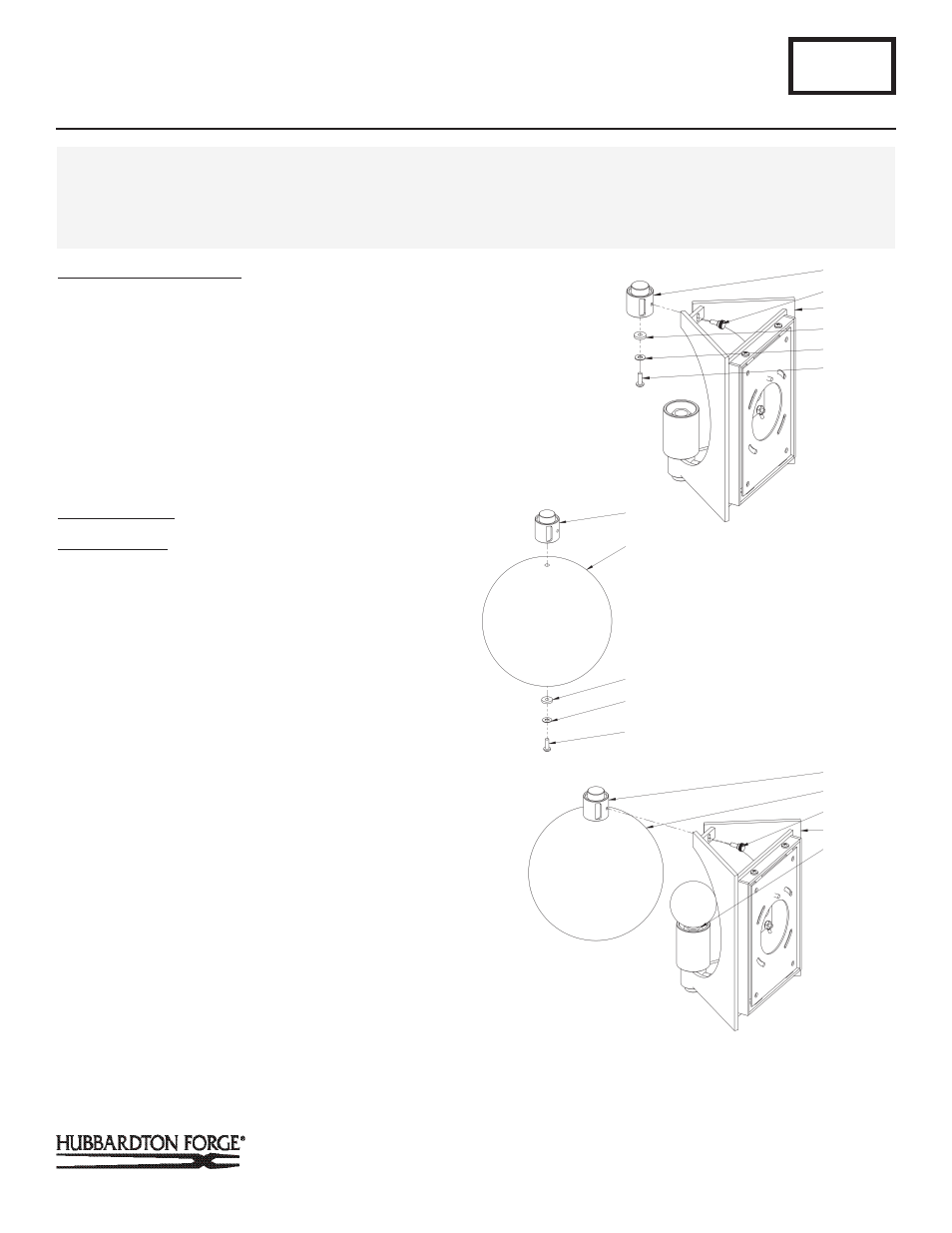

(Figure 2)
