Installation Instructions
B214
Brindille Sconce 20-7660 & 20-7663 Page 1 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 24828
For fixtures requiring assembly, please refer to assembly instructions before installation.
Please Note: This fixture is designed to be mounted on a standard wall surface and may not be suitable for all
applications. If installing in a non-wood frame application, we recommend consulting a qualified builder or electrician.

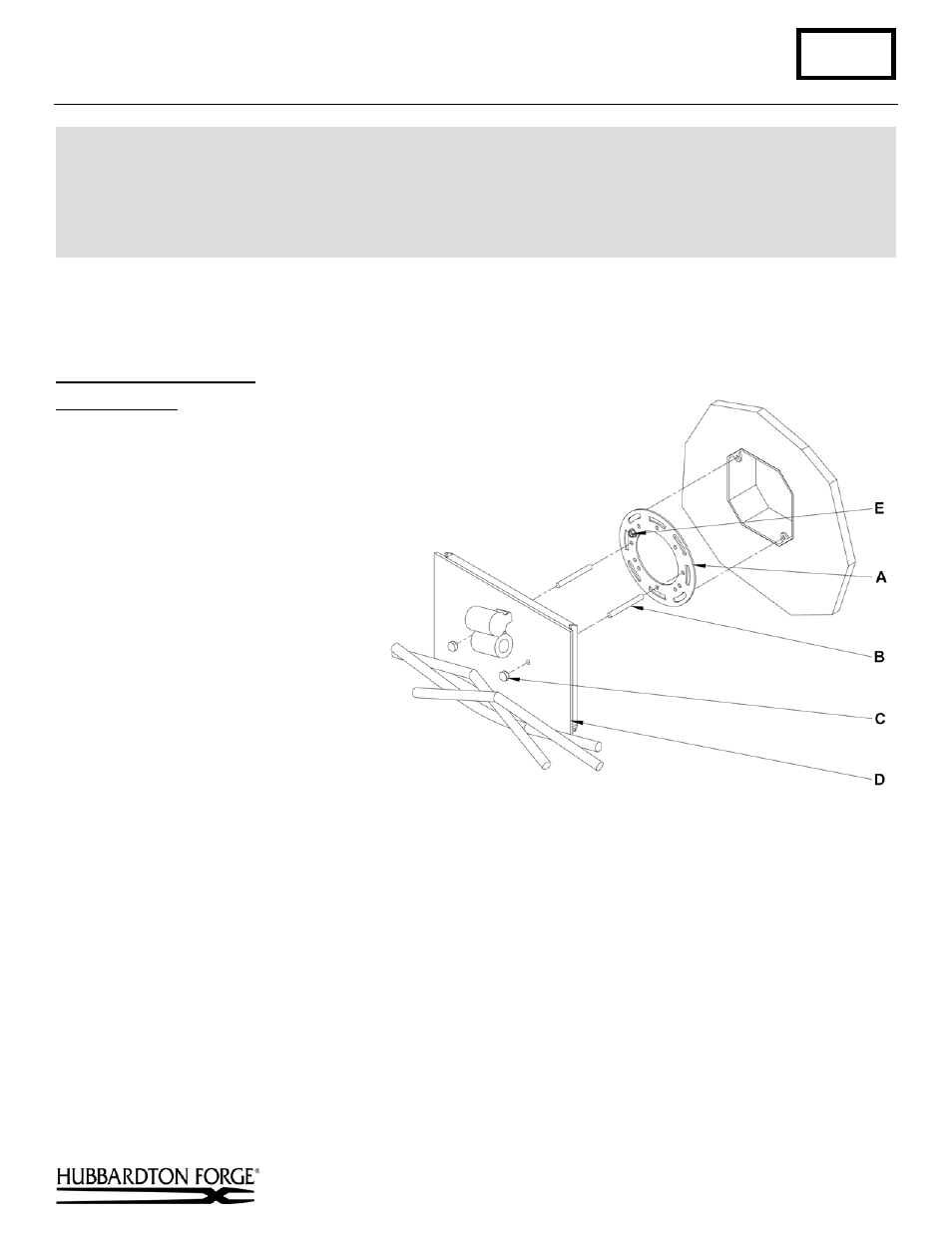

To Mount Fixture to Wall (Figure 1)
Component Parts
A Crossbar
B Threaded Stud (2)
C Knurled Balls (2)
D Fixture Assembly
E Ground Screw
Caution: Be sure power is off at the main
breaker box prior to installation.
1. Carefully unpack the fixture from
the carton.
2. Using two machine screws (not
provided), fasten the crossbar (A) to
the electric box making sure that
fixture mounting holes are level.
Note: A new electric box comes
with screws. When replacing a
fixture, retain the existing screws for
use with the new fixture.
3. Thread studs (B) into the
appropriate holes in the crossbar
(A). Adjust the studs to proper
length to ensure the fixture will fit
snugly to the wall.
4. Hold the fixture assembly (D) close to the wall and using suitable wire connectors, not provided, connect fixture
wires to supply (white to white or ribbed and black to black or smooth). Connect all ground wires to ground
screw.
Caution: Make sure wire connectors are twisted on securely, and no bare wire is exposed.
5. Slide fixture assembly (D) over threaded studs (B) and push firmly to wall, making sure that no wires are pinched
between fixture back and wall. Fasten with knurled balls (C). Be sure threaded studs (B) are fully seated in the
knurled balls (C).
6. See instructions on next page to install shade.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 1)
