Installation Instructions
B280
For Axis Vintage Platinum Sconce 20-6430 Page 2 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 28080
To Assemble Fixture Front and Glass (Figures 3 thru 6)
Component Parts
A Fixture Front
G Glass
H Hex Nut
I
Threaded Stud
J Glass Bracket
K Spring
1. Place glass (H) on flat clean surface oriented as shown in Figure 3.
2. Place fixture front (A) over glass (H) (Figure 4).
3. Holding fixture front (A) and glass (H) securely
rotate them both over so fixture front (A) rests on
flat surface.
4. Remove hex nut (I) from threaded stud (J).
5. Install spring (X) at the top of the glass (T). Push
spring inside of fixture until it rests against the top
ledge of glass (T).
6. Slip glass bracket (K) on to threaded stud (J). See
Figure 6 for orientation.
7. Thread hex nut (I) onto threaded stud (J). Be careful
not to over tighten.
8. Continue with installation instructions following
to install glass.
(continued)

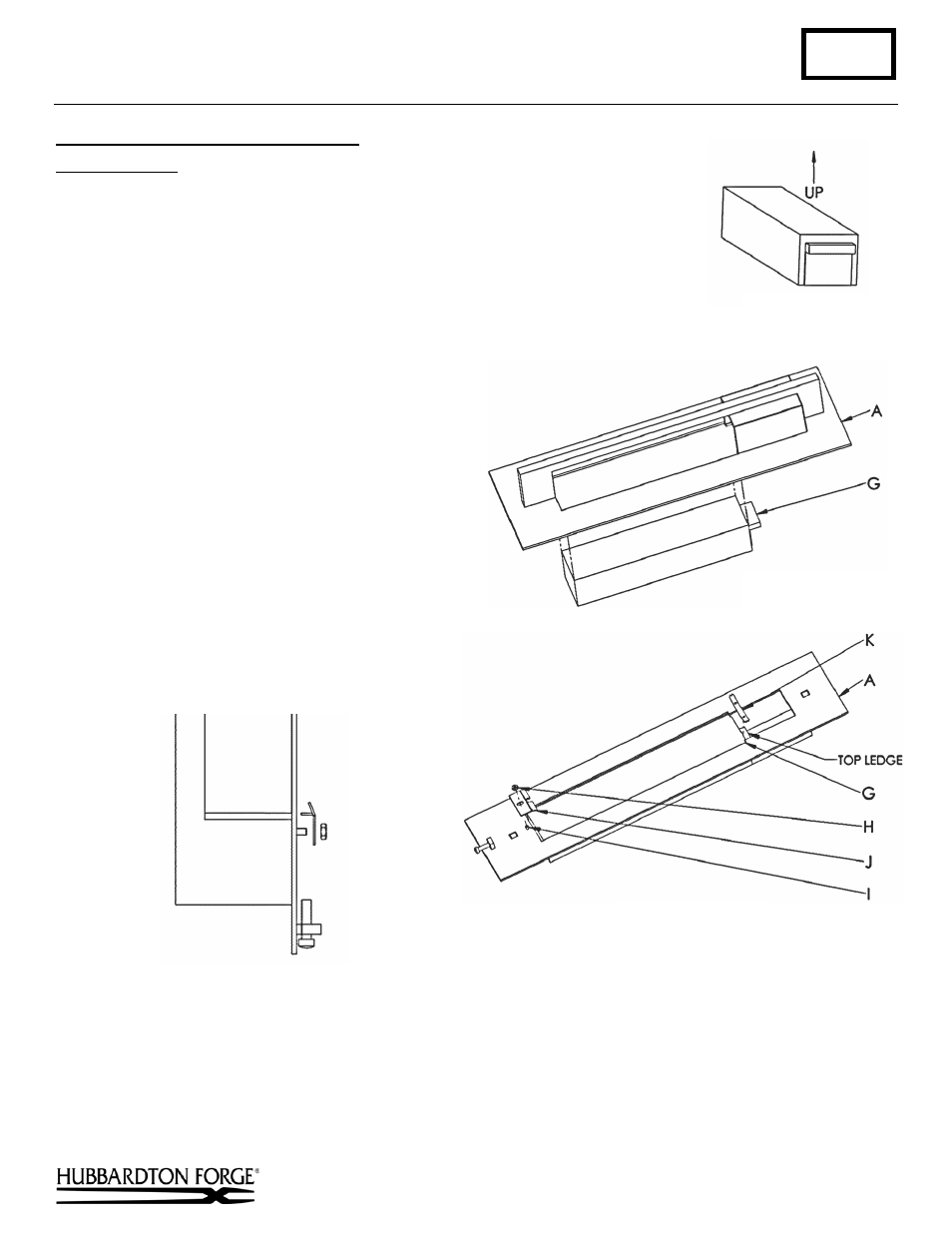

(Figure 4)
(Figure 6)
(Figure 3)
(Figure 5)
