Installation Instructions
B279
Axis Vintage Platinum Sconce 20-6420 & 20-6425 Page 2 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 28078

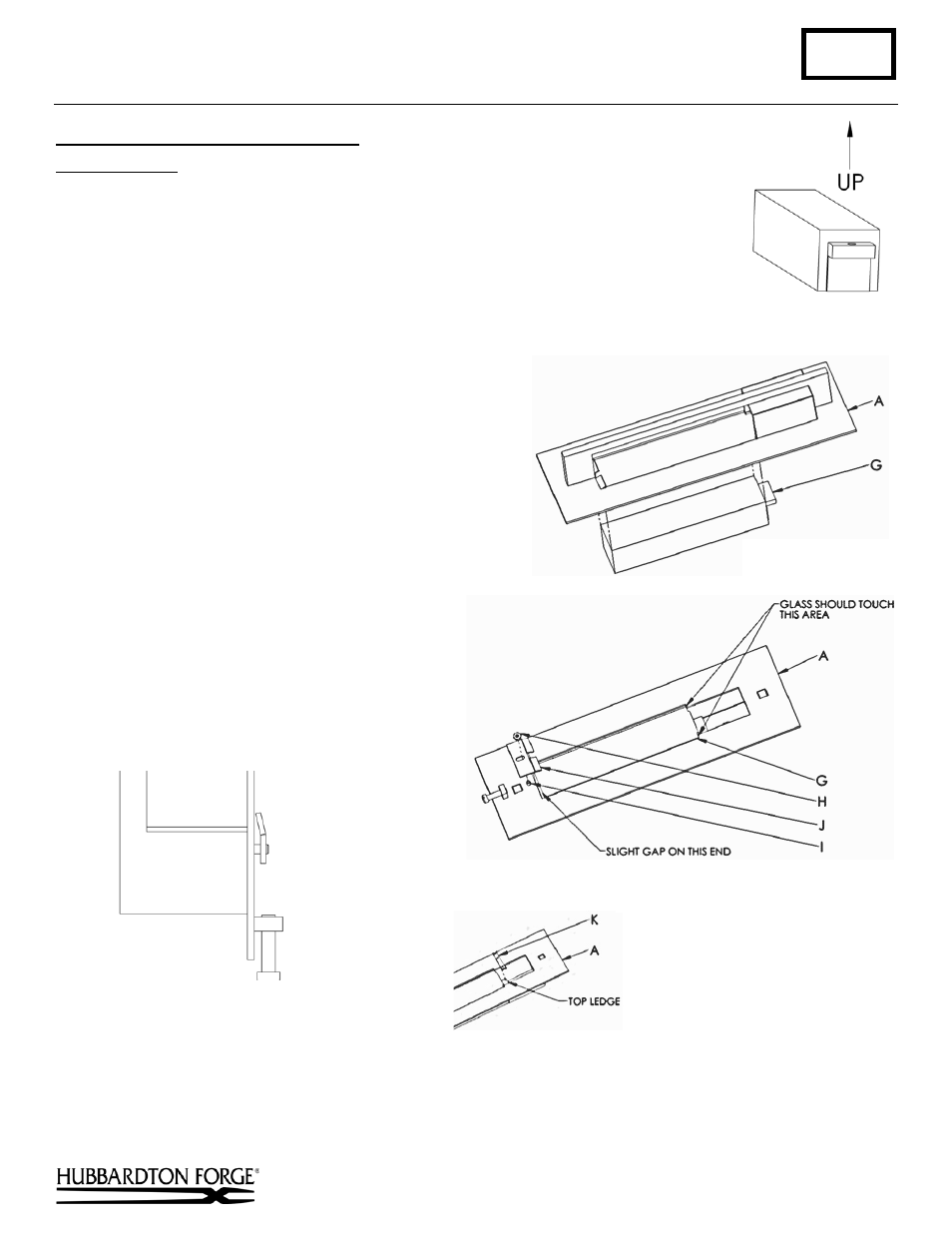

To Assemble Fixture Front and Glass (Figures 3 thru 6)
Component Parts
A Fixture Front
G Glass
H Hex Nut
I
Threaded Stud
J Glass Bracket
K Spring (Used only on 206425)
1. Place glass (G) on flat clean surface oriented as shown in Figure 4.
2. Place fixture front (A) over glass (G).
(Figure 4).
3. Holding fixture front (A) and glass (G) securely rotate
them both
over so fixture front (A) rests on flat surface.
4. Remove hex nut (H) from threaded stud (I).
5. Slide glass (G) up towards the top of the fixture.
6. Install spring (K) at the top of the glass (G). Push spring
inside of fixture until it rests against the top ledge of glass
(G). See Figure 5A.
Note: This is used on product 206425 only.
7. Slip glass bracket (J) on to threaded stud (I). See
Figure 6 for orientation.
8. Thread hex nut (H) onto threaded stud (I) and
tighten until snug. Be careful not to over tighten.
9. Continue with installation instructions following
to install fixture front.
(continued)
(Figure 3)
(Figure 5)
(Figure 7)
(Figure 4)
(Figure 6)
(Figure 5A)
