Installation Instructions

If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!

* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.

Please Note: This fixture is designed to be mounted on a standard wall

surface and may not be suitable for all applications. If installing in a non-

wood frame application, we recommend consulting a qualified builder

or electrician.

To Mount Fixture to Wall

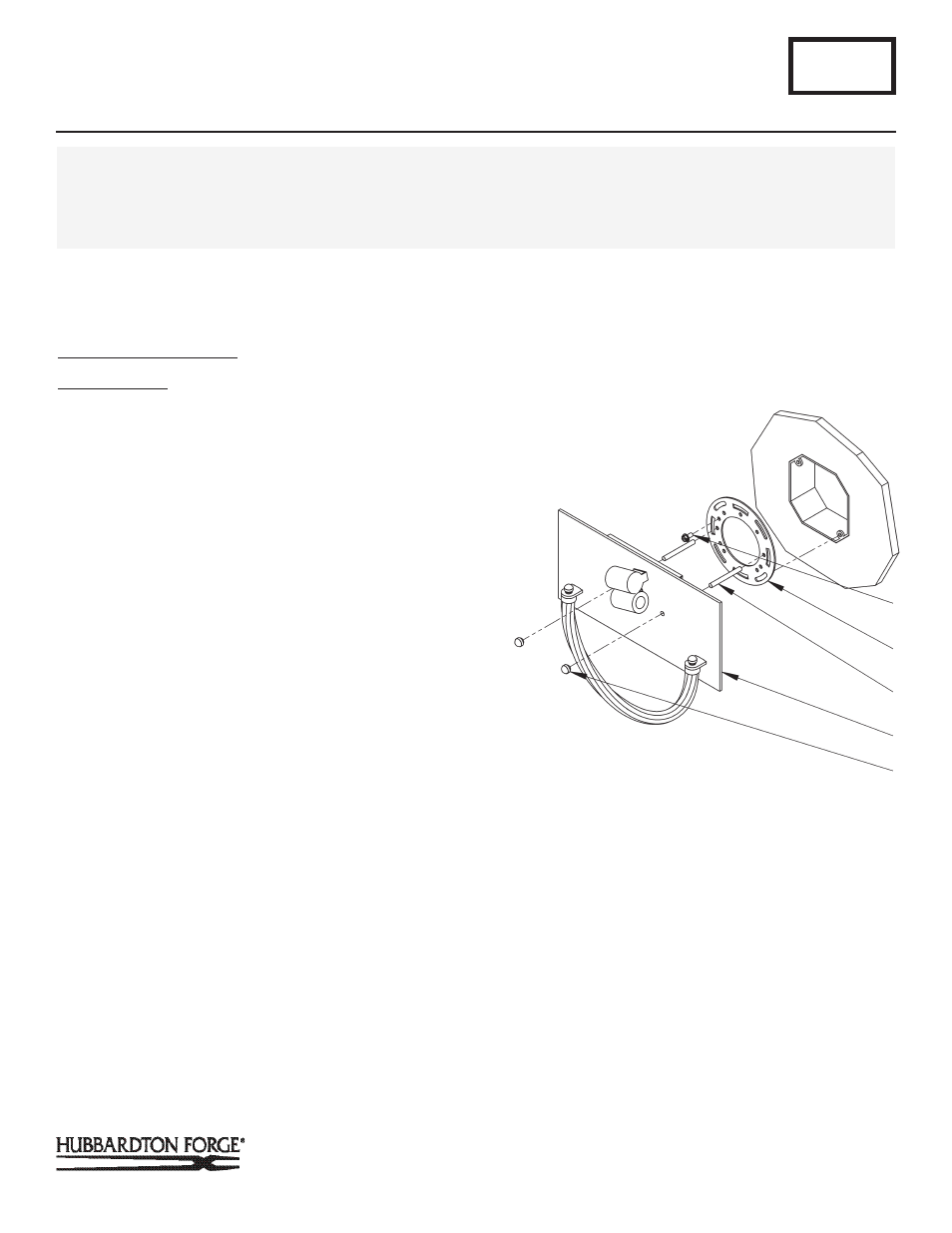

(Figure 1)

Component Parts

A Crossbar

B Threaded Stud (2)

C Knurled Ball (2)

D Fixture Assembly

E Ground Screw

CAUTION: BE SURE POWER IS OFF AT THE MAIN BREAKER BOX
PRIOR TO INSTALLATION.

1. Carefully unpack the fixture from the carton.

2. Using two machine screws (not provided), fasten the cross

bar (A) to the electric box making sure that fixture mounting

holes are level.

Note: A new electric box comes with screws. When replacing a fixture,
retain the existing screws for use with the new fixture.

3. Thread studs (B) into the appropriate holes in the crossbar

(A). Adjust the studs to proper length to ensure the

fixture will fit snugly to the wall.

4. Hold the fixture (D) close to the wall and using suitable

wire connectors, not provided, connect fixture wires to

supply (white to white and black to black). Run a pigtail lead

from crossbar ground screw (E) to the junction box

and connect all ground wires (bare copper or green to bare

copper or green).

CAUTION: MAKE SURE WIRE CONNECTORS ARE TWISTED ON
SECURELY, AND NO BARE WIRE IS EXPOSED.

5. Slide fixture assembly (D) over threaded studs (B) and push

firmly to wall, making sure that no wires are pinched

between fixture back and wall. Fasten with knurled balls

(C). Be sure threaded studs (B) are fully seated in the knurled

balls (C).

B311

Cavo Sconce with Shade 205963

Page 1 of 2

CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH AND
PROPERTY DAMAGE. We recommend installation by a licensed electrician. This product must be installed in accordance with
applicable installation code(s), by a person familiar with the construction and operation of the product and the hazards involved.*

Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.

(Figure 1)
