If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
H U B B A R D T O N F O R G E . C O M
hand-forged, vermont-made lighting and accessories
154 RT. 30 SOUTH • CASTLETON, VERMONT 05735
30063 Rev A
Assembly & Installation Instructions

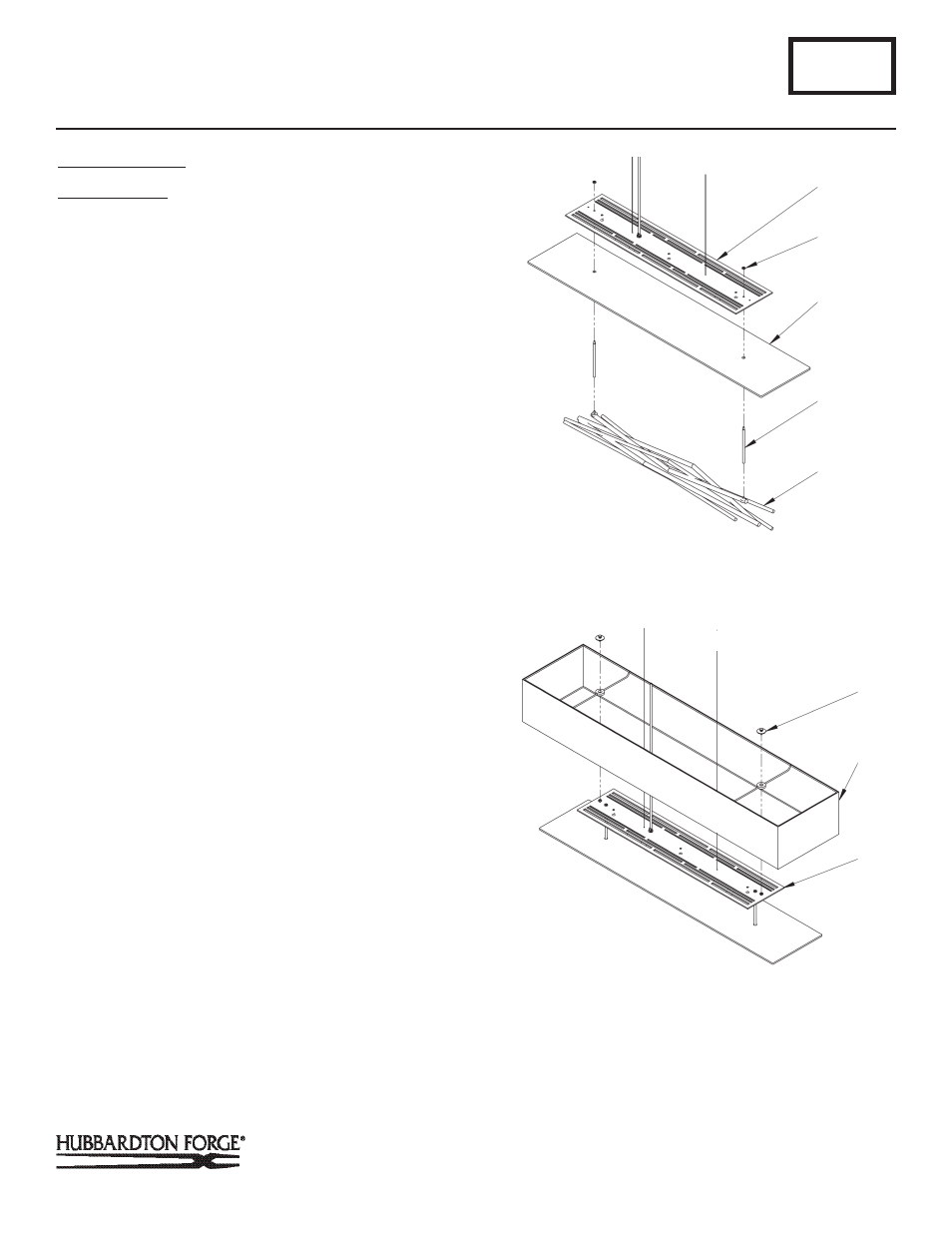

Fixture Assembly (Figures 5 & 6)
Component Parts
F Fixture
K Hex Nut (2)
M Diffuser
N Lower Assembly
O Shade
P Thumb Screw with Washer and Hex Nut (2)
Q Studs
1. Remove hex nuts (K) from studs (Q). Save for later use.
2. Thread studs (Q) into lower assembly (N)
3. Slip diffuser (M) over studs (Q) onto lower assembly (N).
4. Raise lower assembly (N) and diffuser (M) so the threaded
studs (Q) pass through the top of the fixture (F).
5. Install two hex nuts (K) onto the threaded studs (Q) and
tighten.
6. Install bulbs. (Not Included)
7. Remove thumb screw assembly (P) from top of fixture (F).
Save for later use. Thumb screws are shipped installed.
8. Install shade (O) from the bottom and tilt so it will pass
fixture (F). It will be necessary to raise one side of the shade
completely past the diffuser and over towards the canopy
pipes as far as it will go to allow the other side of the shade
to pass the diffuser. Lower the shade so it rests on top of
the fixture.
9. Secure the shade (O) with the thumb screw assembly (P).
10. Restore electricity at main breaker.
A347
Brindille Vintage Platinum Pendant 137663 Page 4 of 4
P
O
F
J
(Figure 5)
(Figure 6)
W
R
S
T
