Installation Instructions
B293
Ethos Sconce 20-7760D & 20-7765D Page 2 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 28305
5. Carefully tuck all wires behind the fixture assembly and inside the wall mount bracket and place the fixture
firmly onto bracket (B) and fasten with #8 black screw (E) and rubber washer (F) on top.
6. Install 2
nd
black screw (E) in bottom of fixture attaching to wall mounting bracket (B).
To Install Glass (Figure 3)
Component Parts
A Fixture Assembly
J
Decorative Glass
K Glass Diffuser
L
Top Bracket
M Set Screw (3)
N Plastic Bumper
1. Set Screws (M) are shipped installed in the fixture. Prior to glass installation,
ensure that all set screws (M) are unscrewed enough to allow installation of
glass.
2. Slide glass diffuser (K) down into the fixture from the top. Diffuser should be
seated in the bottom bracket.
3. Tighten set screw (M) in bottom bracket against glass diffuser (K). Do not
over tighten.
4. If desired, the plastic bumper (N) can be adhered to the top of the decorative
glass (J).
5. Slide decorative glass (J) down into the fixture from the top. Decorative glass
should be seated in the bottom bracket.
6. Slide top bracket (L) into the fixture. Check fit between set screw (M) in top
bracket (L) and glass diffuser (K). Adjust Set Screw as necessary to contact
glass diffuser (K). Note: Removal of Top Bracket is necessary to adjust Set
Screw. Once top bracket is seated in fixture, against the glass, tighten the set
screw (M) in fixture (A) against top bracket (L).
7. Restore electricity at main breaker.
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you
purchased this product. We hope you enjoy your fixture!
*
Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.

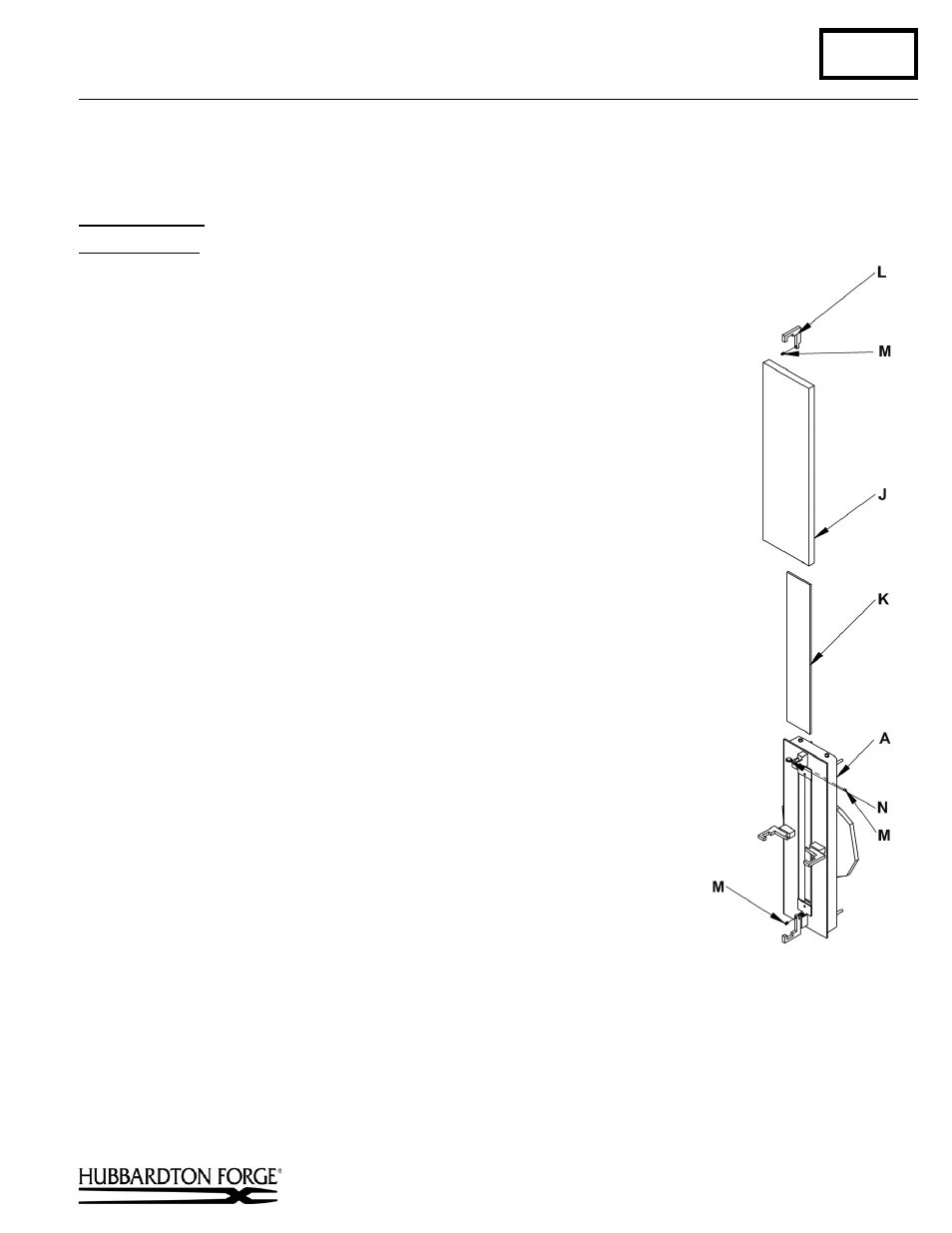

(Figure 3)
