3.2 VLAN Information Window

When a target host is specified and VLAN Manager recognizes it as a device model that it
supports, the following window appears.

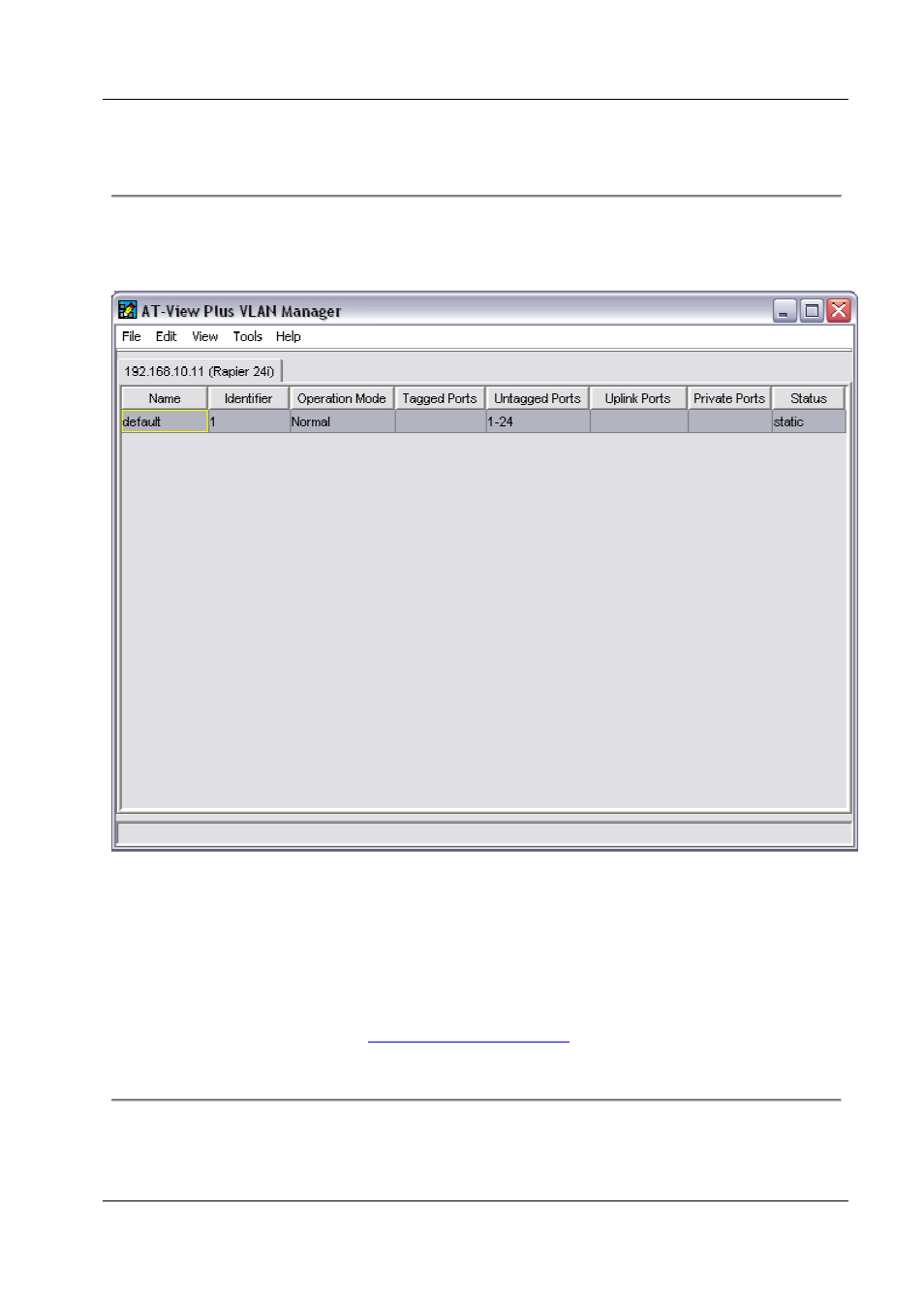

VLAN Information Window

The menu bar provides access to VLAN Manager's operations.

The VLAN Information Window displays the VLAN configuration of the device being managed.
Information is organized in a table format with each row representing one VLAN definition and
each column representing one attribute of the VLAN. VLAN attributes displayed differ from one
device family to another. Refer to

Section 6 - Device Support

for the specific attributes displayed

for each device family.
