4.2 Device Panel
A device panel that reflects the actual ports available on the target host is used to create or
modify a VLAN definition.
Note - The AT-A48/SC, AT-A48/MT and AT-A49 Expansion Modules for the AT-8350GB are
not supported and will not show up on the device panel.

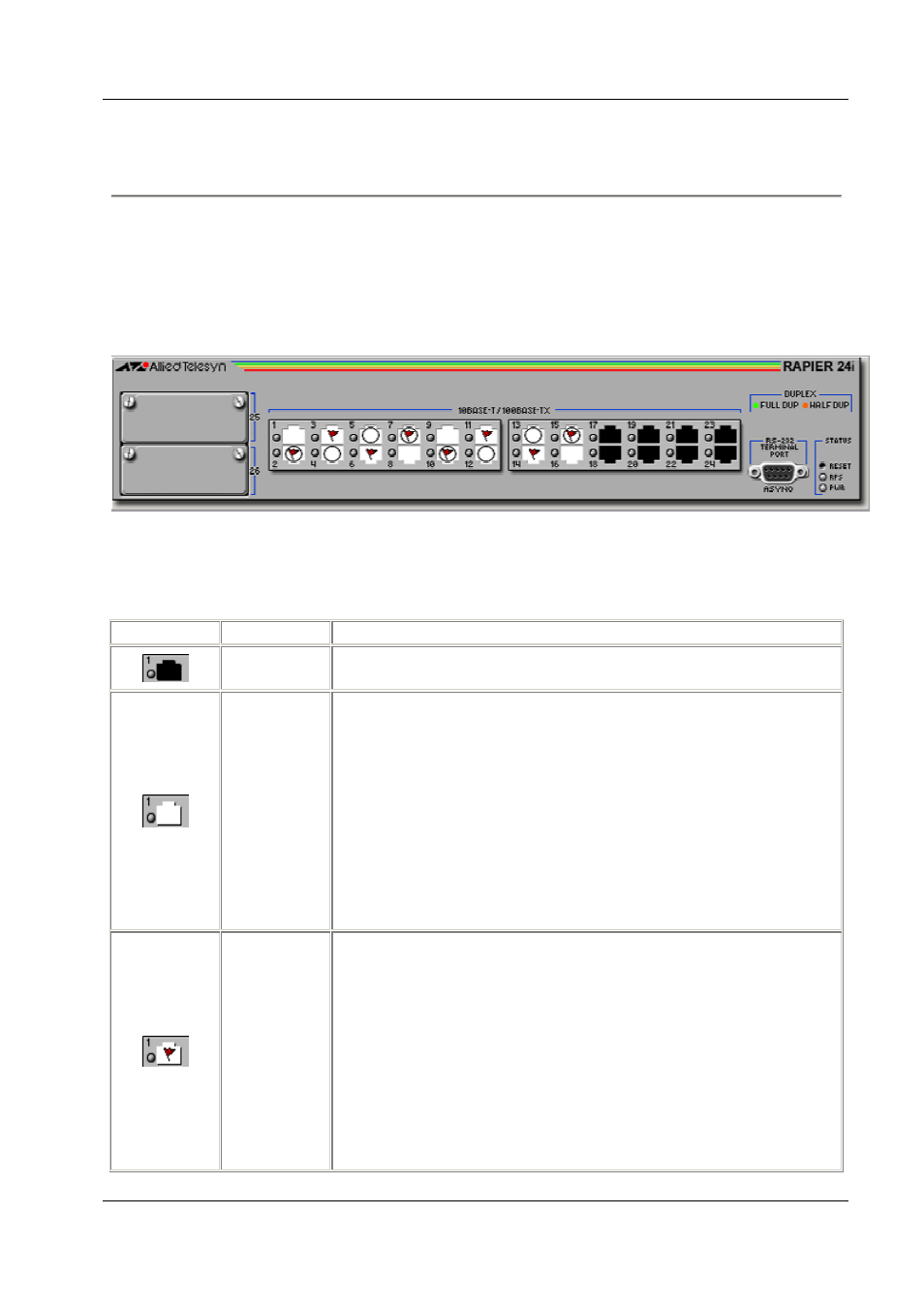

Device Panel
A port can be in any of the following states:
Port Image State Description
Not Selected This port does not belong to the VLAN.
Selected
This port is an untagged member of the VLAN.
Note - For the AT-8200XL Series, this port is considered a member
of the VLAN.
Note - For the AT-8600, AT-8700XL, AT-8800, Rapier, AT-8900
and AT-9900 series, this port is a private untagged member of the
Private VLAN.
Note - For the AT-8900 and AT-9900 series, this port is a customer
port of the Nested VLAN.
Flagged
This port is a tagged member of the VLAN.
Note - For the AT-8200XL Series, this port is considered an
untagged (port-based) member of the VLAN.
Note - For the AT-8600, AT-8700XL, AT-8800, AT-9900, Rapier
and AT-8900 series, this port is a private tagged member of the
Private VLAN.
Note - For the AT-8900 and AT-9900 series, this port is a core
member of the Nested VLAN.
