- You may select multiple VLAN definitions (except for the default VLAN) for deletion.

Refer to

for details on how to select multiple VLAN

definitions.

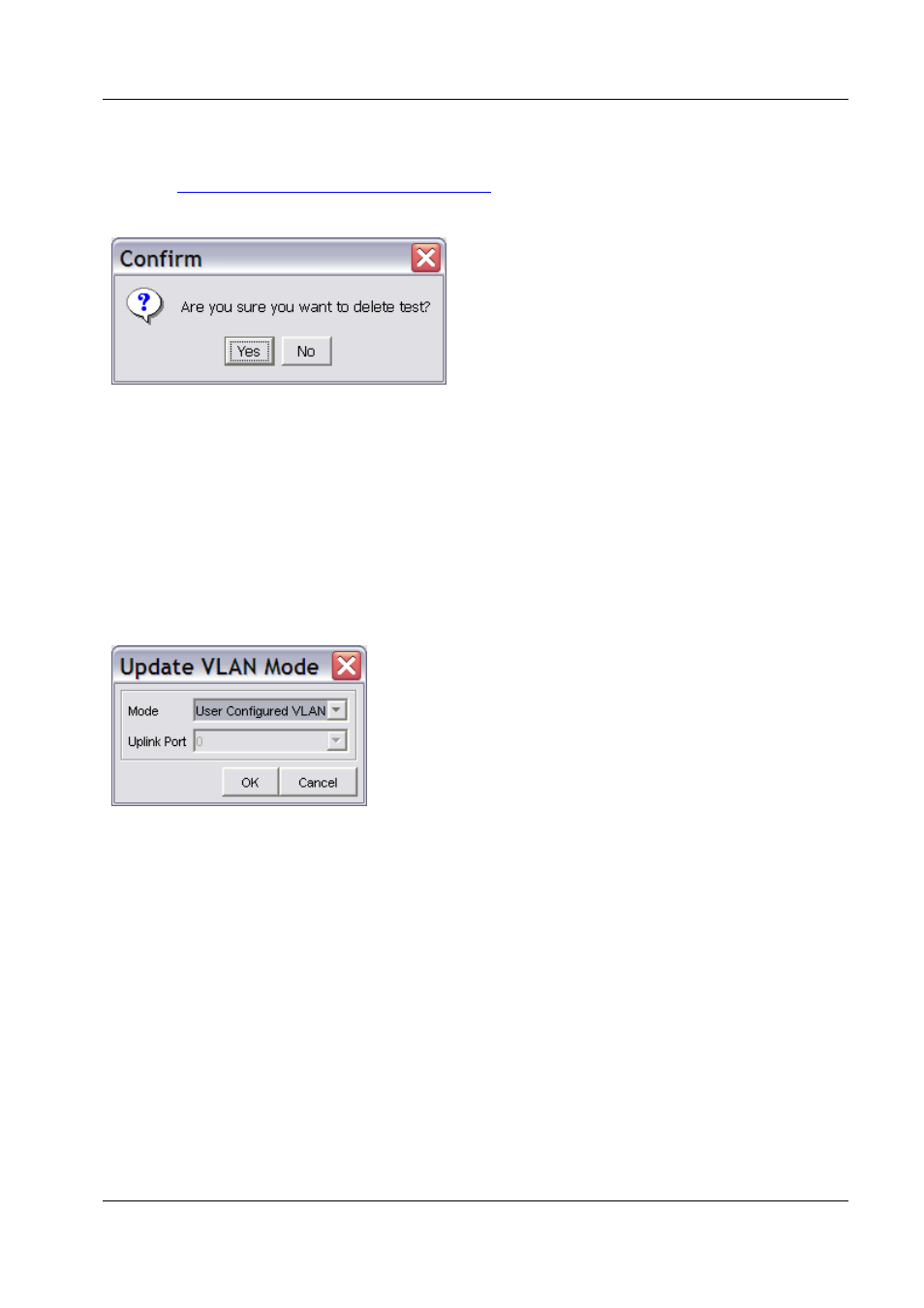

Delete VLAN confirmation dialog box

To remove the selected VLAN definition(s) from the target host and the VLAN Information
Window, click Yes.

5.2.4 Update VLAN Mode

This option opens the Update VLAN Mode dialog box.

Note

- This option is only available to the AT-8000 Series, AT-8200XL Series, AT-8400, AT-

8500 Series, and AT-9400 Series.

Update VLAN Mode dialog box

Mode

Sets the VLAN Mode for the device. The available options are:

• User Configured VLAN
• Multiple VLAN
• 802.1Q Multiple VLAN

Uplink Port

Designates a port as the uplink port that can be connected to a shared device.

Note

- This field does not apply to the AT-8200XL Series.
