5.2 Edit
The Edit menu lets you modify the VLAN configuration of the currently connected device. You
can also save the VLAN configuration of the device to a file.
Topics:
• Add VLAN
• Modify VLAN
• Delete VLAN
• Update VLAN Mode
• Import VLAN
• Export VLAN
5.2.1 Add VLAN
This option opens the Add VLAN dialog box that allows you to create a VLAN definition.

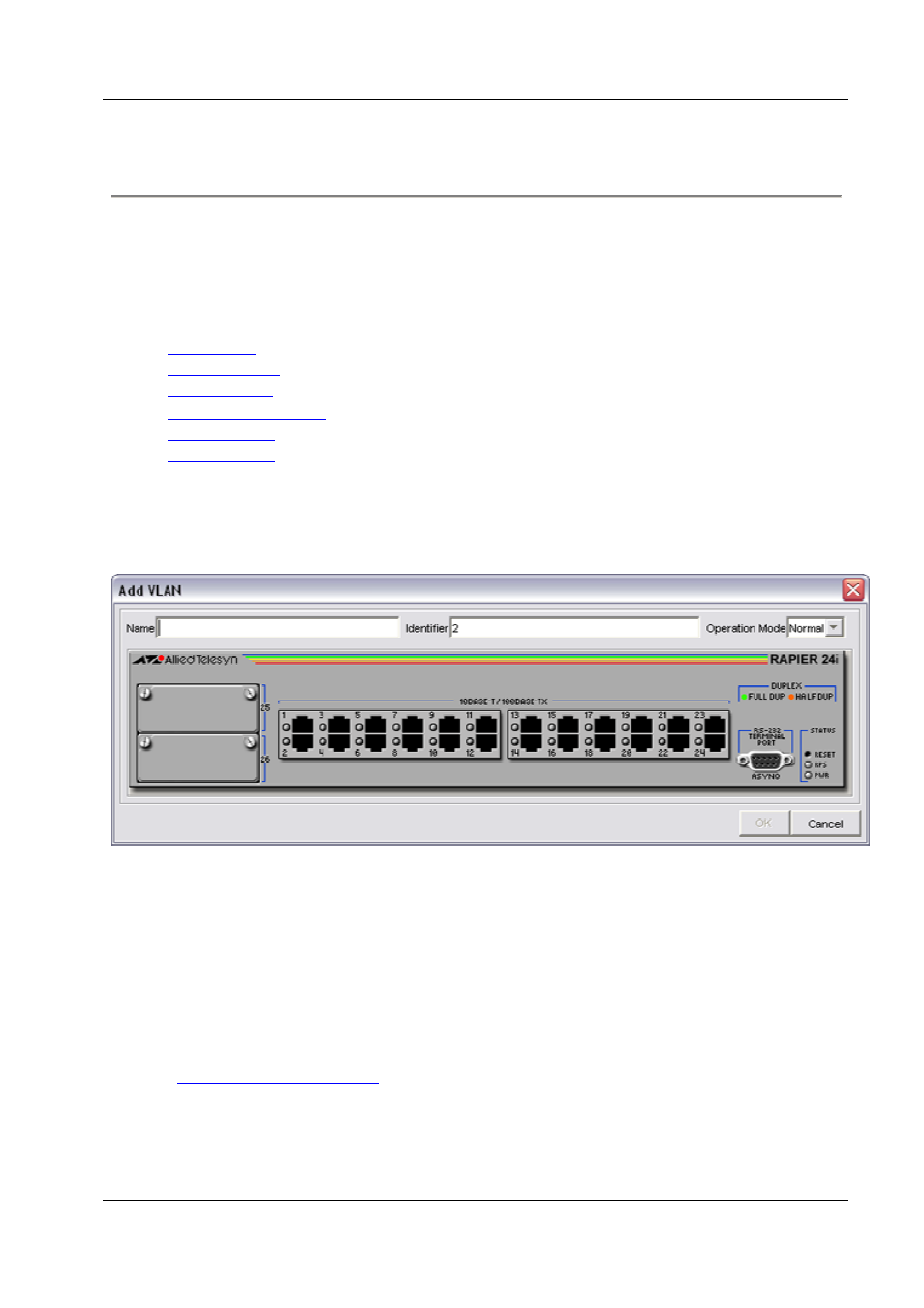

Add VLAN dialog box
5.2.1.1 Input Fields
The Input Fields are the attributes that serve as VLAN creation parameters. These fields differ
from one device family to another. In the illustration above, the device panel shown is for a
Rapier 24i. Since the required Input Fields for the Rapier Family are Name, Identifier, and
Operation Mode, these are the fields that are displayed in the Add VLAN dialog box.
Refer to Section 6 - Device Support for details on the specific Input Fields available for each
device family.
