Figure 36: removing the dust plug from the s2 slot – Allied Telesis x510 Series User Manual
Page 83
x510 Series Installation Guide for Virtual Chassis Stacking
83

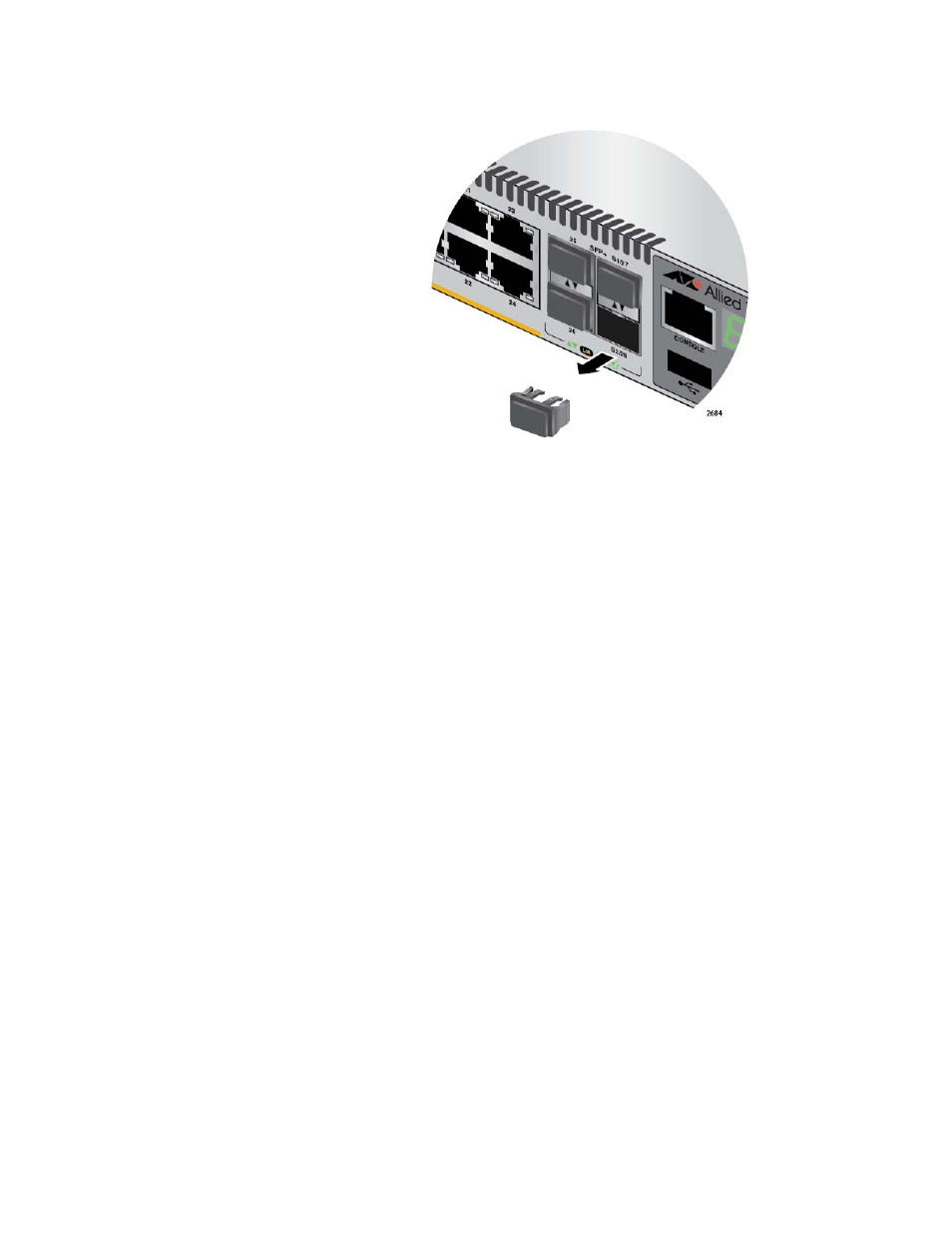

Figure 36. Removing the Dust Plug from the S2 Slot
6. Remove the dust cover from the connector on the other end of the
transceiver.
7. Position the transceiver with the release tab on the bottom and slide it
into the slot until it clicks into place, as shown in Figure 37 on page 84.
