Figure 22: attaching the equipment rack brackets – Allied Telesis x510 Series User Manual
Page 70
Chapter 4: Installing the Switches on a Table or in an Equipment Rack
70
3. Turn the switch over.
4. Attach the two rack mount brackets to the sides of the switch using the
eight bracket screws included with the unit. Figure 22 on page 70 and
Figure 23 on page 71 illustrate the four possible bracket positions.

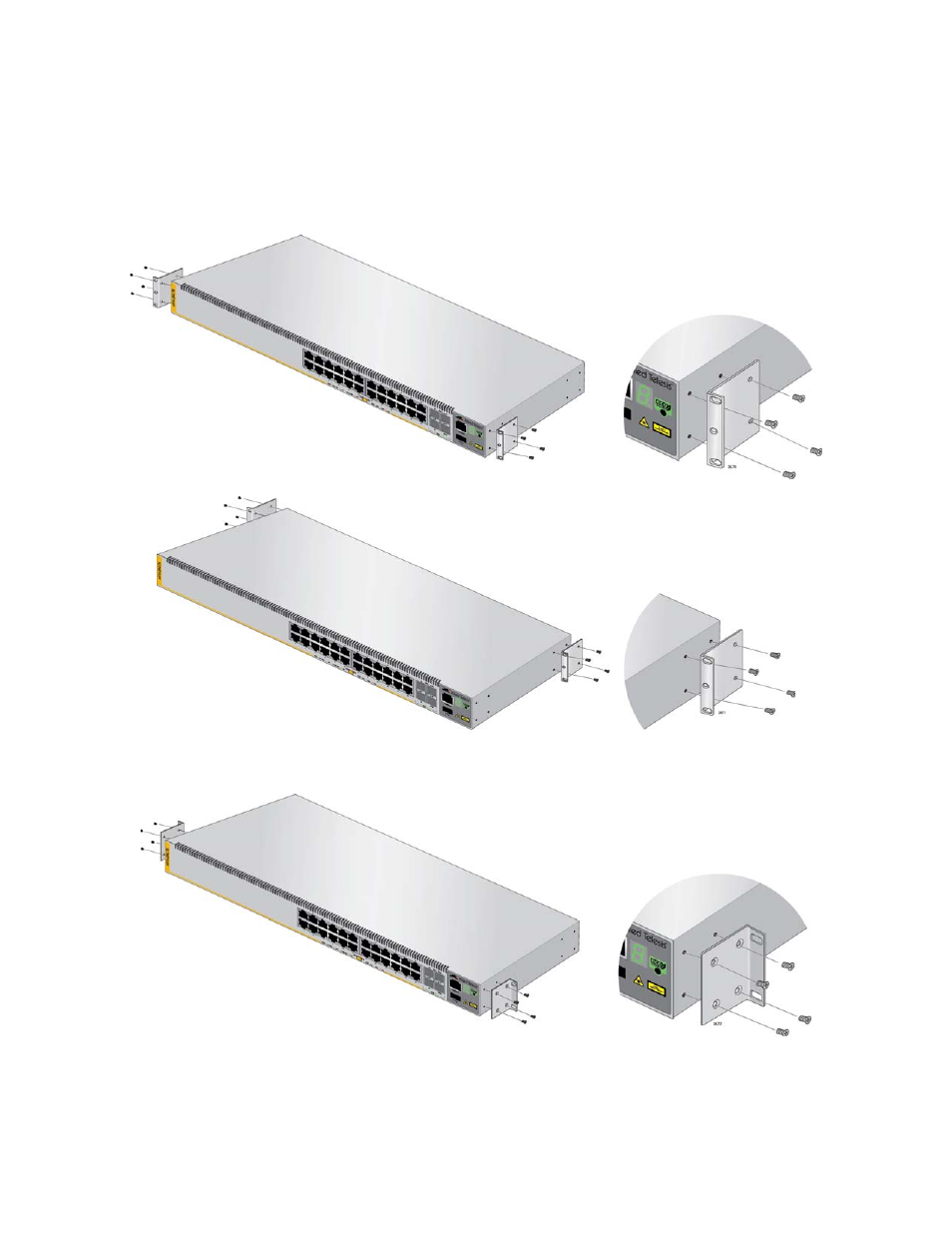

Figure 22. Attaching the Equipment Rack Brackets
