x510 Series Installation Guide for Virtual Chassis Stacking
105
Installing SFP
Modules in the
AT-x510-28GSX
Switch
To install SFP transceivers in slots 1 to 24 of the AT-x510-28GSX Switch,
perform the following procedure:
1. Remove the dust plug from a transceiver slot on the switch. Refer to
Figure 51.

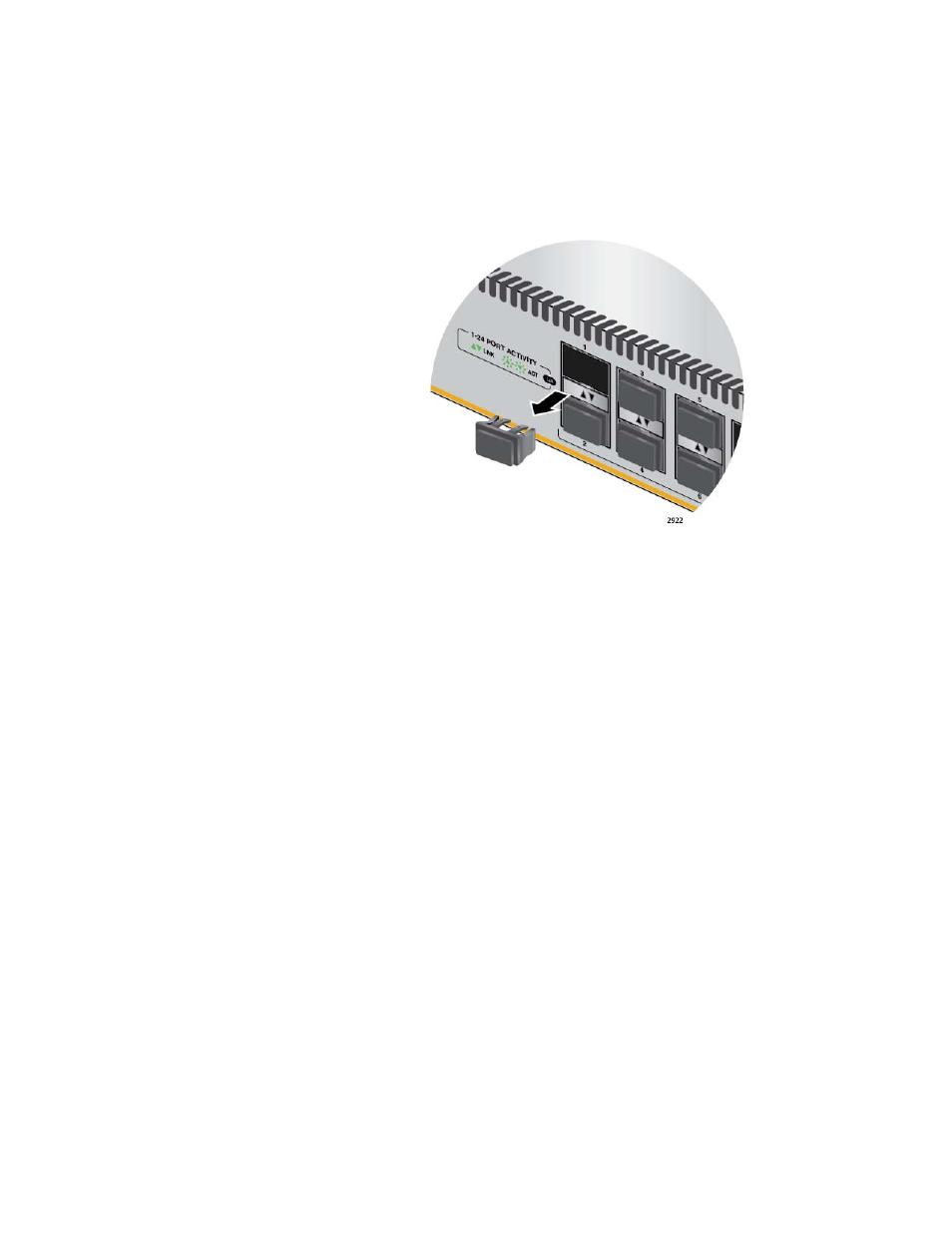

Figure 51. Removing the Dust Plug from an SFP Slot
2. Remove the transceiver from its shipping container and store the
packaging material in a safe location.
3. If you are installing the transceiver in a top slot, position the transceiver
with the Allied Telesis label facing up. If you are installing the
transceiver in a bottom slot, position the transceiver with the label
facing down.
4. Slide the transceiver into the slot until it clicks into place, as shown in
Figure 52 on page 106.
