Certifications
RJ-45 Twisted Pair Port Pinouts
Figure 61 illustrates the pin layout of the RJ-45 connectors and ports.

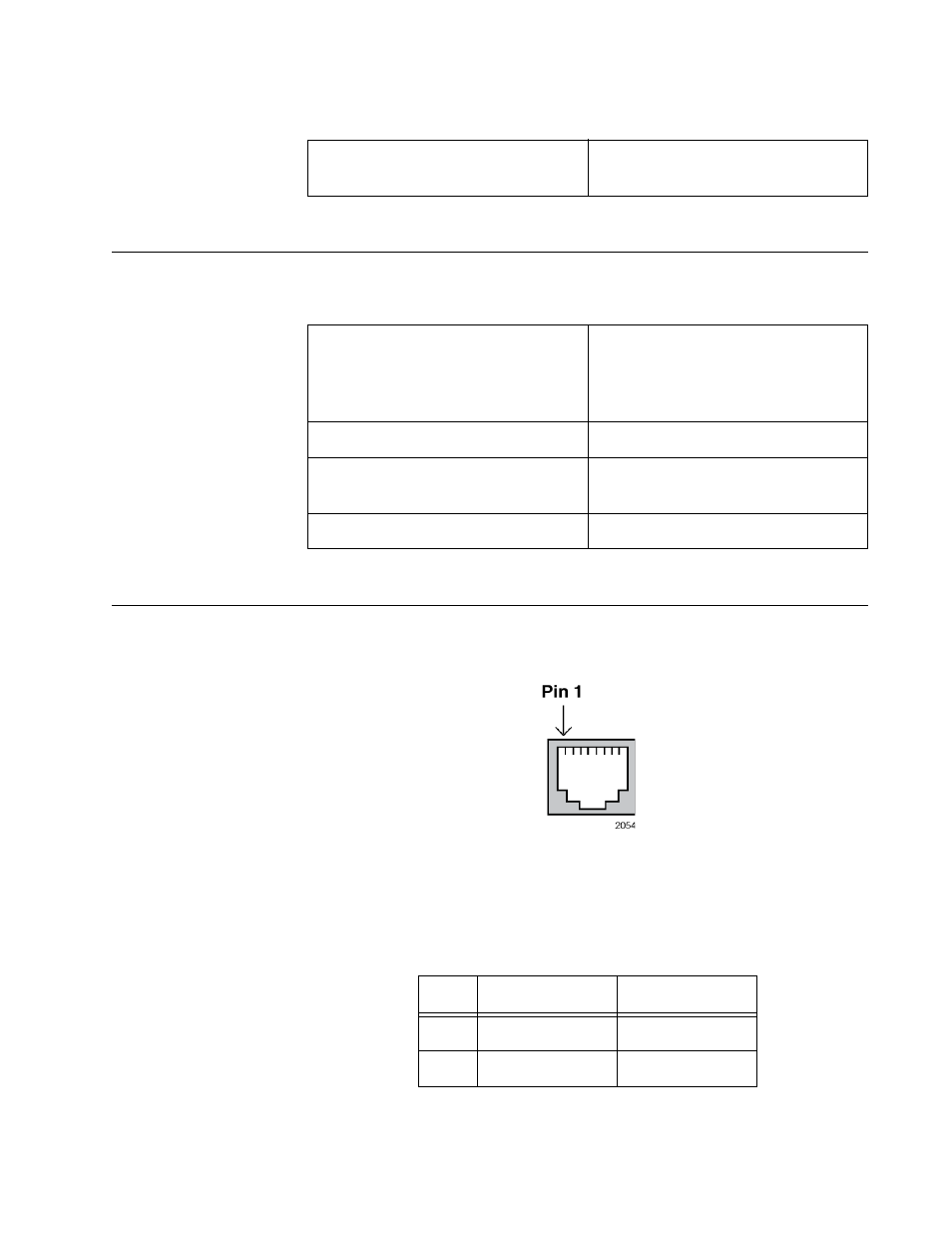

Figure 61. RJ-45 Socket Pin Layout (Front View)
Table 19 lists the pin signals for 10 and 100 Mbps.
AT-x510-52GPX AC model: 100-240 VAC,3.0A
maximum, 50/60 Hz per input
Table 17. Input Voltages (Continued)
Table 18. Product Certifications
EMI (Emissions) FCC Class A, EN55022 Class A,
EN61000-3-2, EN61000-3-3, VCCI
Class A, CISPR Class A, C-TICK,
CE
EMC (Immunity) EN55024
Electrical and Laser Safety EN60950-1 (TUV), UL 60950-1
(
C
UL
US
), EN60825
Compliance Marks CE,
C
UL
US
, TUV, C-Tick
Table 19. Pin Signals for 10 and 100 Mbps
Pin MDI Signal MDI-X Signal
1 TX+ RX+
2 TX- RX-
