Symmetra Power Array

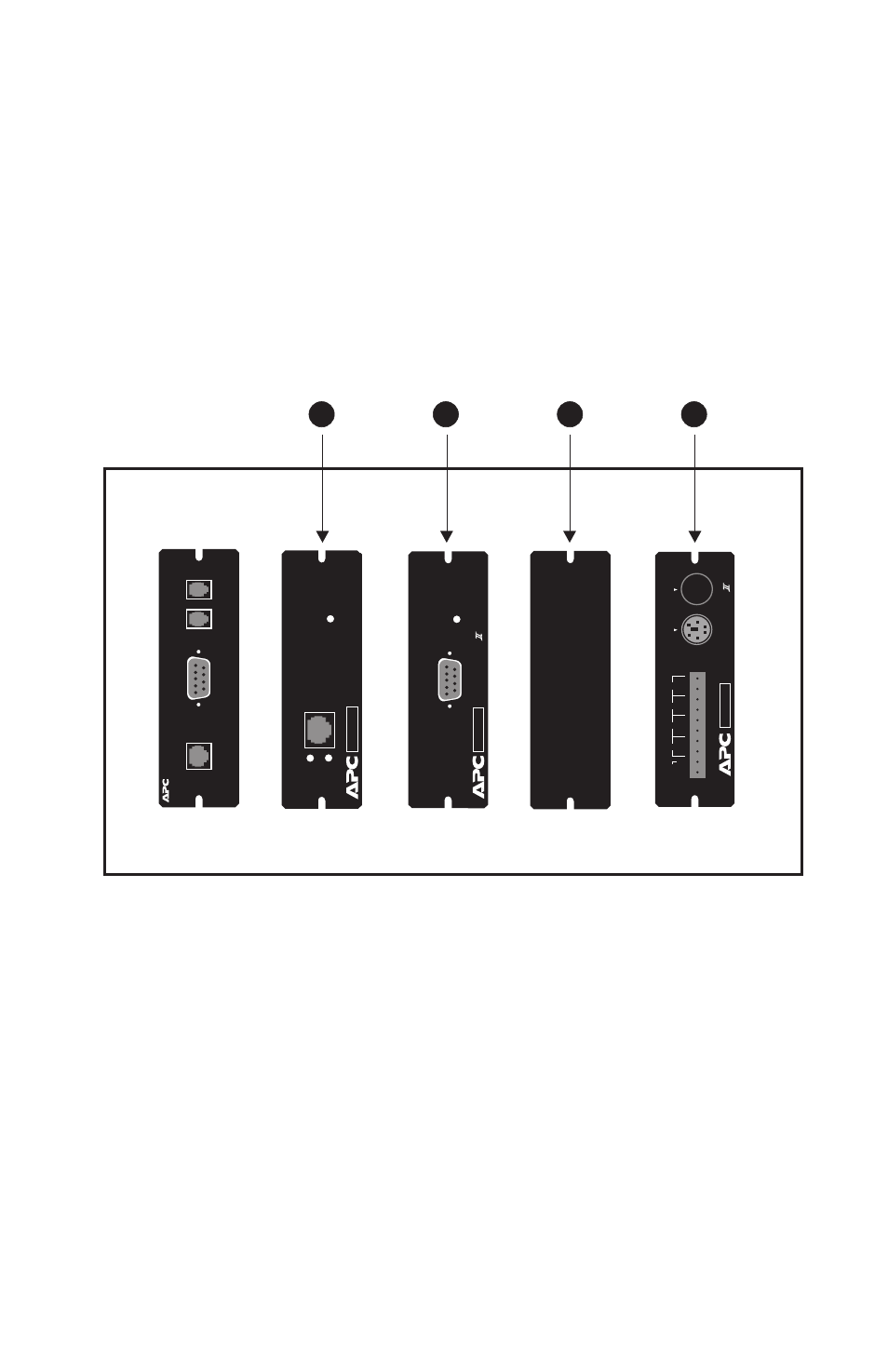

For installation of multiple SmartSlot devices in the Symmetra Power
Array, refer to the numbering in the figure that follows. Note that the
PowerNet
SNMP Adapter is installed in slot #4, Call- UPS II in #3, no
device in #2, and Measure-UPS in #1.
If you are using an external SmartSlot housing (Expansion Chassis or
Triple Chassis) in conjunction with a Symmetra Power Array, install the
devices with higher priority in the external slot(s). Refer to the earlier
Triple Chassis section, if applicable.
Smart
Slot
Smart
Slot
Probes
1 2
Sensor Zones
AP9612 Measure-UPS™
1 2 3 4
GND
Management P
o
rt
Status
AP9608 Call-UPS Remote Mgt De
vice
AP9608 Call-UPS Remote Mgt De
vice
Smart
Slot
Smart
Slot
Smart
Slot
Smart
Slot
Reset
Status
Link - RX/TX
AP9605 P
o
w
erNet™ SNMP Adapter™
Computer
Batter
y Comm
unications
Comm.
1
Comm.
2
Interf
ace
Displa
y
Comm.
4 1 2 3
Daisy Chains
If you have increased your SmartSlot capacity by daisy-chaining
Expansion Chassis or Triple Chassis, install the PowerNet
SNMP
Adapter and Call- UPS II in the highest-numbered and second-highest-
numbered slots, respectively, of the chassis installed farthest from the
UPS .
Smart-UPS and Matrix-UPS
If your APC UPS has only one SmartSlot, install the low-priority devices
in the
UPS SmartSlot and use an external SmartSlot housing (Expansion
Chassis or Triple Chassis) for the device(s) with higher priority. Refer to
the earlier Triple Chassis section, if applicable.
