5
9. Click OK to accept the Scan List
10. Click OK to Accept the Protocol Configuration.
You are now done with the protocol setup

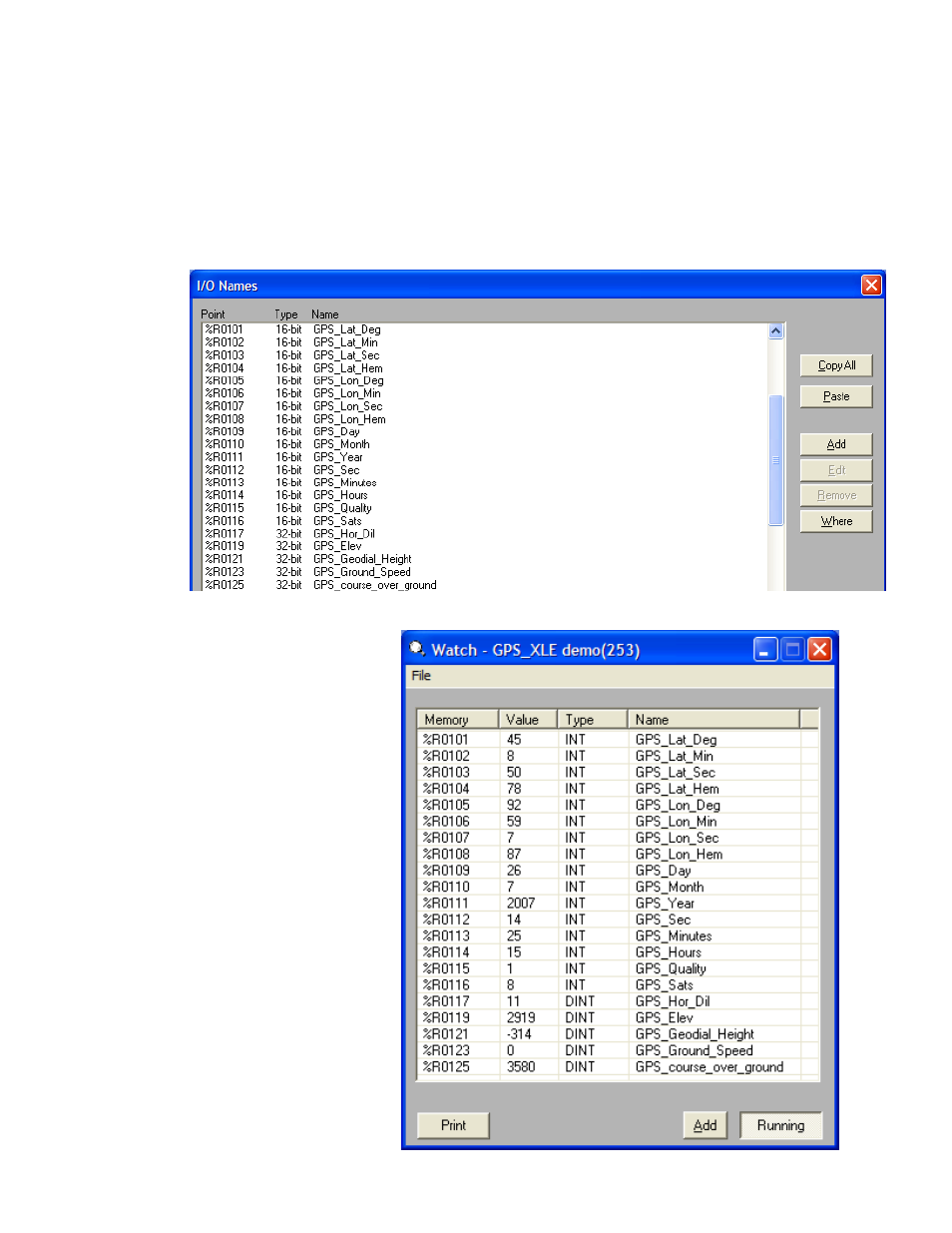

11. The next step is to do the I/O Name setup for all of the GPS data. This data will start at %R101 and go
through %R125.
See Table below for actual GPS data descriptions: (The GPS Manual will also give you detailed
descriptions, Ranges, and engineering units for each data point)
12. Create a Data Watch window
with all of the GPS data in it.
See this to the right:
