3

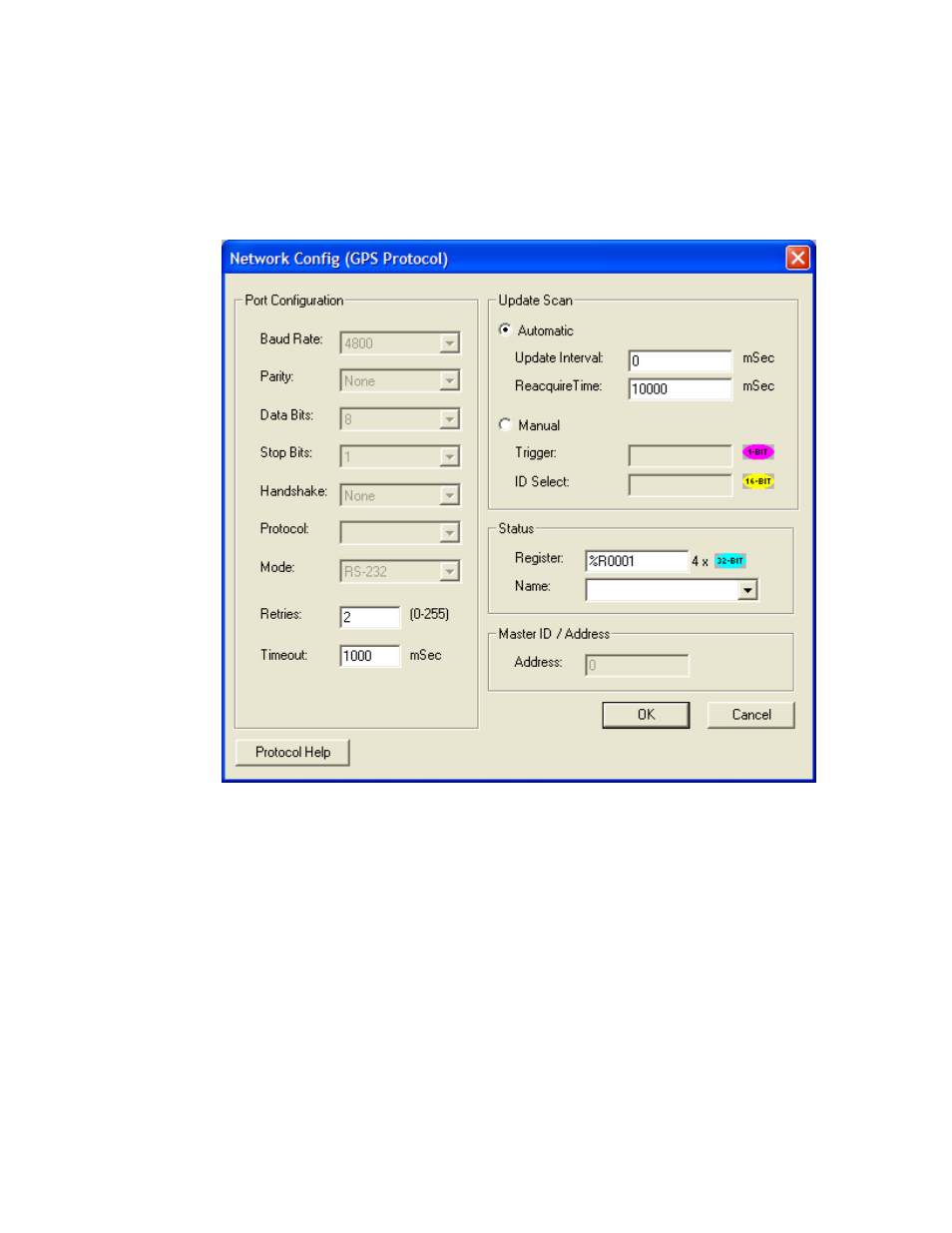

5. The first step is to set the Network Setup parameters. This is to configure the comm. Port settings.
Baud Rate, Parity, Data Bits, Stop Bits, Handshaking, Protocol, RS232 or RS485, Scan Update Rate,
Timeout and retries. All of these parameters are defaulted to the correct parameters. The only thing you
need to set in this box is the Status Registers. I used %R1 for this demo. This will give you
information about the status of the communications between the GPS and the XLe on MJ2.
