Wiring Diagram
GPS XLe(MJ2)
1 Yellow (Not Used)
2 Red ---------------------------------------------- Supply Voltage 5 VDC
3 Black (small) ---------------------------------- 6 Ground
4 White ------------------------------------------- 7 RXD
5 Black (Thick) ---------------------------------- Supply Voltage Common (0V)
6 Green -------------------------------------------- 8 TXD
Configuration inside of CsCAPE (v8.10 or higher)
Use comm. Port 2 (MJ2) on the XLe. This will keep you programming port (MJ1) available for CsCAPE programming,
diagnostics, and troubleshooting.
Use CsCAPE to set MJ2 protocol to the GPS protocol
1. Open CsCAPE
2. Set the hardware configuration to your
model of XLe

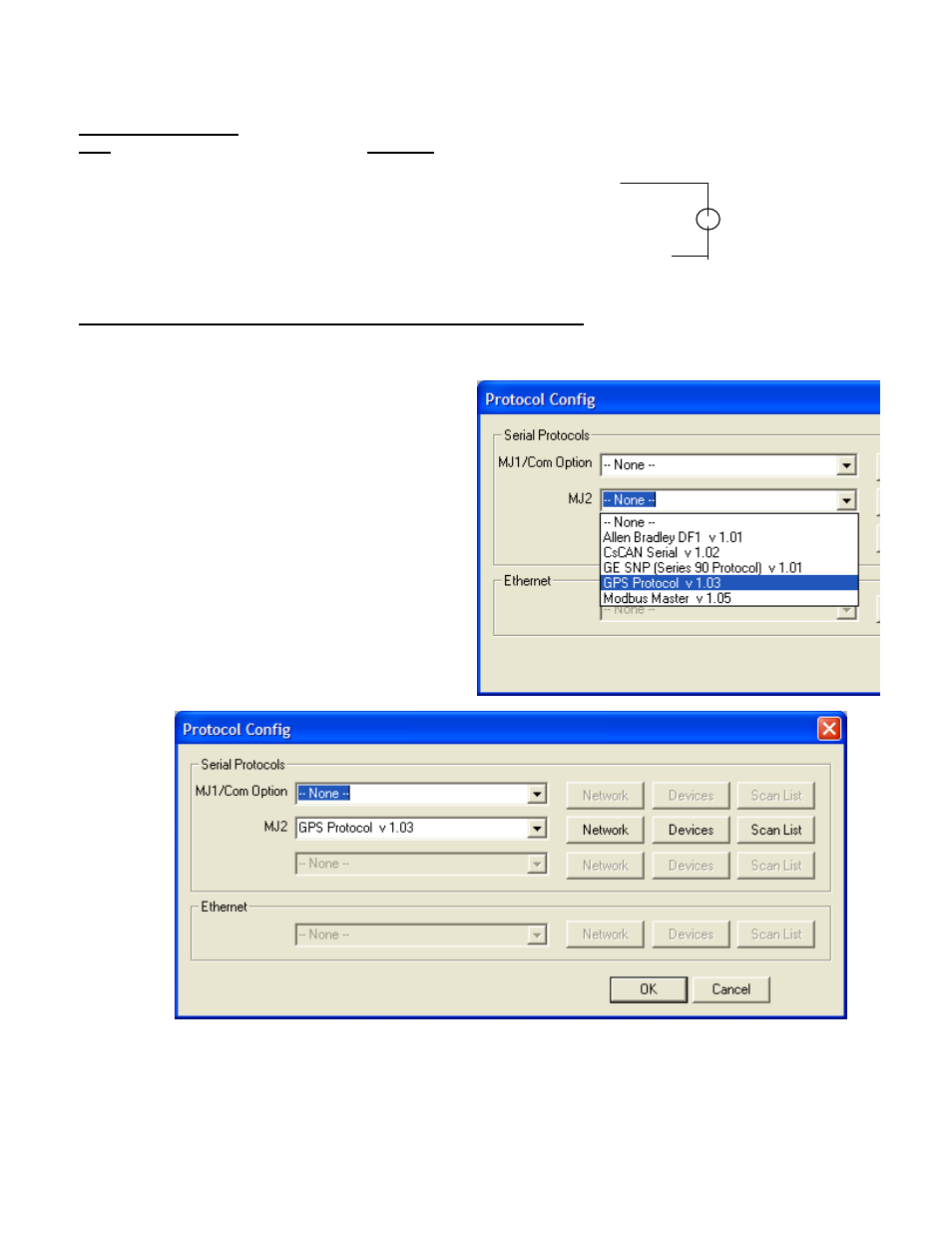

3. Select Program then Protocol Config…
4. From the drop down list on MJ2 select
GPS Protocol v1.03
This will add the GPS Protocol to the MJ2
field. You are now ready to start the three
steps required for any protocol
configuration
5 VDC
+
-
