2.2

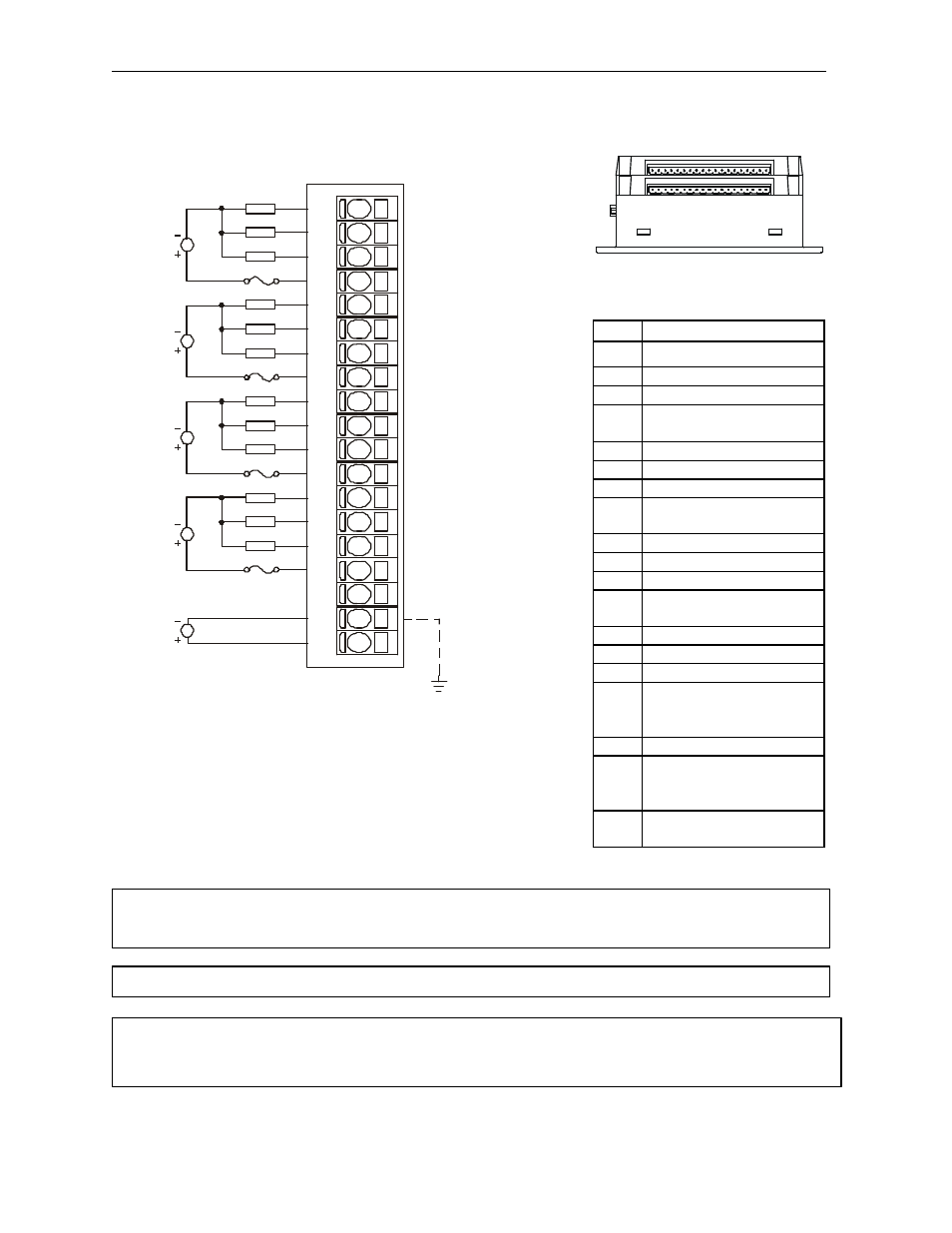

Output Connector Wiring
Pin Signal
*
Q1 Output 1
Q2 Output 2
Q3 Output 3
C4
Output common for
Outputs 1-3 (Isolated)
Q4 Output 4
Q5 Output 5
Q6 Output 6
C5
Output common for
Outputs 4-6 (Isolated)
Q7 Output 7
Q8 Output 8
Q9 Output 9
C6
Output common for
Outputs 7-9 (isolated)
Q10 Output 10
Q11 Output 11
Q12 Output 12
C7
Output common for
Outputs 10-12
(isolated)
NC No Connection
VC
Relay power common,
connected internally to
digital ground
V+
Relay power, 20-
28VDC, 100ma nominal
*
Mini Output Connector
(bottom connector only) – Shows
corresponding I/O pin location
Warning: Connecting high voltage to any I/O pin may cause high voltage to appear at other I/O pins.
Warning: To protect the module and associated wiring from load faults, use external fuse ( 10 A ) as
shown.
Warning: Wiring the line side of the AC source to loads connected to outputs 1 through 12 and the
neutral side of the AC source to the output common(s) would create a Negative Logic
condition, which may be considered an unsafe practice.
*
LOAD
LOAD
20-28VDC
Q1
Q2
Q3
C4
V+
Q10
Q11
Q12
C7
NC
LOAD
LOAD
LOAD
LOAD
001OCX001
5-250VAC
OR
5-30VDC
N
L
5-250VAC
OR
5-30VDC
N
L
LOAD Q4
Q5
Q6
C5
LOAD
LOAD
5-250VAC
OR
5-30VDC
N
L
LOAD Q7
Q8
Q9
C6
LOAD
LOAD
5-250VAC
OR
5-30VDC
N
L
VC
