Section 2. Installation
5
SETUP
To setup the unit for operation, perform the following steps:
1.
From the Windows Program Manager, open the InSpec 9000 program. (If more details
are required for opening the program, refer to the next section, Operation.)
2.
After the opening screen briefly flashes on the screen and the main menu appears, click
on the Read Card button. If the unit is not set up, the dialog box shown in Figure 2-2 will
appear. Error messages are listed in Appendix D.

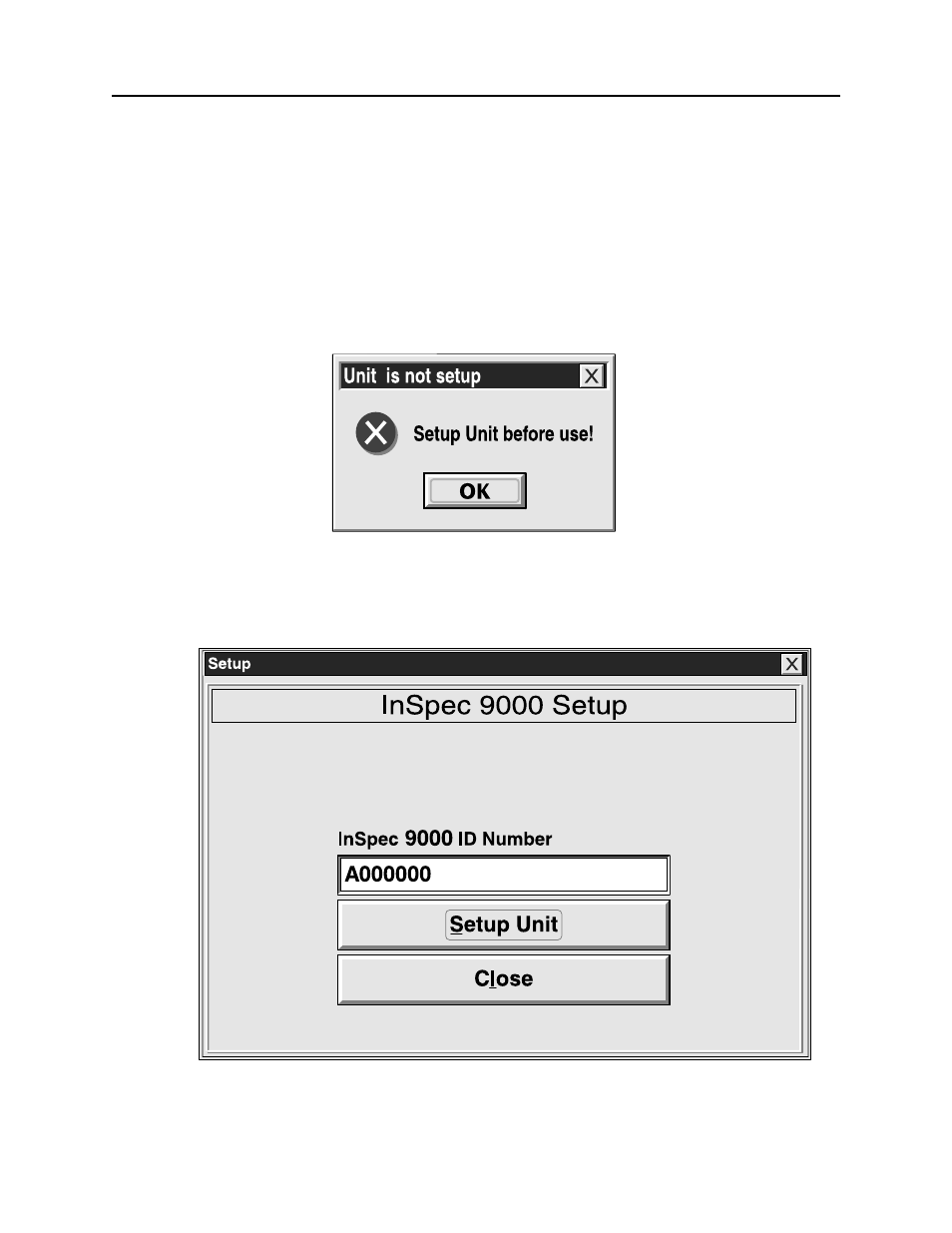

Figure 2-2. Unit Not Set Up
3. From the Main Menu select Setup, select Hardware, then Setup and the following screen
will appear:
Figure 2-3. Setup Screen
