the settings. The

Decoded Header Element

section in the bottom right corner of the

dialog shows the information extracted from the header.

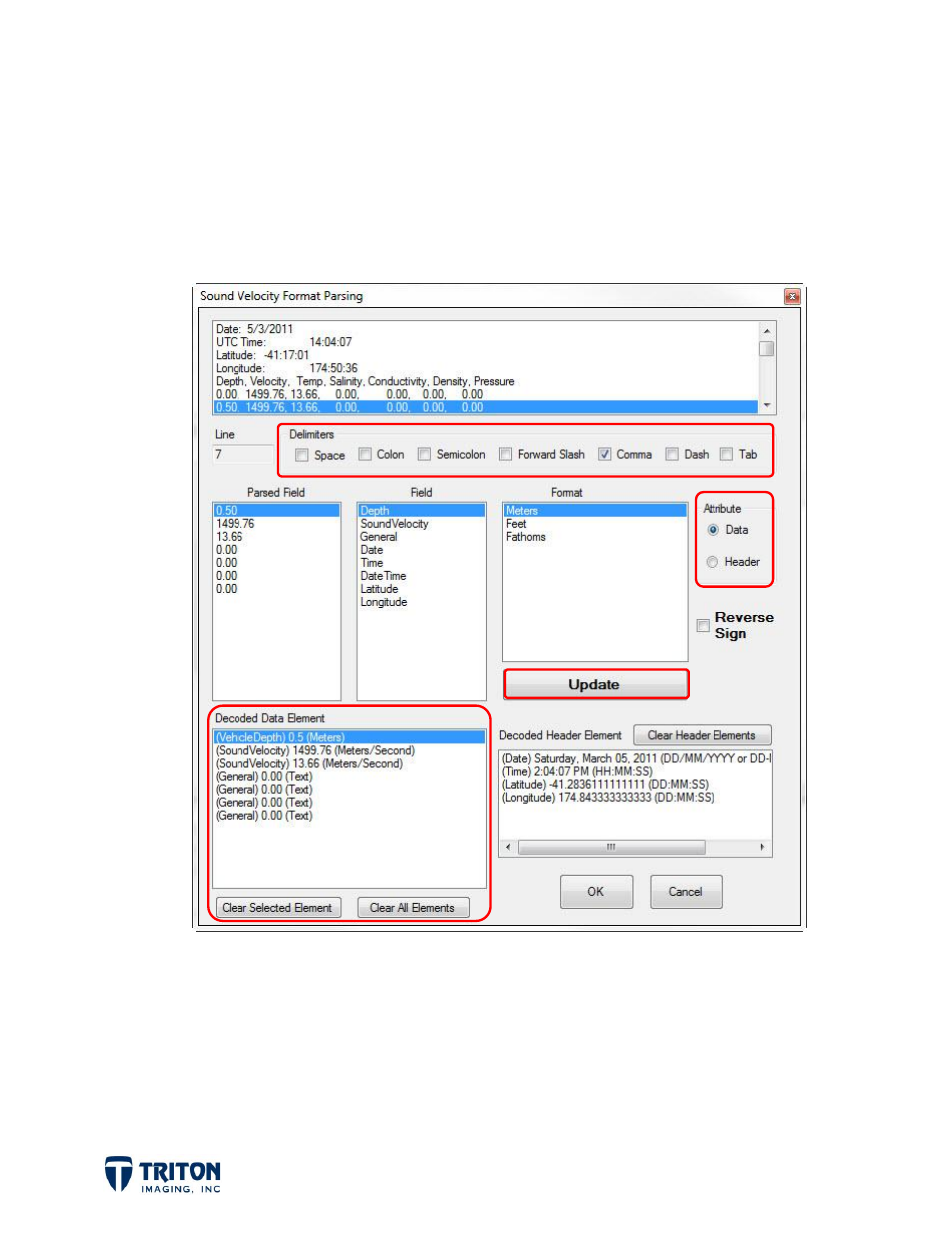

The example shown on the previous page demonstrates how to extract information from
the header rows. The example shown below demonstrates how to parse the data once the
important header information has been defined.

For this data file the only values of interest are the depth value and the corresponding
sound velocity. Before beginning be sure to change the

Attribute

type to

Data.

Highlight

any row in the top section, select the value from the

Parsed Field

section on the left,

indicate what type of value it is in the

Field

section and the format of the value in the

Format

section as shown in the example above, then click

Update

to apply the settings.

The

Decoded Data Element

section in the bottom left corner of the dialog shows the
