Triton Bathymetry User Manual

Page 12

Page 8

To parse the data select any line in the top window, then set the delimiter to

Comma

. Set

the

Attribute

type to

Data,

select the value of interest in the

Parsed Field

section on the

left, indicate what type of value it is in the

Field

section and the format of the value in the

Format

section as shown in the example on the previous page. Once

Update

is clicked the

Decoded Data Element

window will update indicating how the value is being interpreted.

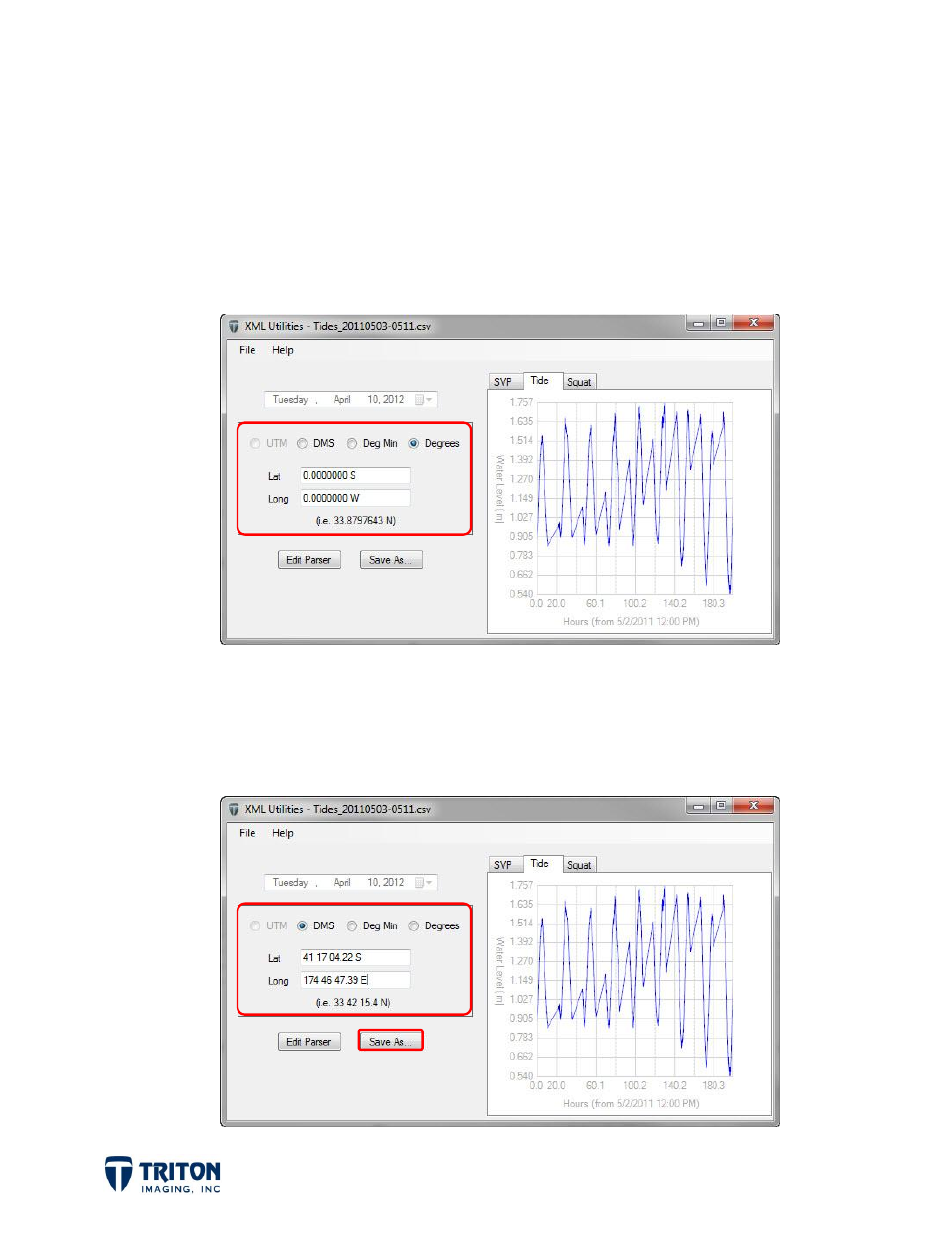

Once the data section is parsed, click on the

button to return to the XML Utilities

dialog as shown below:

For this example, since there was no header information the location of the tide station
has not been automatically entered.

It is important to enter an accurate location for the tide station for removing the tidal
signal from the bathymetry data during processing.
