Triton Bathymetry - Manual (Page 17)

Page 13
5.0 Process
5.1 BathyOne Wizard
The easiest method for launching the bathymetry processing wizard is by
selecting the toolbar button shown right. It is also possible to launch the
processing wizard by right-clicking on the
Bathymetry DTM or Bathymetry CUBE nodes in
the Imagery file tree layer and selecting Create .
Bathymetry processing options are divided into the following several pages in the wizard:
5.1.1 Choose/Create Bathy Layer

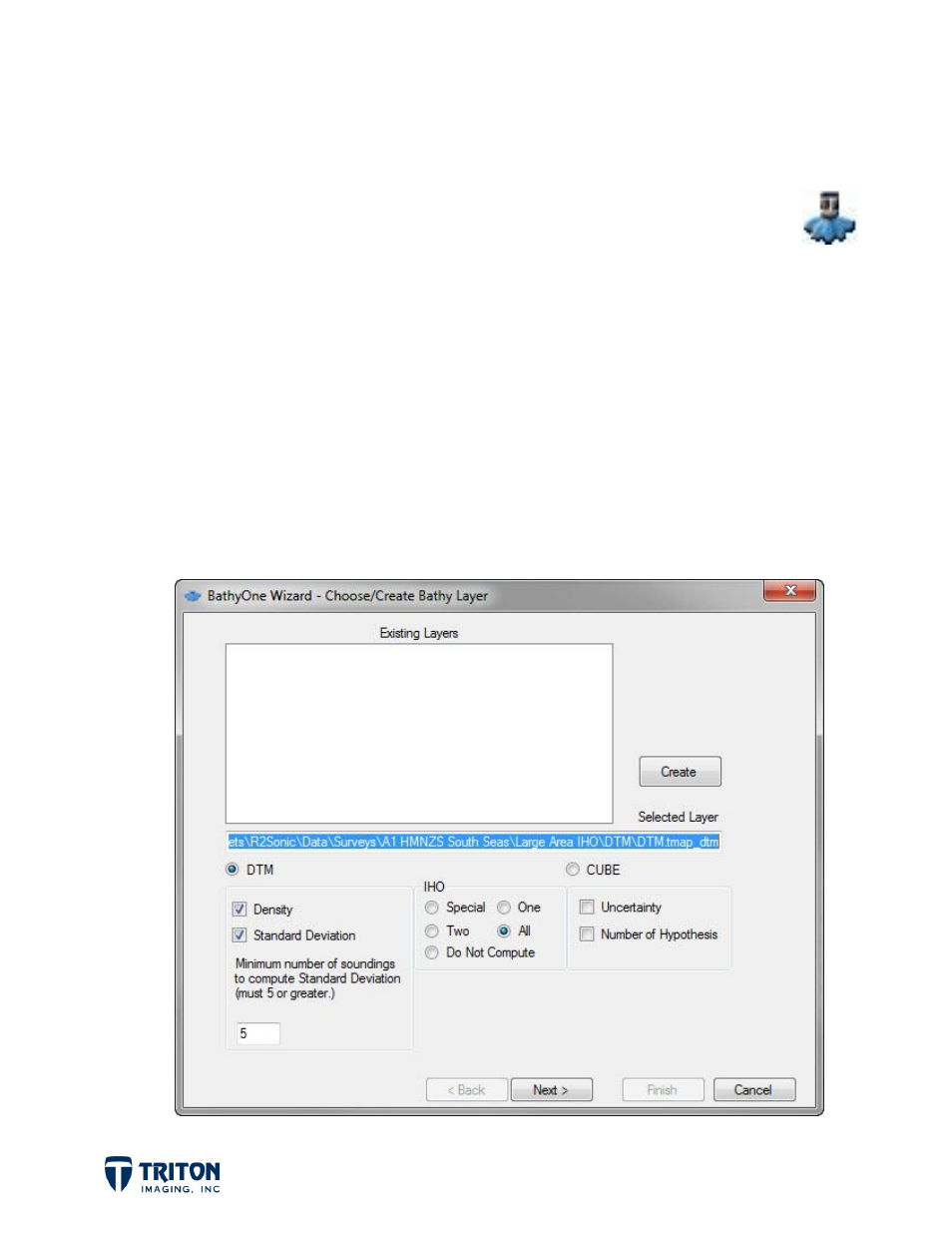

The first page of the BathyOne Wizard is for selecting the gridding method, choosing an
output file name, and selecting which QC layers to produce. In the example below the user
has selected the
Create button to indicate the name and location of the .tmap_dtm grid
file, chosen DTM as the gridding method including density and standard deviation QC
layers plus an IHO layer showing what IHO level each grid cell passes.
