Page 26

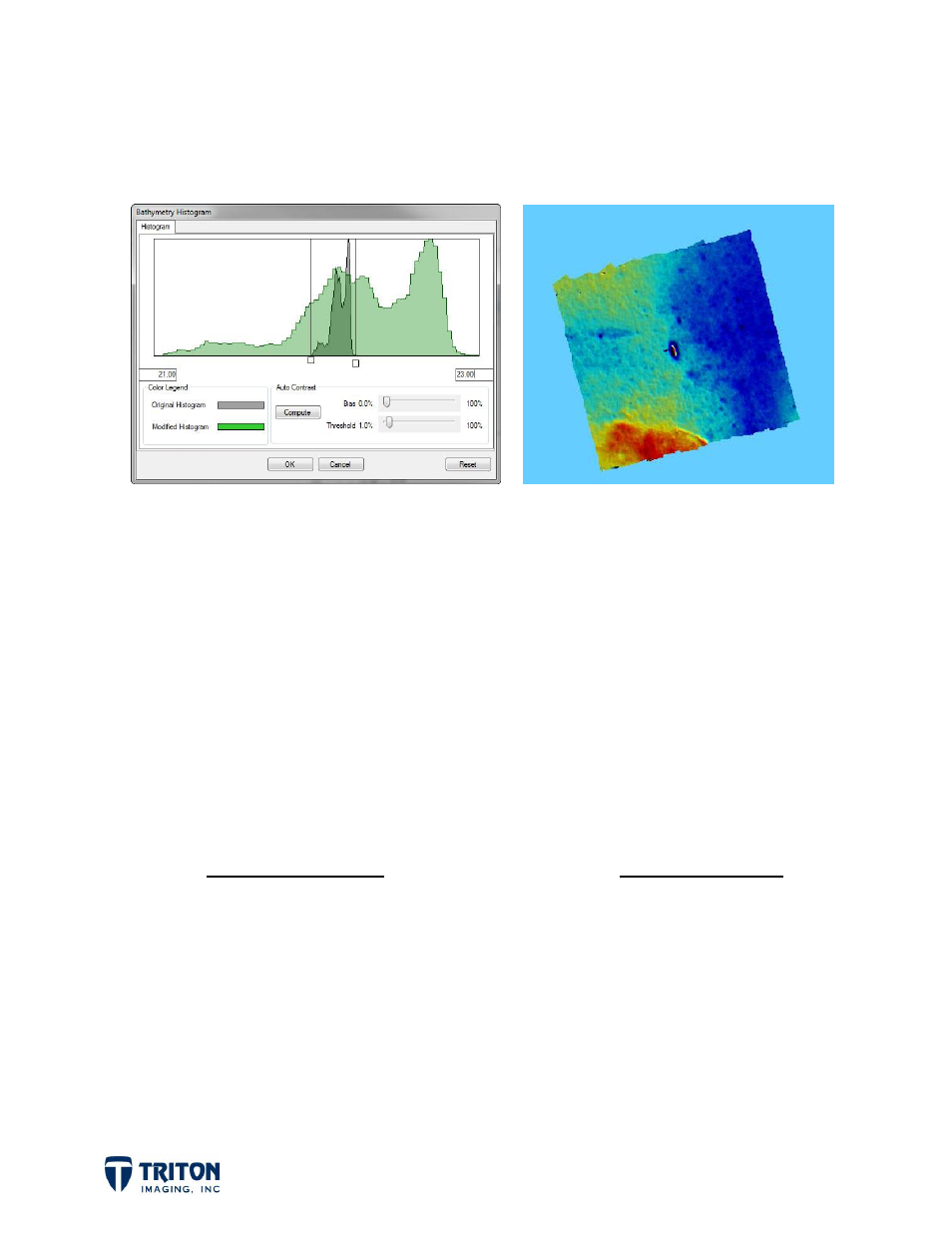

What causes this affect is a combination of the relatively flat seafloor with some low
frequency noise that stretches the data range. Adjusting the
Histogram allows the user
to confine the stretched color palette to a specified range of values as shown below.
Note that the original Histogram stretched the color map from 13.95m to 28.5m while the
revised Histogram was set to range just from 21m to 23m depth.
By combining the relief shading settings with the color options and histogram adjustments,
subtle details in the data can be enhanced for better interpretation.
7.0 Editing
After the sounding data has been gridded, if there was noise in the data that was not
removed by the automatic filters then some manual editing may be necessary. In
Perspective there are two options for manual editing:
2D Swath Editor 3D Area Editor
Works on single line Works on multiple lines
Cursor lock with map position Define area by drawing box in map view
Across-track, along-track and top views 3D view with rotate, zoom and slicing
Can set “designated” soundings Can view “designated” soundings
Use to review all data or select locations Use to review select locations
